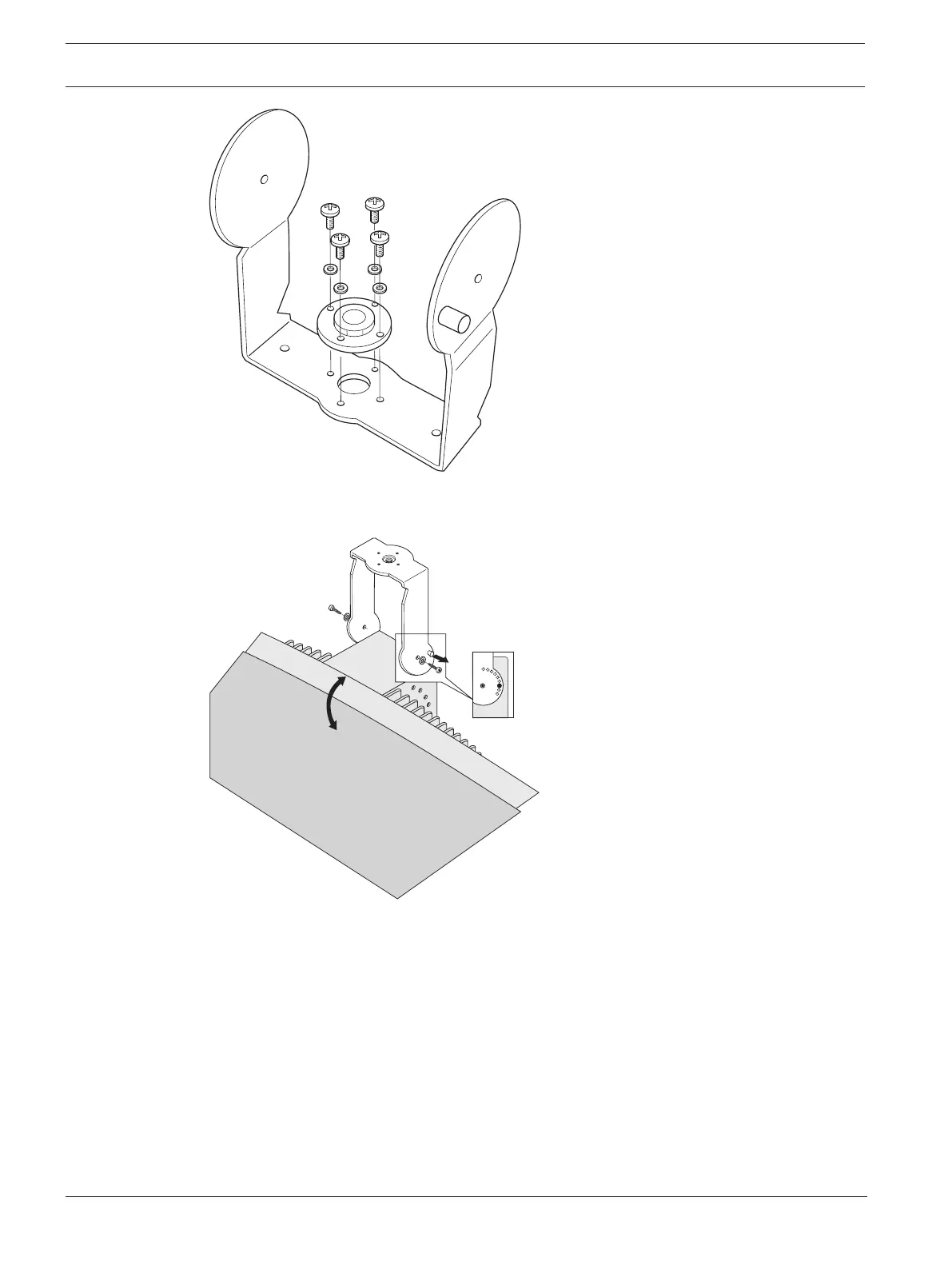

Figure5.3: Attaching the plate to the suspension bracket in case of wall mounting
5.2.2 Attach the suspension bracket
Figure5.4: Attaching the suspension bracket to the radiator
First assemble the supplied suspension bracket and connect it to the radiator (see
section Attach mounting plate to the suspension bracket, page 33 and the figure above. This
bracket is attached to the radiator by two bolts with washers. There are corresponding holes
on the back of the radiators. There is also a spring-loaded plunger (indicated by a black arrow
in the figure above), located above the bolt hole on the right-hand arm of the bracket, which is
used for adjusting the angle of the radiator (shown in inset in the figure above). There are
corresponding holes on the back of the radiator for accepting this plunger. The mounting
angle can be adjusted in steps of 15°.
