4.3.3 Cabling
Signal delay differences can occur due to differences in the cable length from the transmitter
to each radiator. In order to minimize the risk of black spots, use equal cable length from
transmitter to radiator if possible (see the next figure).
50m
50m
50m
50m

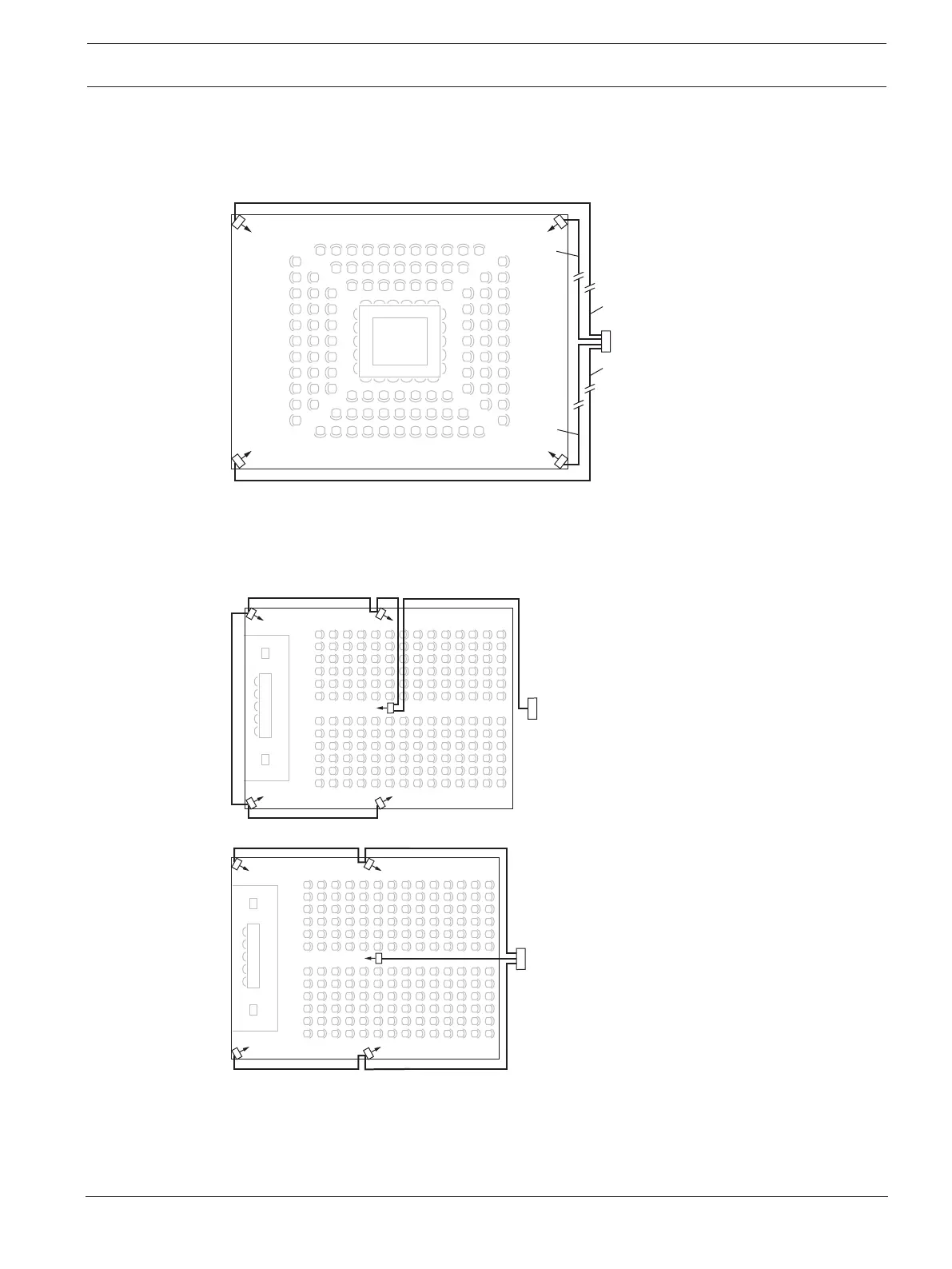

Figure4.21: Radiators with equal cable length
When radiators are loop-through connected, the cabling between each radiator and the
transmitter should be as symmetrical as possible (see the next two figures). The differences in
cable signal delays can be compensated with the signal delay compensation switches on the
radiators.
Figure4.22: Asymmetrical arrangement of radiator cabling (to be avoided)
Figure4.23: Symmetrical arrangement of radiator cabling (recommended)
