6.2 Connect to another transmitter

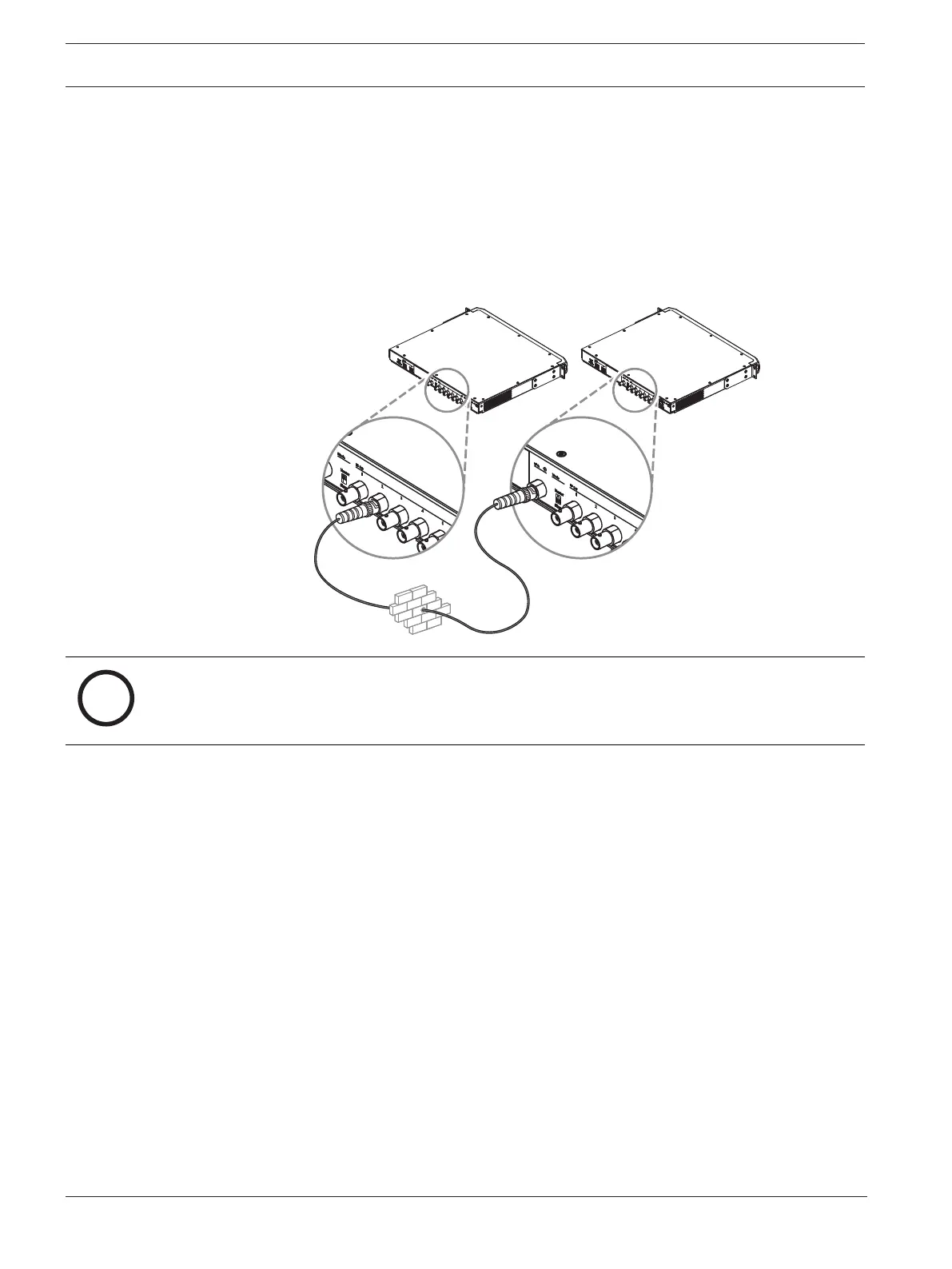

The transmitter can be operated in slave mode to loop-through the IR radiator signals from a
master transmitter. One of the four radiator outputs of the master transmitter is connected
with an RG59 cable to the radiator signal loop-through input of the slave transmitter.
To change the transmission mode of the INT-TXO, set the switch on the back of the INT-TXO to
Slave.
MASTER SLAVE
i
Notice!
The coaxial cable between the master and the slave transmitter cannot be longer than 10m.
