6 Connection
This section gives an overview of typical power and system connections using the INT‑TXO
Transmitter OMNEO.
6.1 Power the Transmitter OMNEO
The INT-TXO can be powered in three different ways:
– Directly to the DICENTIS Conference system
– To a PoE output of a network switch
– To a normal output of a network switch, in which case the adapter will power the
transmitter.

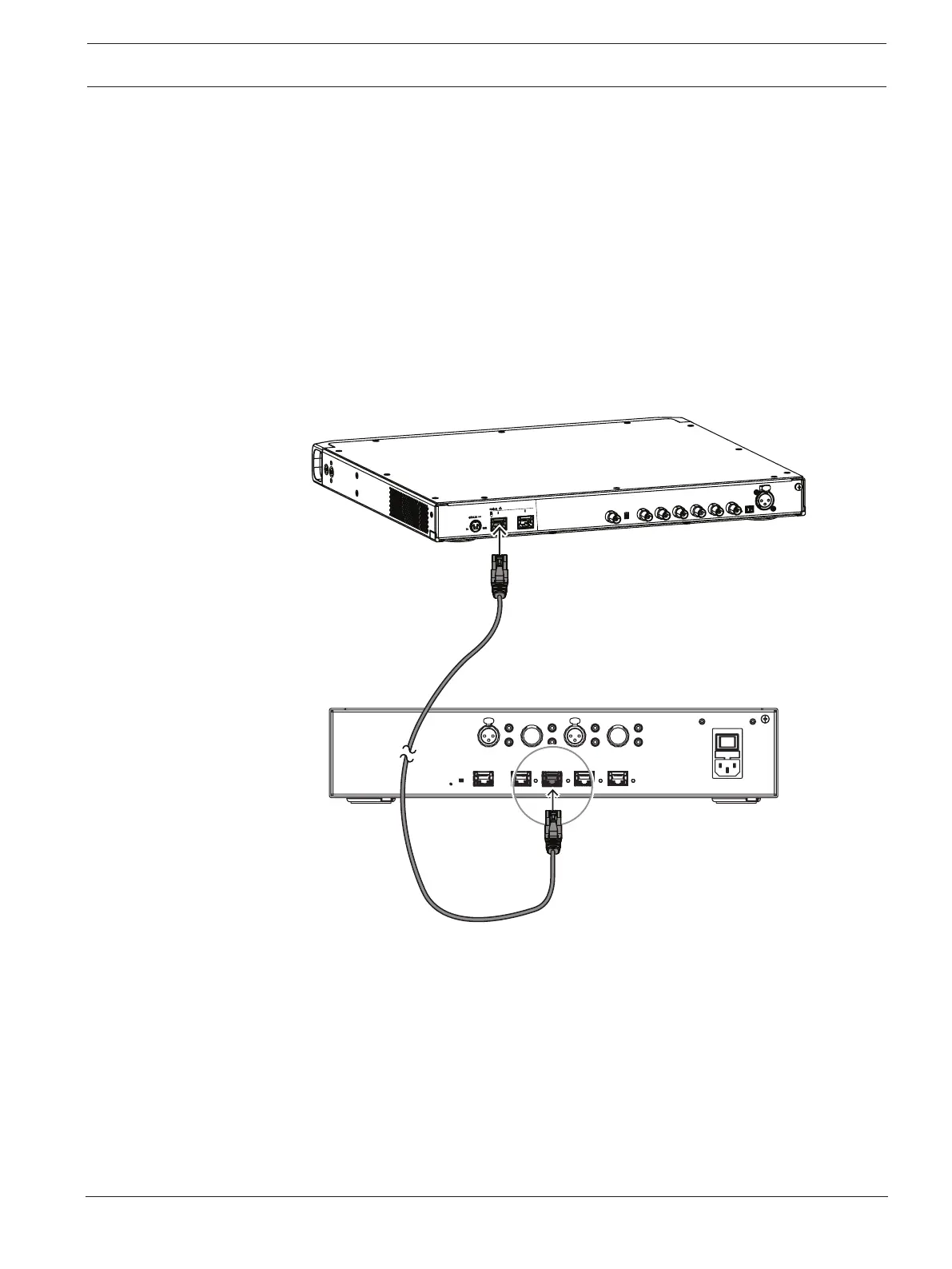

Connect to DICENTIS Conference System
You need to connect the INT-TXO to the high power output of the DCNM-APS2 (Audio
processor and powering switch), or of the DCNM-PS2 (Powering switch). Use the other output
of the transmitter to connect it to participant devices to optimize the power supply of the
switches.
