– Mount the radiator on top of a horizontal surface. See Mount radiator on horizontal
surfaces, page 37
4. Secure the radiator with a safety cord. See Secure the radiator with safety cord.
Refer to
– Attach mounting plate to the suspension bracket, page 33
– Attach the suspension bracket, page 34
– Mount radiator on a floor stand, page 35
– Mount radiator on a ceiling, page 36
– Mount radiator on horizontal surfaces, page 37
5.2.1 Attach mounting plate to the suspension bracket
In case of mounting on a floor stand and wall mounting, it is necessary to attach a mounting
plate to the suspension bracket.
The place of the mounting plate depends on the intended type of mounting.
– Refer to Mount radiator on a floor stand, page 35 in case of mounting on a floor stand.
– Refer to Mount radiator on a wall, page 35 in case of wall mounting.

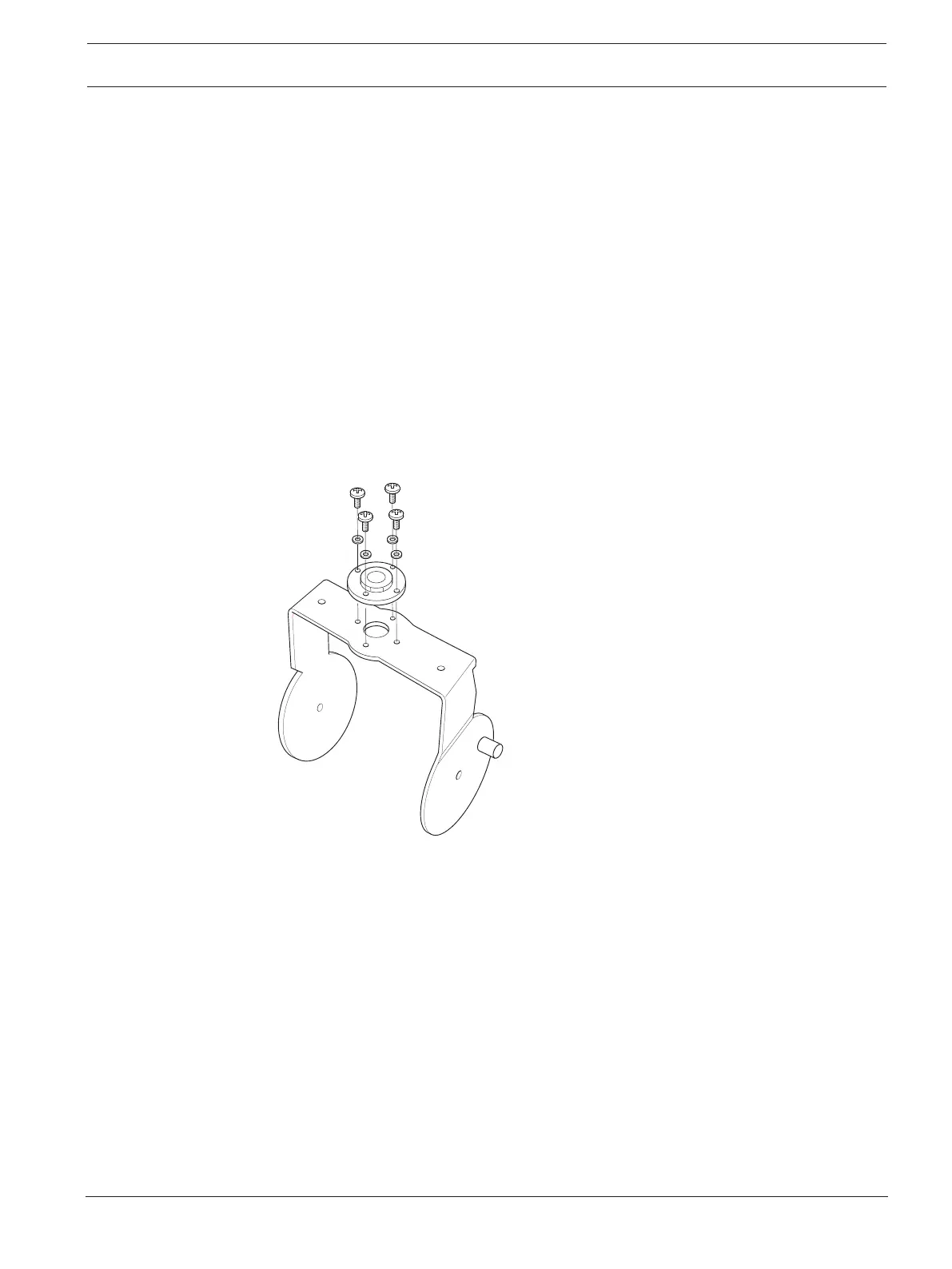

Figure5.2: Attaching the plate to the suspension bracket in case of mounting on a floor stand
