– LBB4560/50 Charger cabinet for 56x LBB4540 for permanent systems. Suitable for either
tabletop or wall-mounted use.
1
2
3

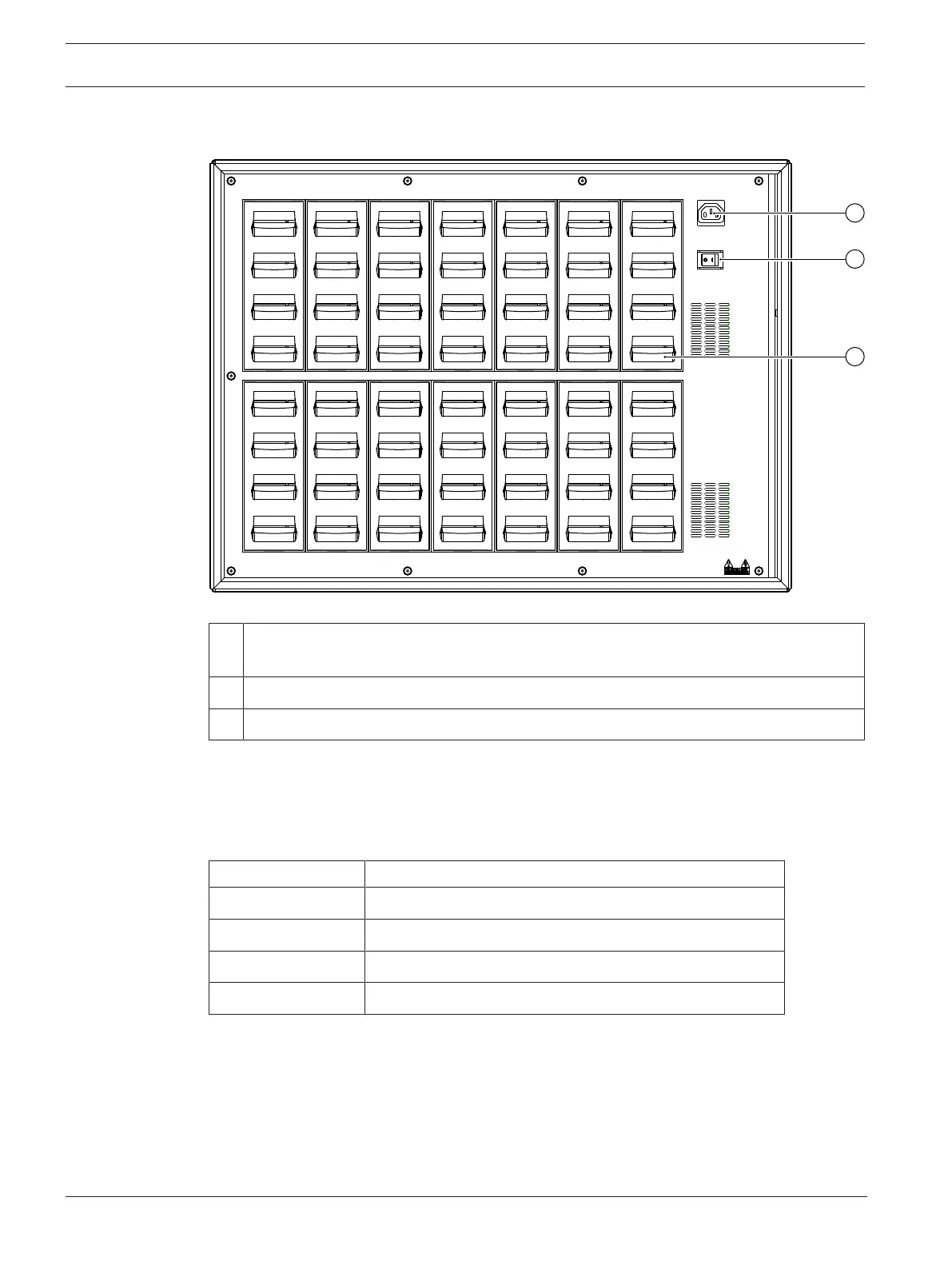

Figure3.2: LBB4560 Charging unit
1 Mains input: Male Euro mains socket. The charging unit has automatic mains voltage
selection. A mains cable is provided.
2 Mains on/off switch
3 Receiver positions: One charging unit can charge up to 56 receivers simultaneously.
Make sure that the charging unit is connected to the mains and that it is switched on. Place
the receivers firmly in the charging compartments. The charging indicator on the power on/off
button of all receivers should turn on. The indicator shows the charging status of each
receiver:
LED color Charging status
Green Charging completed.
Red Charging in progress.
Red blinking Error status.
Off Charger switched off or receiver not properly inserted.
