3. Measure the impulse response time (in ns) of the cable(s) between the transmitter and
the radiator.
4. Reconnect the cable to the radiator and repeat steps 2 to 4 for the other radiators that
are connected to the same transmitter output.
5. Reconnect the cable t the transmitter and repeat step 1 to 5 for the other radiator
outputs of the transmitter.
6. Divide the impulse response times for each radiator by two. These are the cable signal
delays for each radiator.
7. Determine the maximum signal delay.
8. Calculate for each radiator the signal delay difference with the maximum signal delay.
9. Divide the signal delay difference by 33. The rounded off figure is the delay switch
position for that radiator.
10. Add delay switch positions to radiators under a balcony, if applicable (see section
Systems with more than 4 carriers and a radiator under a balcony, page 50 )
11. Set the delay switches to the calculated delay switch positions.
!
Caution!
Turn the delay switches carefully to a new position until you feel that it clicks into position, to
prevent that a switch is positioned between two numbers, which would result in a wrong
delay setting.

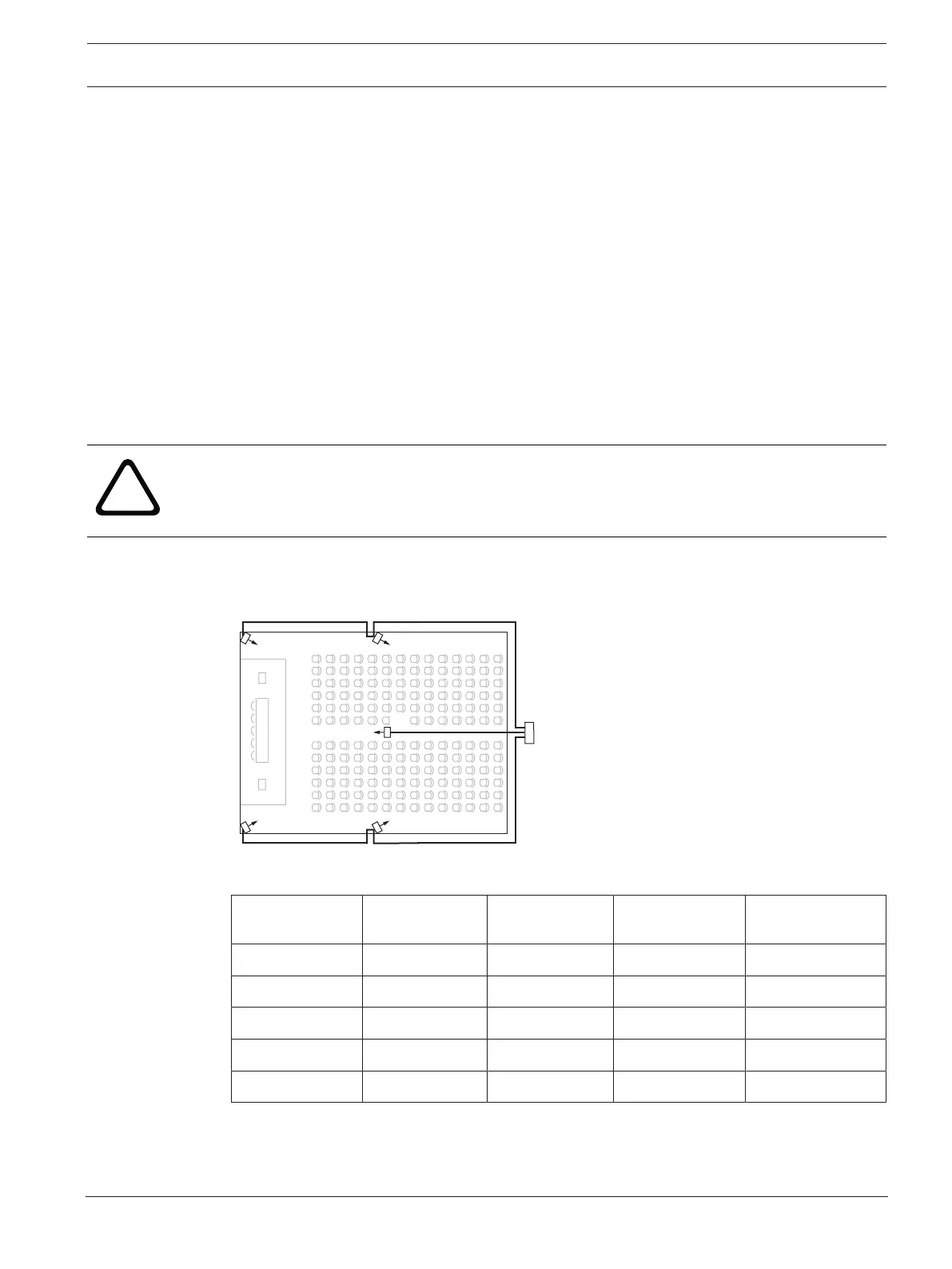

The next figure and table illustrate the calculation of the signal delays and the delay switch
positions.
584 ns 350 ns
563 ns 339 ns
R2
R5 R4
237 ns
R1
R3
Figure7.3: System with five radiators and measured impulse response times
Radiator number Impulse res-
ponse time [ns]
Cable signal
delay [ns]
Signal delay
difference [ns]
Delay switch
position
1 350 350/2=175 292-175=117 117/33=3.64=4
2 584 584/2=292 292-292=0 0/33=0
3 237 237/2=118 292-118=174 174/33=5.27=5
4 339 339/2=169 292-169=123 123/33=3.73=4
5 563 573/2=281 292-281=11 11/33=0.33=0
Table7.2: Calculation of the delay switch positions of a system with one transmitter
