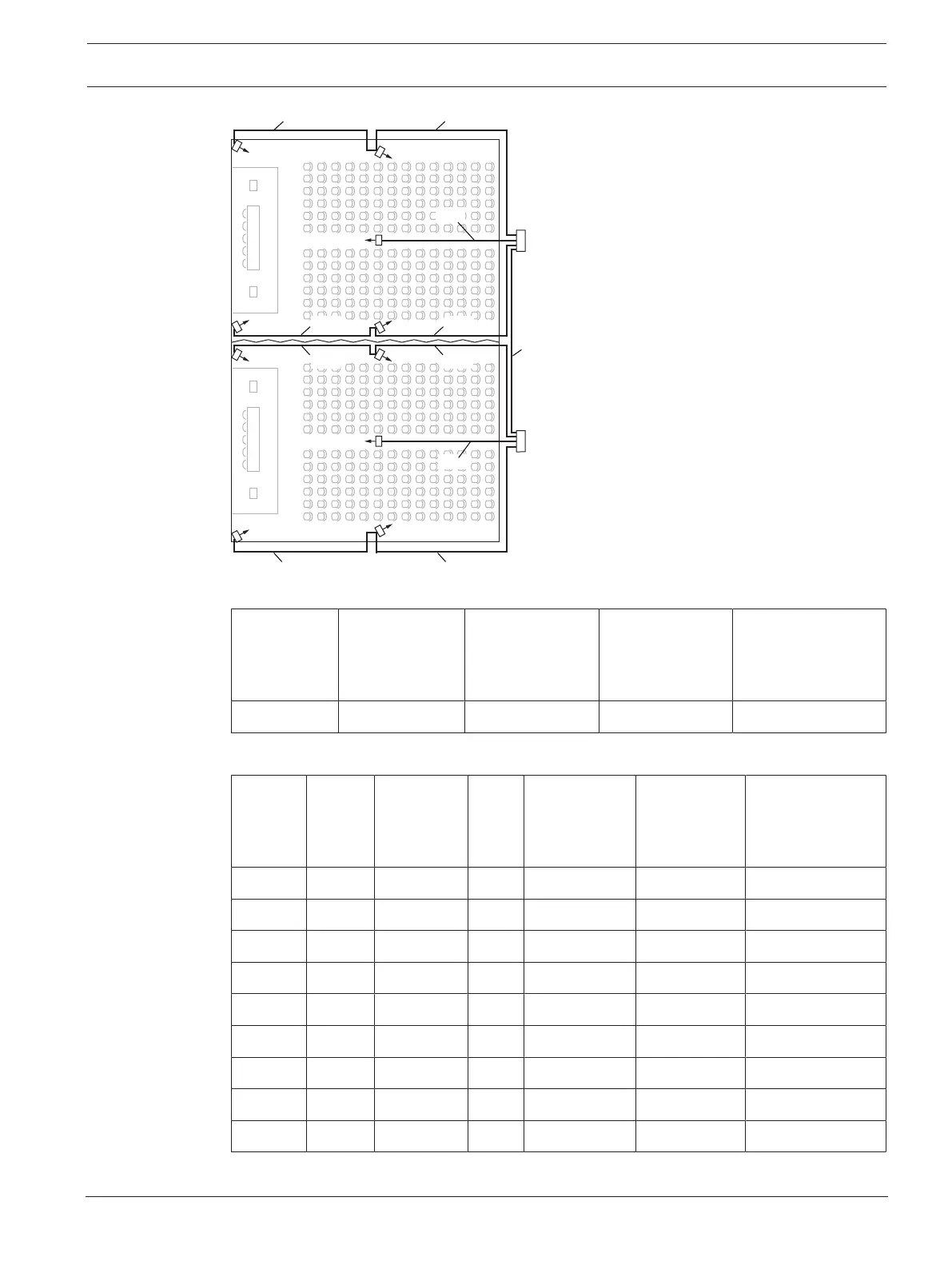

Figure7.4: System with master and slave transmitter in multi purpose room
Cable length
master-slave
transmitter
[m]
Cable signal
delay per meter
[ns/m]
Cable signal delay
[ns]
Signal delay slave
transmitter [ns]
Master-to-slave
signal delay [ns]
50 5.6 50x5.6=280 33 280+33=313
Table7.3: Calculation of the master-to-slave signal delays
Radiator
number
Trans-
mitter
Master-to-
slave signal
delay [ns]
Cable
signal
delay
[ns]
Total signal
delay [ns]
Signal delay
difference
[ns]
Delay switch
position
1 Master 0 168 0+168=168 593-168=425 425/33=12.88=13
2 Master 0 280 0+280=280 593-280=313 313/33=9.48=9
3 Master 0 112 0+112=112 593-112=481 481/33=14.58=15
4 Master 0 168 0+168=168 593-168=425 425/33=12.88=13
5 Master 0 280 0+280=280 593-280=313 313/33=9.48=9
6 Slave 313 168 313+168=481 593-481=112 112/33=3.39=3
7 Slave 313 280 313+280=593 593-593=0 0/33=0
8 Slave 313 112 313+112=425 593-425=168 168/33=5.09=5
9 Slave 313 168 313+168=481 593-481=112 112/33=3.39=3
