Bosch MSM019A - Page 24

Designation Symbol Unit Holding brake 1 (MSM019)
Holding torque
M
4
Nm 0.29
Rated voltage
1)
U
N
V 24 ±1.2
Rated current
I
N
A 0.30
Maximum connection time
t
1
ms 20
Maximum disconnection time
t
2
ms 35
Moment of inertia of the holding brake
J
br
kg*m
2
0.0000002
Switching cycles within standstill 2 Mio
Latest amendment: 2019-02-14
Tab. 5-3: MSM019 Holding brakes - Technical data (optional)
*) maximum permitted nominal line voltage 3x 230V

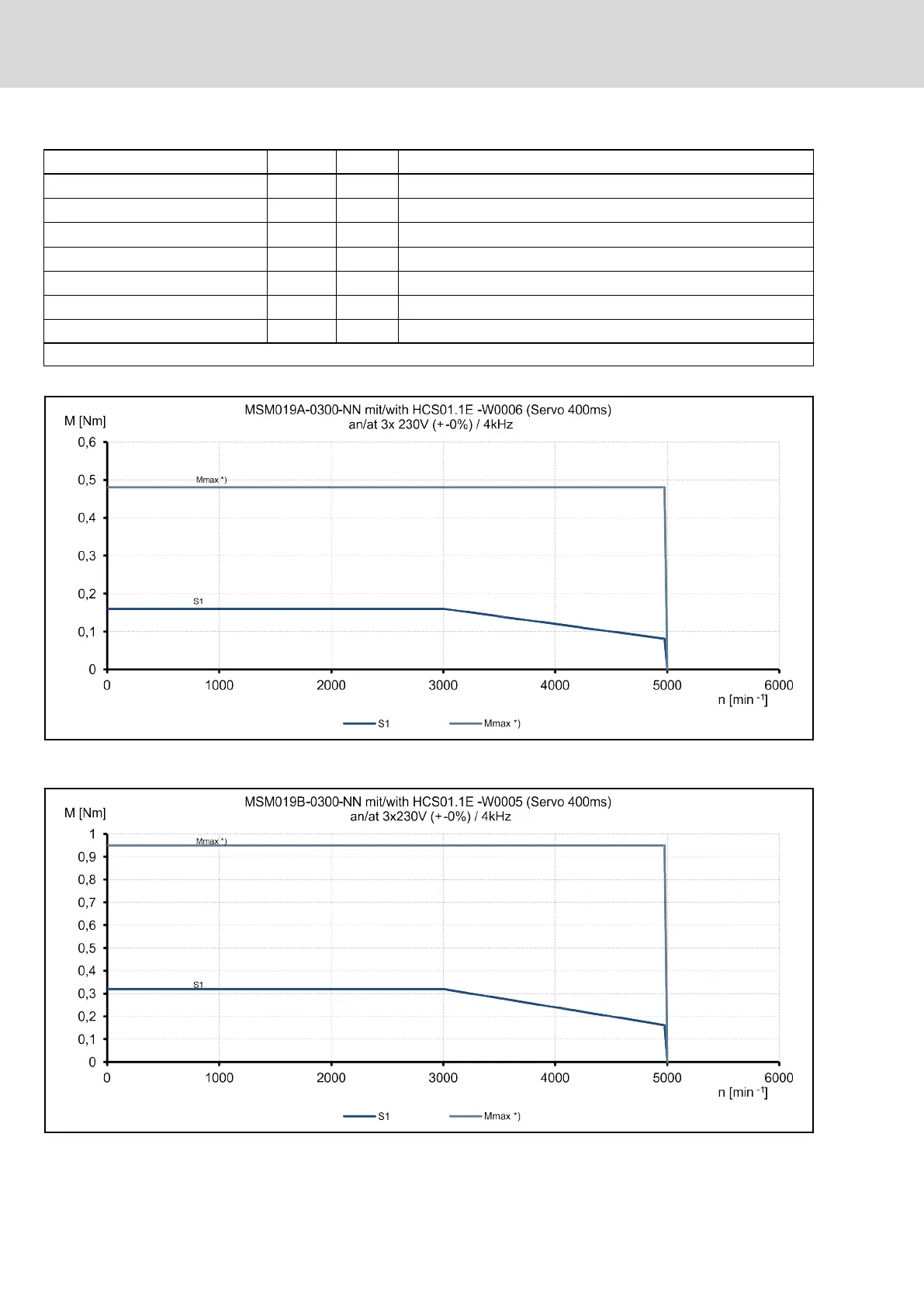

Fig. 5-2: Speed-torque characteristic curves
*) maximum permitted nominal line voltage 3x 230V
Fig. 5-3: Speed-torque characteristic curves
