PROFINET IO

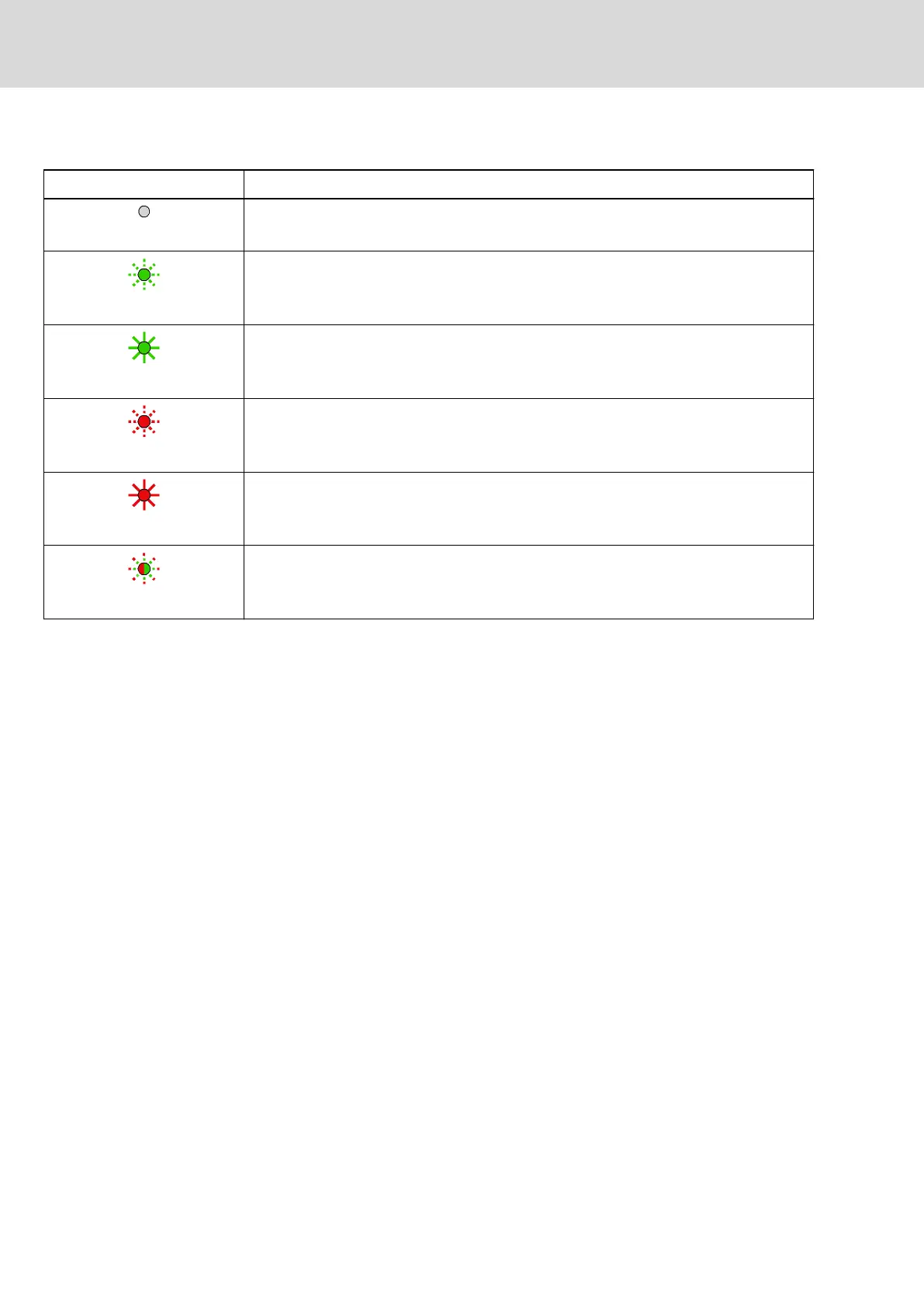

LED: Color / flashing pattern Significance
Off
The device does not have a valid IP address or has been switched off.
Flashing green
The device has run up with a valid IP address, but does not have a cyclic connection.
Permanently lit green
The I/O connection has been established without error.
Flashing red
The existing I/O connection was unexpectedly aborted (e.g., watchdog).
Permanently lit red
The "Duplicate-IP-Adress-Check" showed that the IP address which was set already exists
in the network.
Flashing red-green
The device is running up and carries out a self test.
Tab. 8-21: Diagnostic LED
Bosch Rexroth AG DOK-INDRV*-CXX02******-PR03-EN-P110/143
IndraDrive Control Sections CSB02, CSE02, CSH02, CDB02
Technical data - functions
