8.2 EM - Encoder emulation
8.2.1
Cables
Data Symbol Unit max.
Length (shielded cable)
l
shield
m 40
Length (unshielded cable)
l
unshield
m 30
Capacitance C pF/m 60
Tab. 8-8: Cables
8.2.2 Incremental encoder emulation
Connection

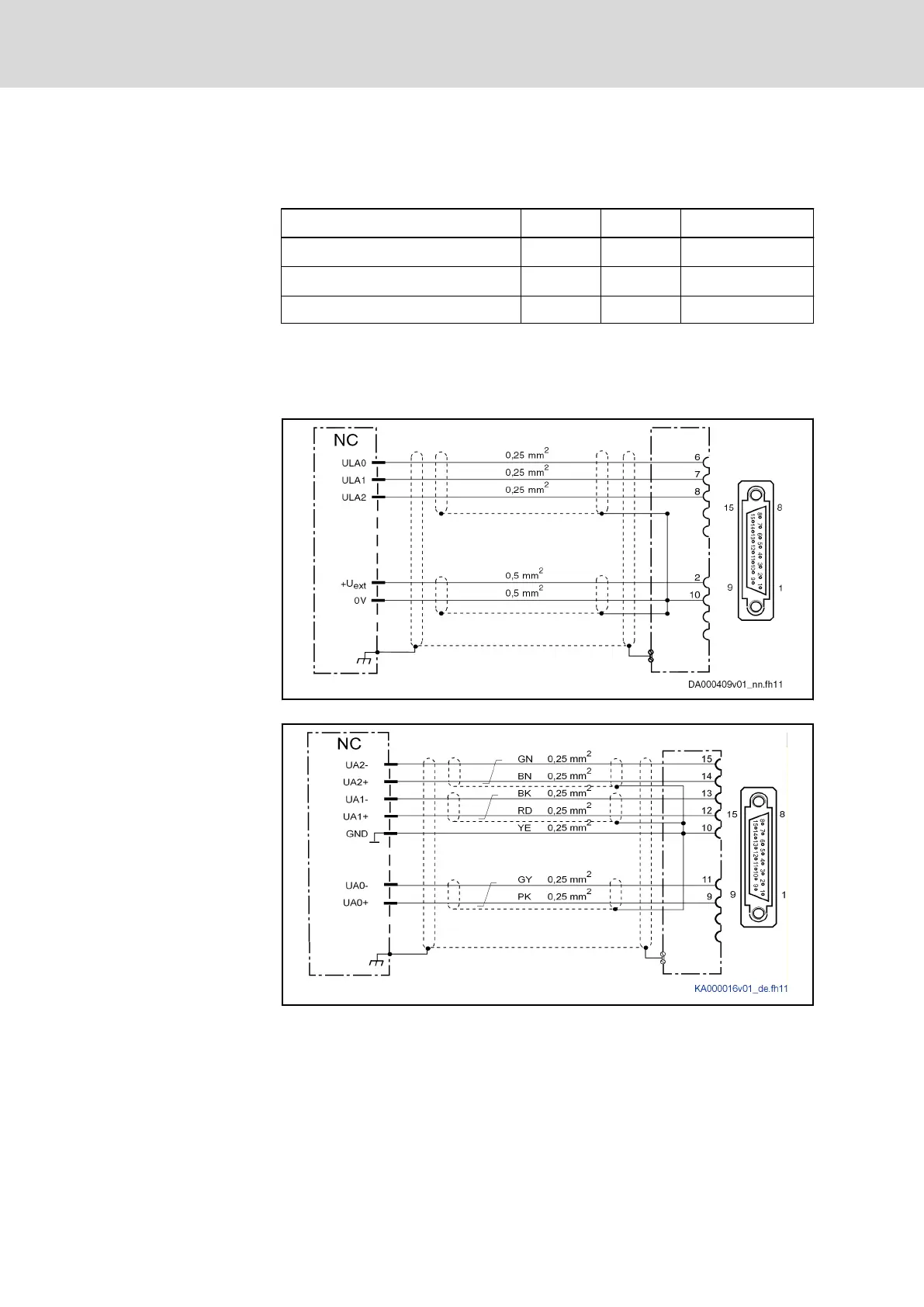

Fig. 8-19: Incremental encoder with signal level conversion (single-ended)
Fig. 8-20: Incremental encoder (RS422)
Bosch Rexroth AG DOK-INDRV*-CXX02******-PR03-EN-P100/143
IndraDrive Control Sections CSB02, CSE02, CSH02, CDB02
Technical data - functions
