36 / 72
MS2N
Electrical connection
Bosch Rexr
oth A
G
R911347581, Edition 05

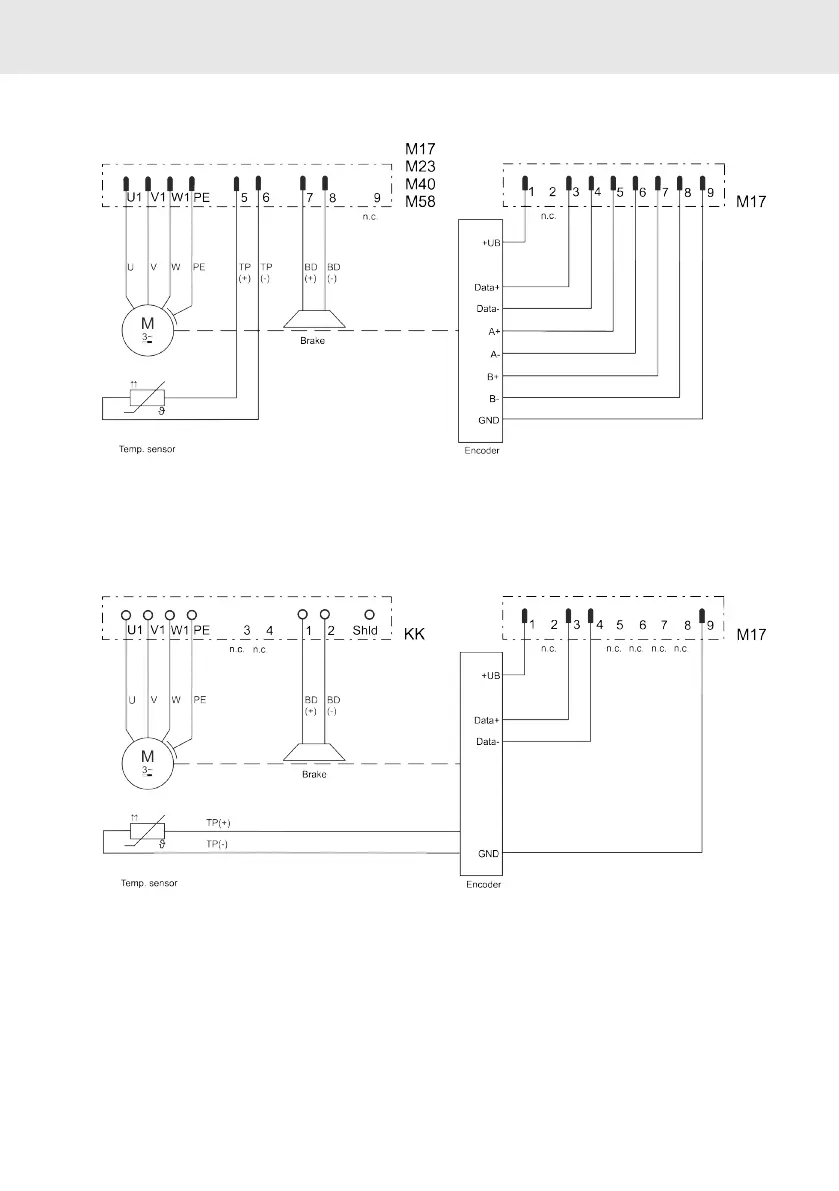

Double cable connection for MS2N with encoder (analog A, B) and optional brak
e
Fig. 13: Double cable connection, analog encoder A, brak
e optional
Double cable connection terminal bo
x for MS2N with encoder (digital C, D, H) and optional
brake
Fig. 14: Double cable connection terminal bo
xes, digital encoder C and D, brake optional
35
37
