MS2N
Electrical connection
Bosch Rexroth AG
R911347581, Edition 05
Double cable connection terminal box for MS2N with encoder (analog A, B) and optional
brake

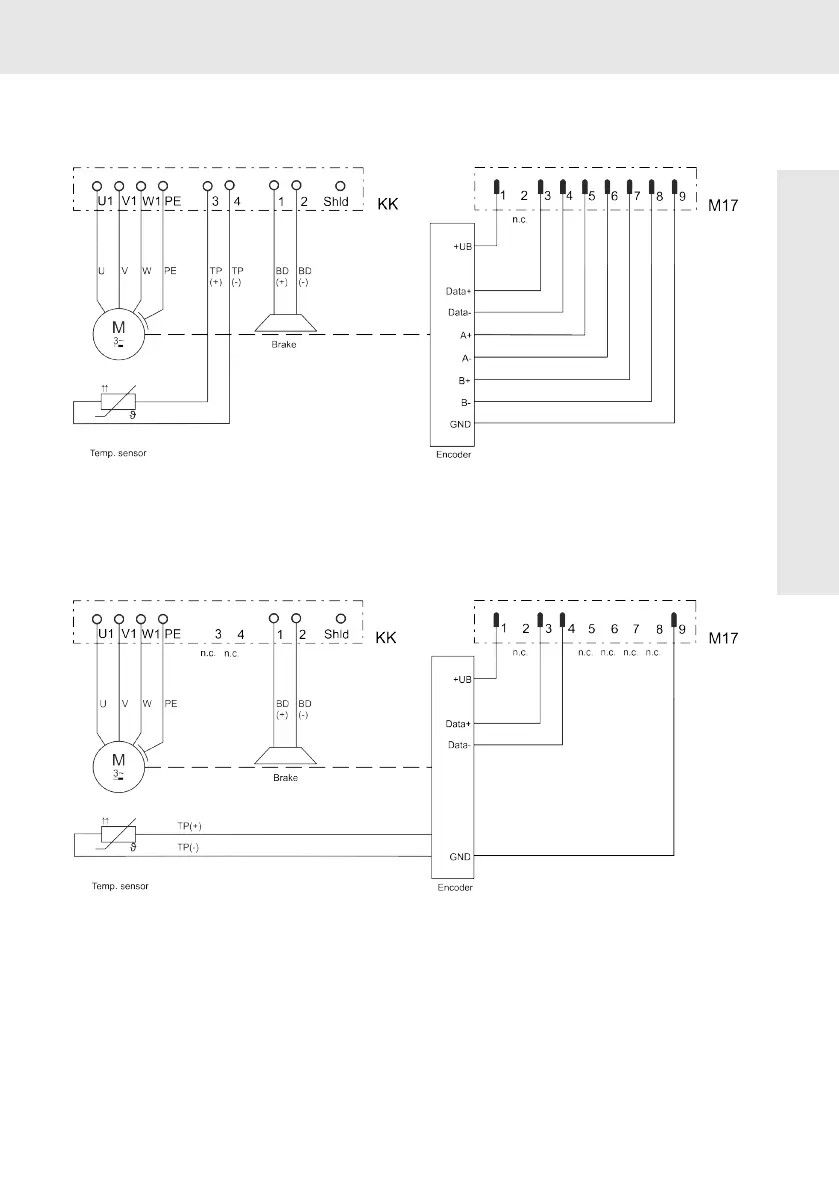

Fig. 15: Double cable connection terminal boxes, analog encoder A, brake optional
Double cable connection terminal box for MS2N with encoder (digital C, D, H) and optional
brake
Fig. 16: Double cable connection terminal boxes, digital encoder C and D, brake optional
Assembly
