12.3 Handling
Injuries due to improper handling during
transport of motors!
Do only use suitable lifting devices (e.g. lifting sling belts, eyebolts, chain sus‐
pension ...).
Use protective equipment and personal protective clothing (gloves, safety
shoes, ...).
Never walk under hanging loads.
Damage of property and invalidation of the
warranty due to incorrect storage!
Store the motors horizontally in their original packaging in a dust-free, dry, vi‐
bration-free and sun-protected environment.
Observe the storage and transport instructions on the package.
Handling
On delivery, MSK motors are protected by shaft protection and covers. Cov‐
ers and shaft protection must remain on the motor during transport and stor‐
age.
● Do not remove covers and shaft protection until immediately before in‐
stallation.
● Use covers and shaft protection also when returning goods.
● Avoid damage to the motor flange and drive shaft.
① Cable connector cover
② Encoder connector cover
③ Shaft protection

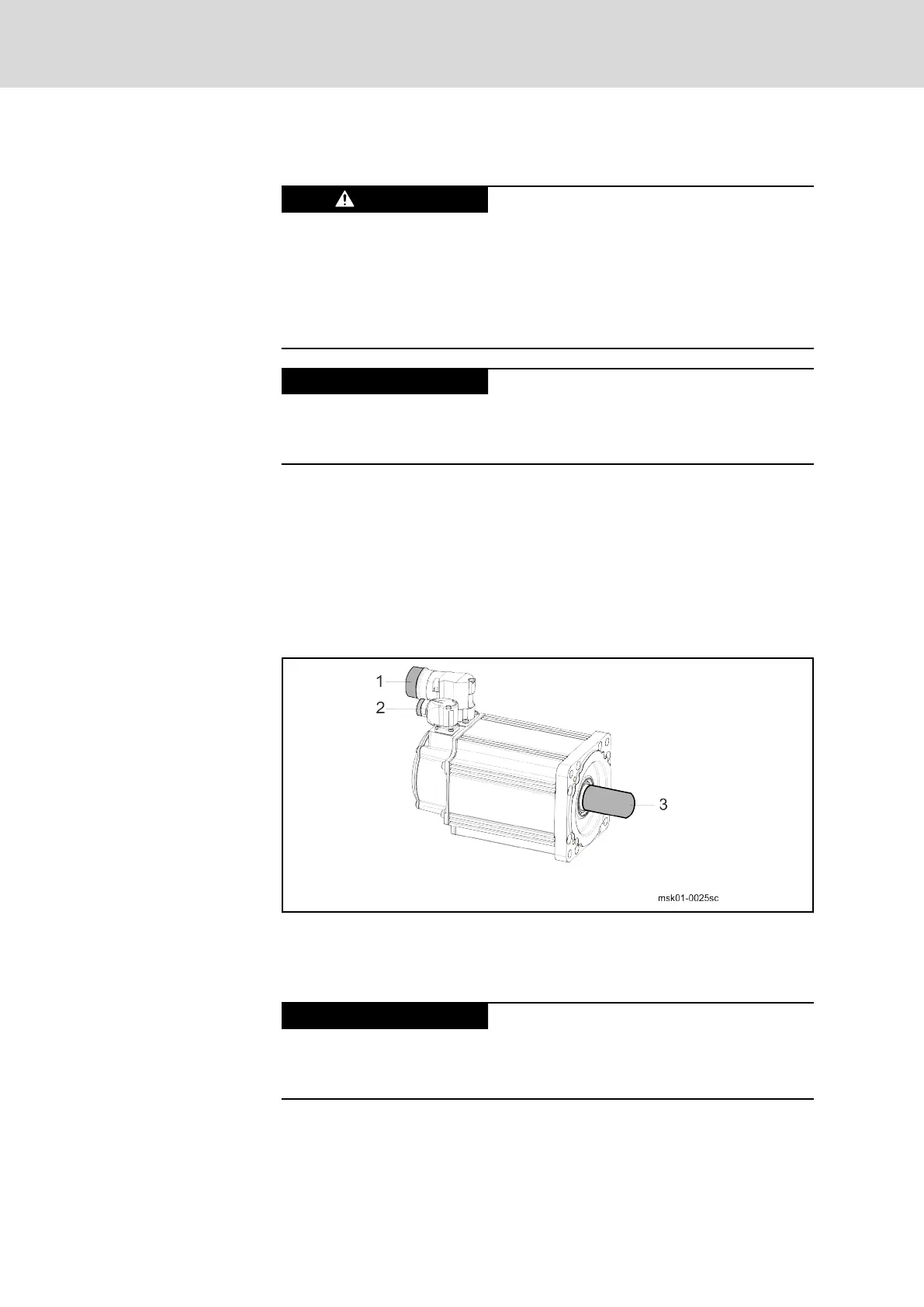

Fig. 12-2: Covers and shaft protection
Motor damage due to beats onto the motor
shaft
Do never beat onto the shaft end and do not exceed the allowed axial and
radial forces of the motor.
Transport
Observe the following points during transport:
Bosch Rexroth AG DOK-MOTOR*-MSK*EXGIIK3-PR09-EN-P148/175
Synchronous Servomotors MSK For Potentially Explosive Areas
Delivery condition, identification, handling
