Bosch Rexroth MSK - 5.18 MSK070 E-...-NSNN Technical data

5.18 MSK070E-...-NSNN Technical data
Designation Symbol Unit MSK070E-0150-NN MSK070E-0300-NN MSK070E-0450-NN
Continuous torque at standstill 60 K
M
0_60
Nm 23.0
Continuous current at standstill 60 K
I
0_60(eff)
A 6.4 15.4 19.3
Maximum torque
M
max
Nm 70.0 65.0 60.0
Maximum current
I
max(eff)
A 25.6 49.3 57.9
Torque constant at 20 °C
K
M_N
Nm/A 3.94 1.64 1.31
Voltage constant at 20 °C
1)
K
EMK_1000
V/1000
min-1
242.4 101.0 80.6
Winding resistance at 20 °C
R
12
Ohm 3.1 0.53 0.36
Winding inductance
L
12
mH 24.5 3.9 2.7
Leakage capacitance of the compo‐
nent
C
dis
nF 6.3 3.5 6.7
Number of pole pairs p - 6
Moment of inertia of rotor
J
red
kg*m
2
0.00458
Thermal time constant
T
th
min 32.0
Maximum speed (electric)
n
max el
min
-1
2200 5300 6000
Sound pressure level
L
P
dB[A] Less than 75
Mass
2)
m kg 16.2 (17.8)
Ambient temperature during operation
T
amb
°C 0 ... 40
Protection class (EN 60034‑5) - - IP65
Thermal class (EN 60034‑1) T.CL. - 155
Last amended: 2014-01-21
1) Manufacturing tolerance ±5%
2) (...) Motors with holding brake 1, 2, ...

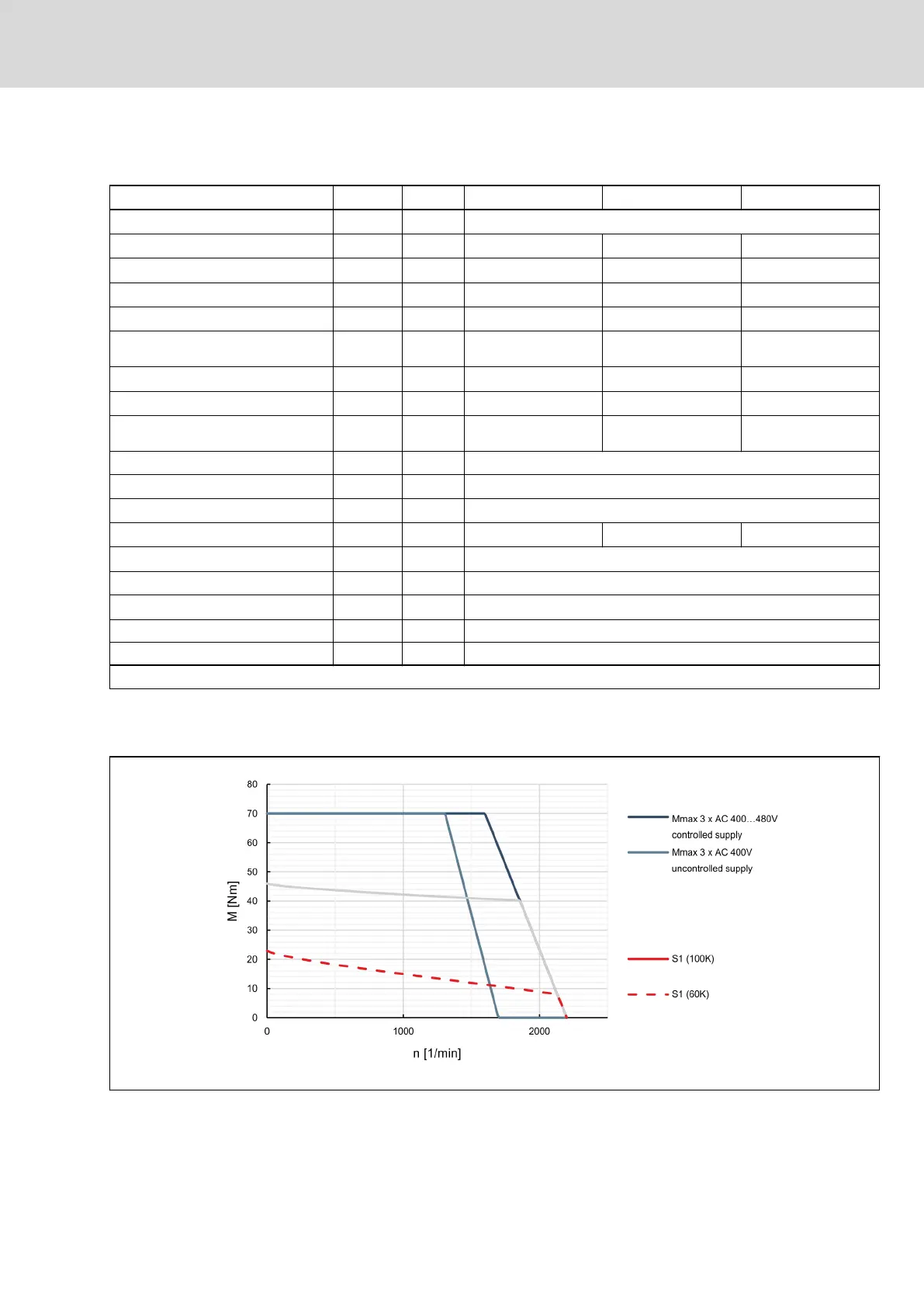

Tab. 5-43: Technical data MSK070E-...-NSNN
Tab. 5-44: Technical data MSK070E-0150-__-__-___-_S__
DOK-MOTOR*-MSK*EXGIIK3-PR09-EN-P Bosch Rexroth AG 59/175
Synchronous Servomotors MSK For Potentially Explosive Areas
Technical data
