Bosch Rexroth MSK - 5.24 MSK100 C-...-NSNN Technical data

5.24 MSK100C-...-NSNN Technical data
Designation Symbol Unit MSK101C-0200-NN MSK101C-0301-NN
Continuous torque at standstill 60 K
M
0_60
Nm 32.0
Continuous current at standstill 60 K
I
0_60(eff)
A 14.9 18.7
Maximum torque
M
max
Nm 110.0
Maximum current
I
max(eff)
A 67.1 84.2
Torque constant at 20 °C
K
M_N
Nm/A 2.37 1.88
Voltage constant at 20 °C
1)
K
EMK_1000
V/1000
min-1
146.0 115.7
Winding resistance at 20 °C
R
12
Ohm 0.68 0.45
Winding inductance
L
12
mH 9.7 6.0
Leakage capacitance of the compo‐
nent
C
dis
nF 6.2
Number of pole pairs p - 4
Moment of inertia of rotor
J
red
kg*m
2
0.00650
Thermal time constant
T
th
min 36.0 38.0
Maximum speed (electric)
n
max el
min
-1
3300 4000
Sound pressure level
L
P
dB[A] < 75
Mass
2)
m kg 28.3 (32.1)
Ambient temperature during operation
T
amb
°C 0 ... 40
Protection class (EN 60034‑5) - - IP65
Thermal class (EN 60034‑1) T.CL. - 155
Last amended: 2014-01-21
1) Manufacturing tolerance ±5%
2) (...) Motors with holding brake 1, 2, ...
Tab. 5-68: Technical data MSK100C-...-NSNN

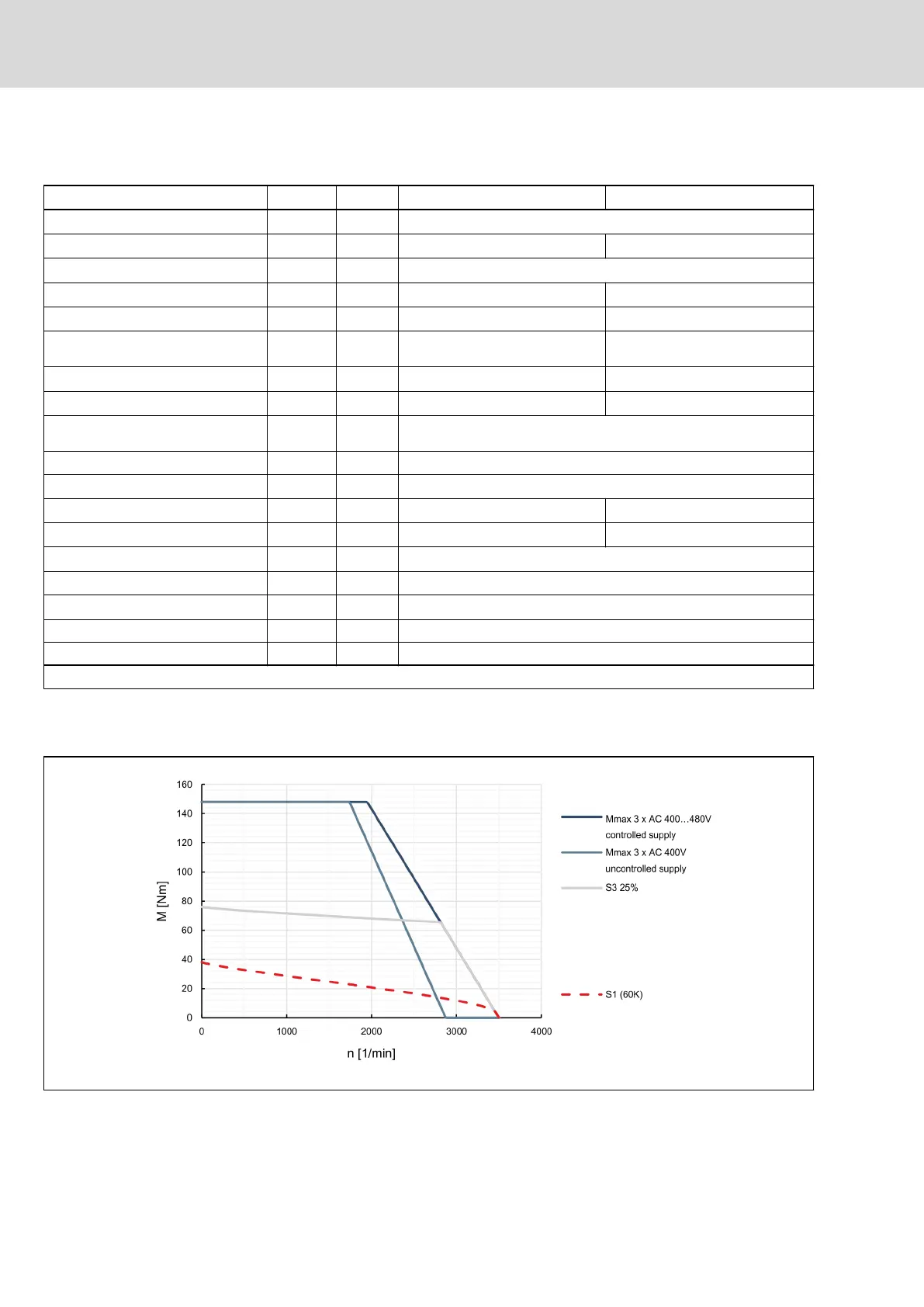

Tab. 5-69: Technical data MSK100C-0200-__-__-___-_S__
Bosch Rexroth AG DOK-MOTOR*-MSK*EXGIIK3-PR09-EN-P72/175
Synchronous Servomotors MSK For Potentially Explosive Areas
Technical data
