Bosch Rexroth MSK - 9.2 Plug-in power connector

9.2 Plug-in power connector

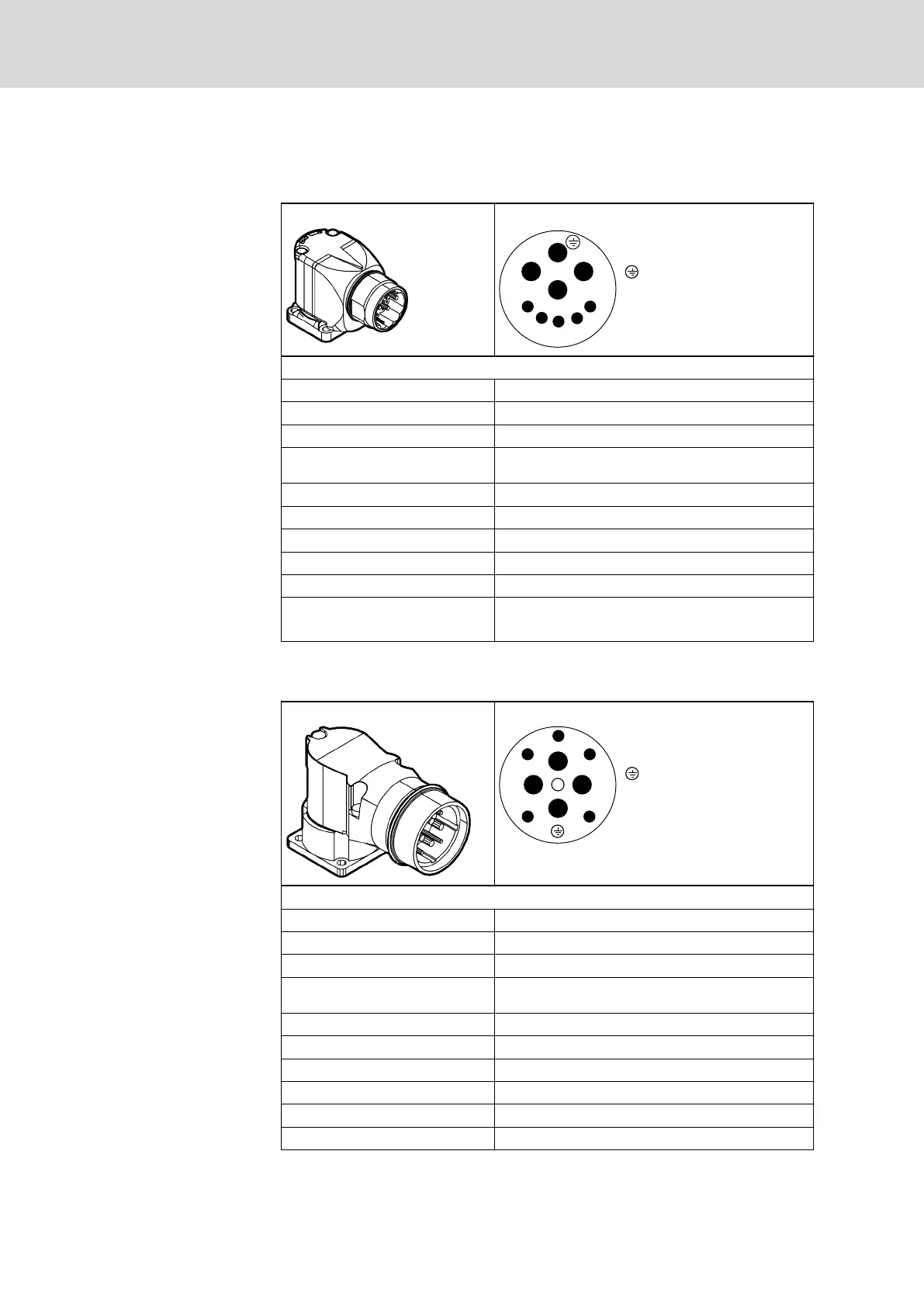

M23 flange socket RLS1100
View Pole pattern
W1
V1
9
8
7
5
6
U1
U1
V1
W1
5
6
7
8
9
A1
A2
A3
PE
MotTemp+
MotTemp-
+24VBr
0VBr
n.c.
Technical data
Connector size M23, rotatable
Degree of protection IP67 (plugged)
Temperature range -40 … +125 °C
Ambient temperature during opera‐
tion
40 °C
Contact type Pins
Rated voltage 630 V / 125 V
Rated current 23 A
Degree of contamination 3
Overvoltage category III (DIN VDE 0110)
Flange socket, associated
RLS1101 for line cross-section 1.0 and 1.5 mm
2
RLS1108 for line cross-section 2.5 mm
2
Tab. 9-2: Technical data RLS1100
M40 flange socket RLS1200
View Pole pattern
U1
W1
V1
9
5
6
8
7
U1
V1
W1
5
6
7
8
9
A1
A2
A3
PE
MotTemp+
MotTemp-
+24VBr
0VBr
n.c.
Technical data
Connector size M40, rotatable
Degree of protection IP67 (plugged)
Temperature range -40 … +125 °C
Ambient temperature during opera‐
tion
40 °C
Contact type Pins
Rated voltage 630 V / 125 V
Rated current 57 A
Degree of contamination 3
Overvoltage category III (DIN VDE 0110)
Flange socket, associated RLS1201
Tab. 9-3: Technical data RLS1200
Bosch Rexroth AG DOK-MOTOR*-MSK*EXGIIK3-PR09-EN-P110/175
Synchronous Servomotors MSK For Potentially Explosive Areas
Connection technique
