F 002 DG9 H10 2018-08-21| Bosch Automotive Service Solutions GmbH
18 | RG8.0 / RG4.0 | Electrical terminal diagramen
7. Electrical terminal diagram
7.1 For RG8.0, 230 V, 50 Hz variant
H00_16Nkv
1
F2
F1
L
N
UT1
VT2
RL1
J1
J1
RL
SC
SC
RC
Blue color with male connector
SL2
HP1 HP2
LP1
LP2
Yellow
YLW
BLU
Black
Violet
Blue color
with female
flag connector
Brown
CIRCUIT BREAKER (8 A)

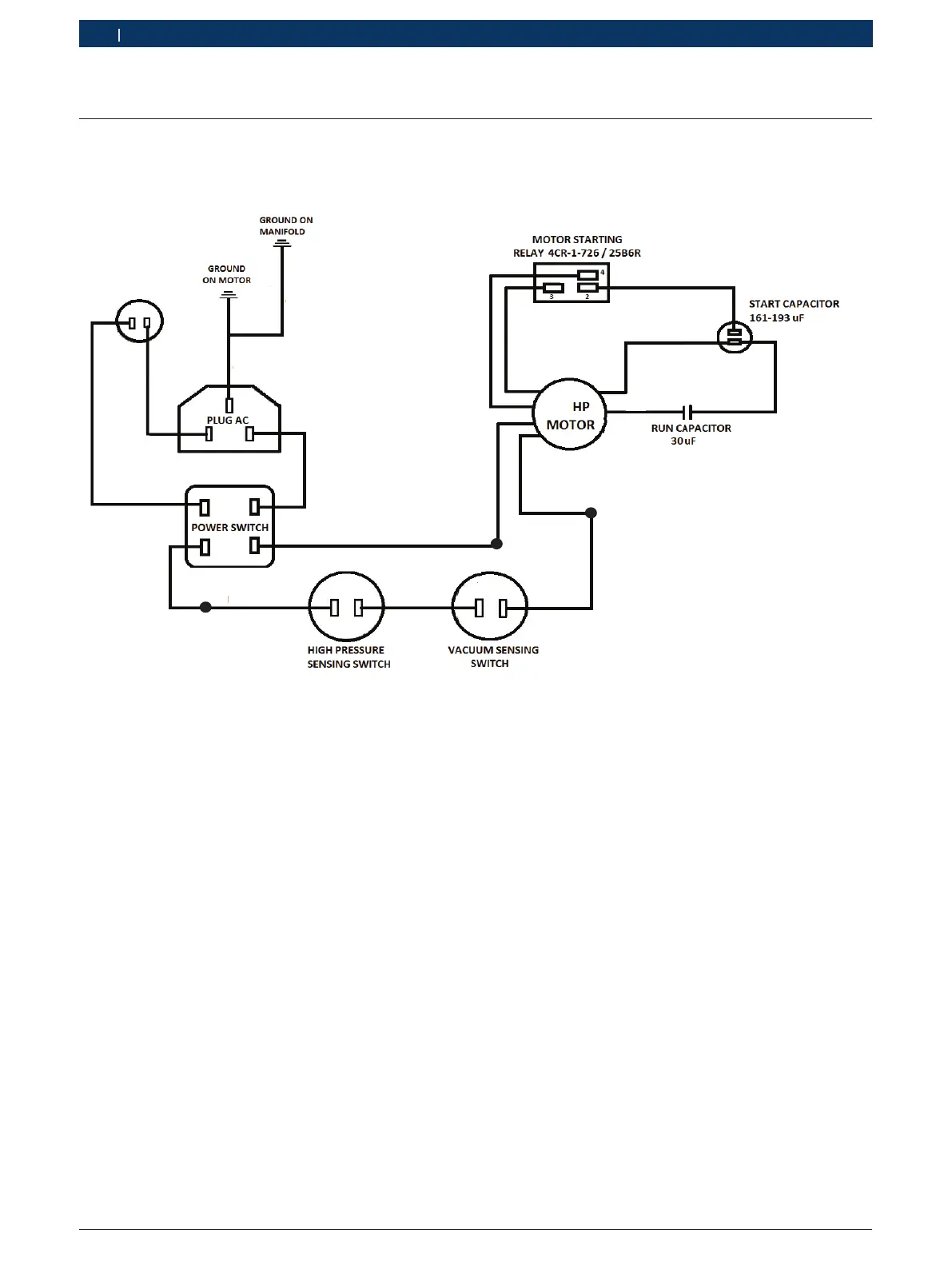

Fig. 8: Electrical terminal diagram for RG8.0, 230 V, 50 Hz variant
