Bosch RTM 430 - 1.2 Assembly;Dismantling after FD 5;97

45
BOSCH
459600/4Kr
459600/4Kr
9
4
5
17
17
16
16
18
18
18
18
13
13
19
20
3
7
3
11
10
8
12
2
6
1
24
24
15

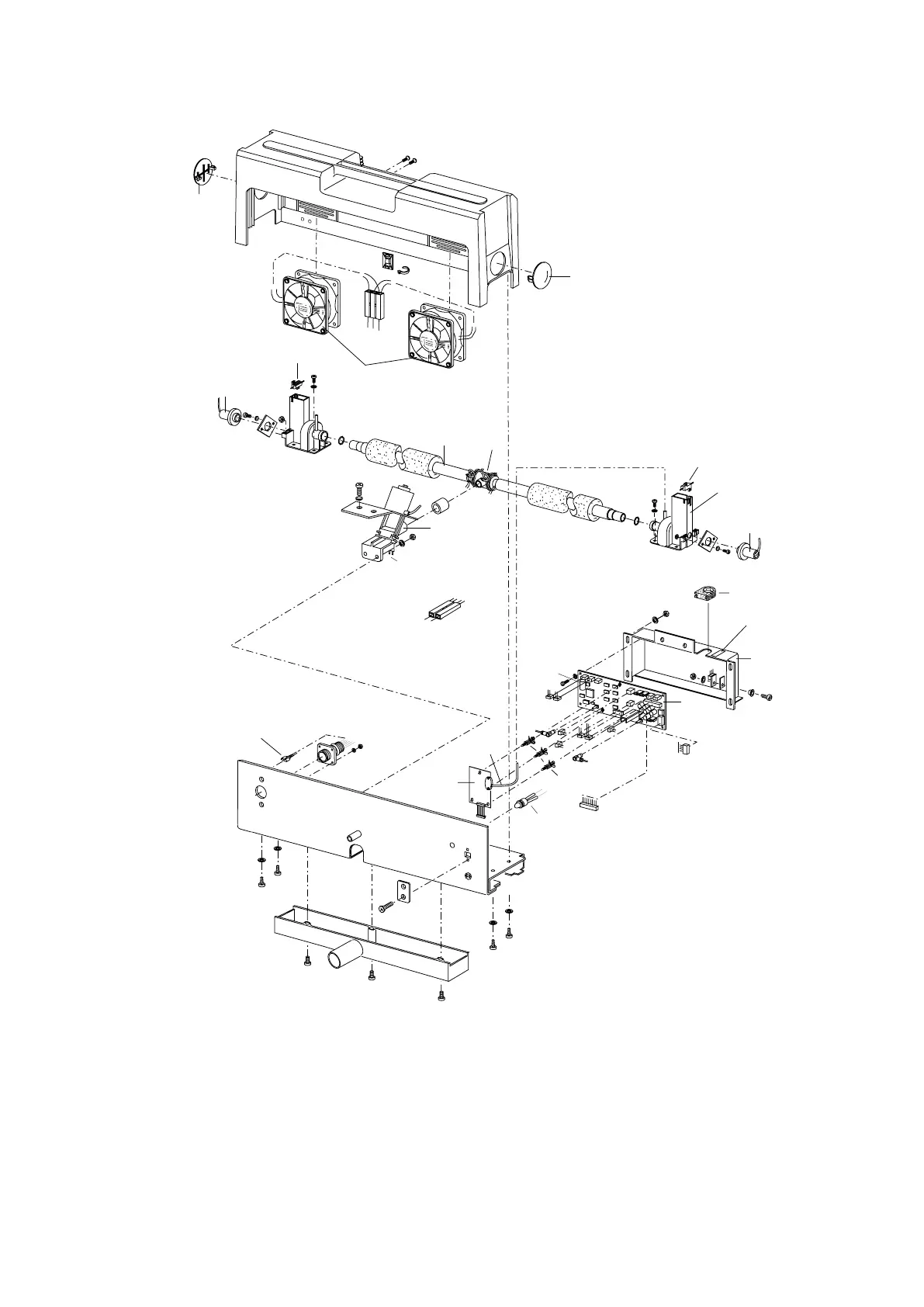

1.2 Assembly / Dismantling after FD 5/97 (Fig. 2)
1 Measurement chamber
2 Motherboard/processor board
3 Heater air curtain
4 Emitter
5 Receiver
6 Valve
7 Temperature sensor, measurement chamber
8 LED, power supply RTM
9 Ventilator
10 Battery
11 Temperature sensor, exhaust gas
12 Spacer bolt
13 Printed board / Pressure measurement (SZB)
15 Hose (SZB)
16 Screening Hood
17 Rubber bushing
18 Closing cover
19 Sticker
20 Holder
24 Blade terminal
