User manual WTS Ver.1.16
Seite 31 von 52

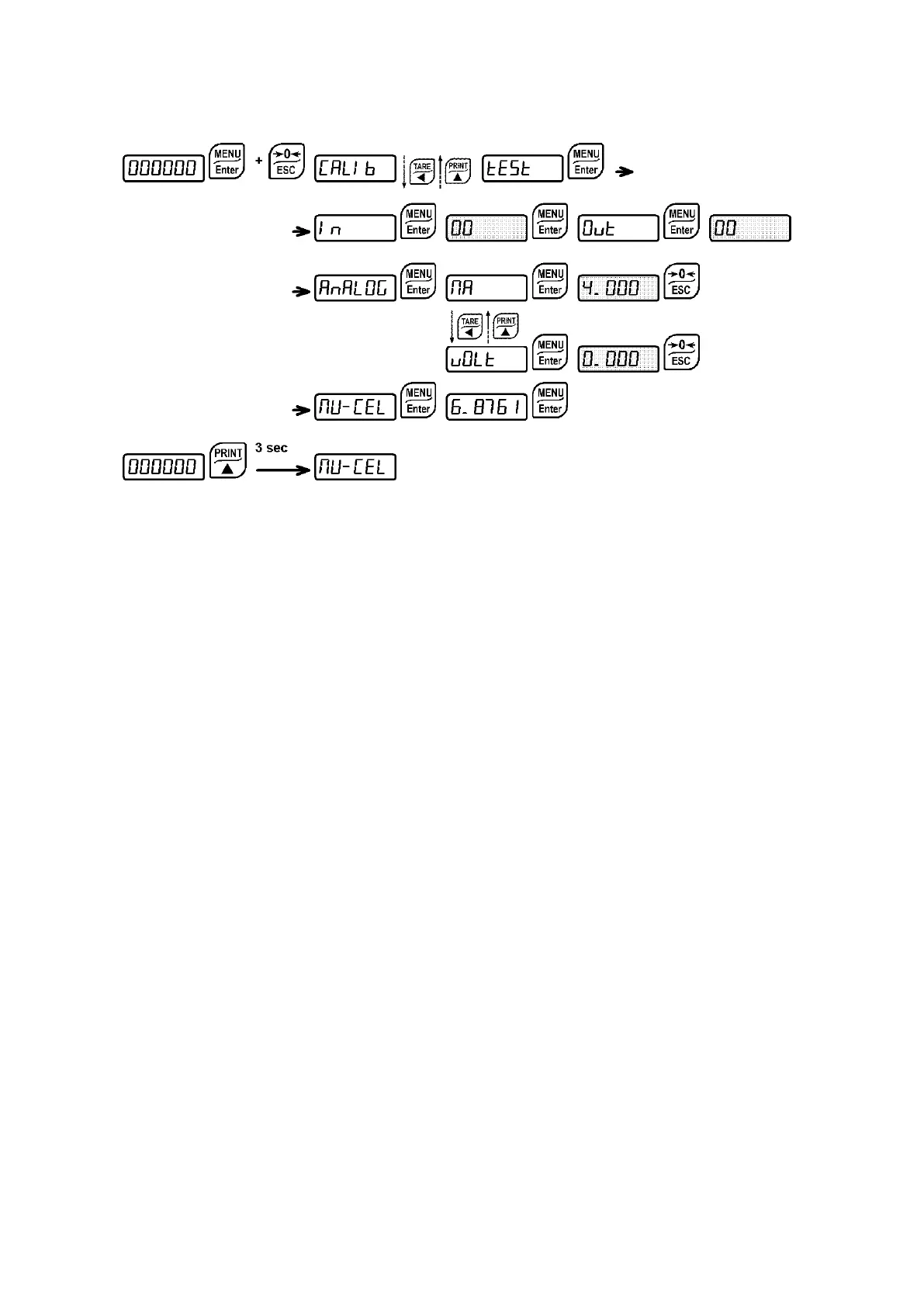

9.13 TEST
- Input Test:
: ensure that for each open input
is displayed,
is displayed when the input is
closed.
- Output Test:
: setting
ensure that the corresponding output opens. Setting
ensure that the
corresponding output closes.
- Analog Output Test:
: It allows the analog signal to range between the minimum and the maximum
values starting from the minimum.
: current output test.
: voltage output test.
- Millivolt Test:
: displays the load cell response signal in mV with four decimals.
