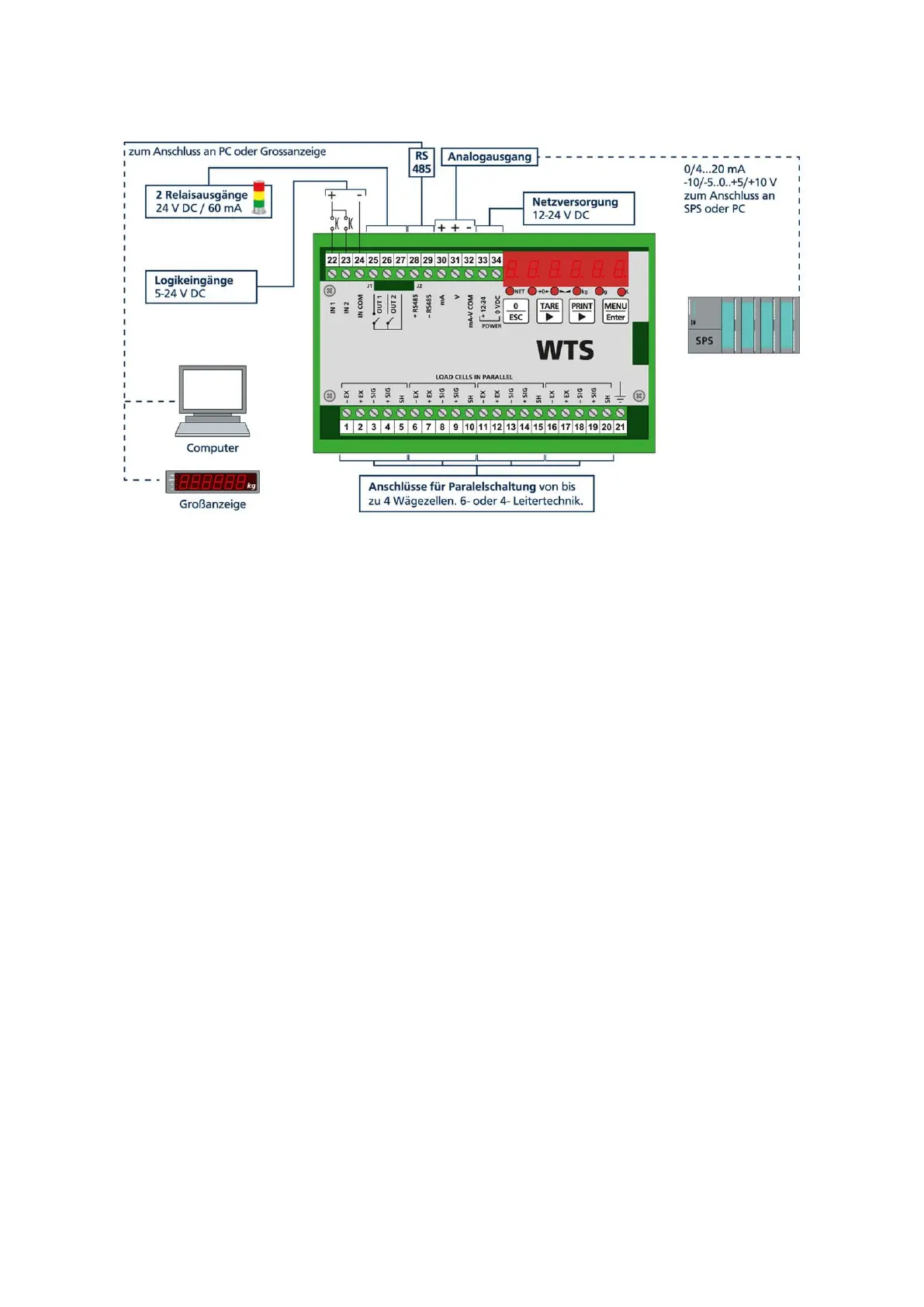

3.3 MAIN SPECIFICATIONS OF THE INSTRUMENT
- Weight indicator and transmitter for Omega/DIN rail mounting suitable for back panel or
junction box. Six-digit semi-alphanumeric display (8mm h), 7 segment. Four-key keyboard.
Dimensions: 25x115x120 mm.
- IP67 box version (170x140x95mm). Four fixing holes diameter 4 mm (centre distance 122x152
mm).
- Displays the gross weight; from external contact allows to zero set or display the net weight
(both values will be lost when the instrument is turned off).
- Peak weight function.
- Transmits the gross or net weight via optoisolated analog output 16 bit, current 0-20mA, 4-
20mA or voltage 0-10V, 0-5V ( ±10V / ±5V by closing a soldering jumper).
- Transmits the gross or net weight via RS485 serial port, by means of protocols:
▫ Modbus RTU
▫ ASCII bidirectional protocol
▫ Continuous transmission
