Bosche WTS - Outputs and Inputs Configuration

User manual WTS Ver.1.16
Seite 22 von 52

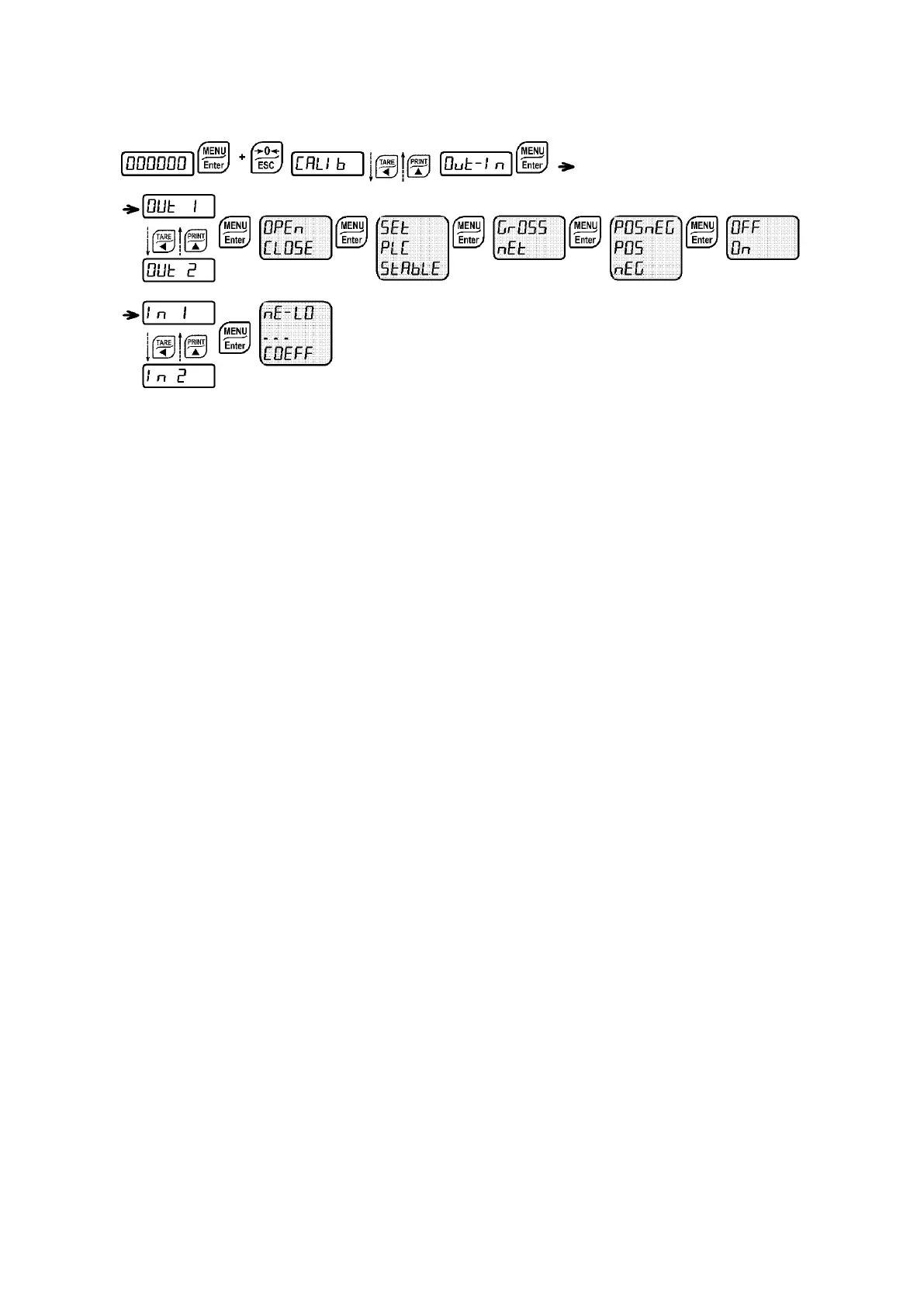

9.6 OUTPUTS AND INPUTS CONFIGURATION
OUTPUTS
The outputs are set by default as follows:

/

/

/

.
Possible operation modes:
-

(normally open): the relay is de-energised and the contact is open when the weight
is lower than the programmed setpoint value; it closes when the weight is higher than or
equal to the programmed setpoint value.
-

(normally closed): the relay is energised and the contact is closed when the weight
is lower than the programmed setpoint value; it opens when the weight is higher than or
equal to the programmed setpoint value.
-

: the contact will switch on the basis of weight, according to setpoints (see paragraph
SETPOINTS PROGRAMMING).
-

: the contact will not switch on the basis of weight, but is controlled by remote protocol
commands.
-

: relay switching occurs when the weight is stable.
- If the operation mode

is selected, the following options are also active:
-

: the contact will switch on the basis of gross weight.
-

: the contact will switch on the basis of net weight (If the net function is not active, the
contact will switch on the basis of gross weight).
-

: relay switching occurs for both positive and negative weight values.
-

: relay switching occurs for positive weight values only.
-

: relay switching occurs for negative weight values only.
