User manual WTS Ver.1.16
Seite 6 von 52

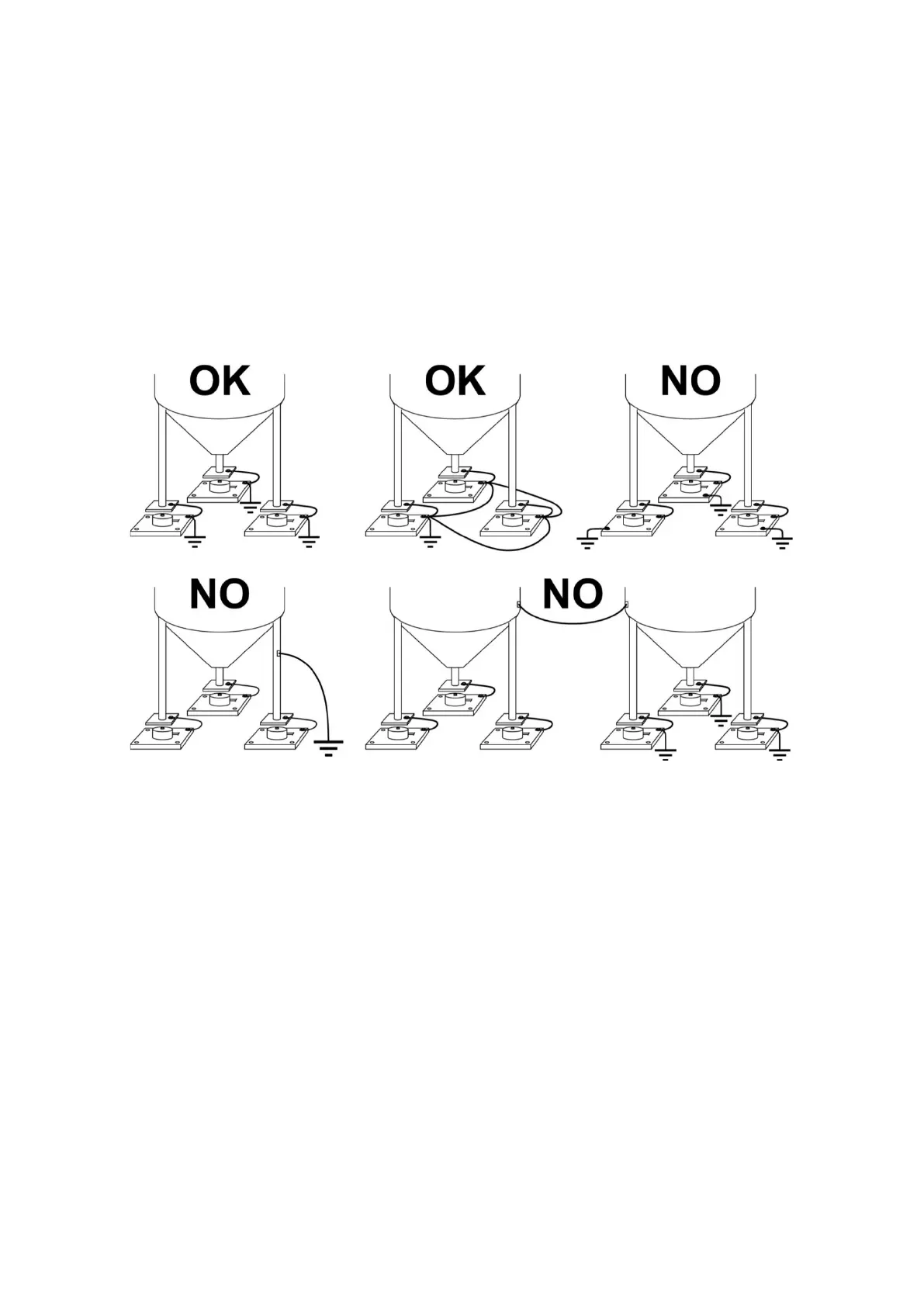

EARTHING THE WEIGHED STRUCTURE
By means of a copper wire with suitable cross-section, connect the cell upper support plate
with the lower support plate, then connect all the lower plates to a single earthing system.
Electrostatic charges accumulated because of the product rubbing against the pipes and the
weighed container walls are discharged to the ground without going through or damaging the
load cells. Failure to implement a proper earthing system might not affect the operation of the
weighing system; this, however, does not rule out the possibility that the cells and connected
instrument may become damaged in the future. It is forbidden to ensure earthing system
continuity by using metal parts contained in the weighed structure.
FAILURE TO FOLLOW THE INSTALLATION RECOMMENDATIONS WILL BE
CONSIDERED A MISUSE OF THE EQUIPMENT
