Bose 3-2-1GS Series II - Specifications

5

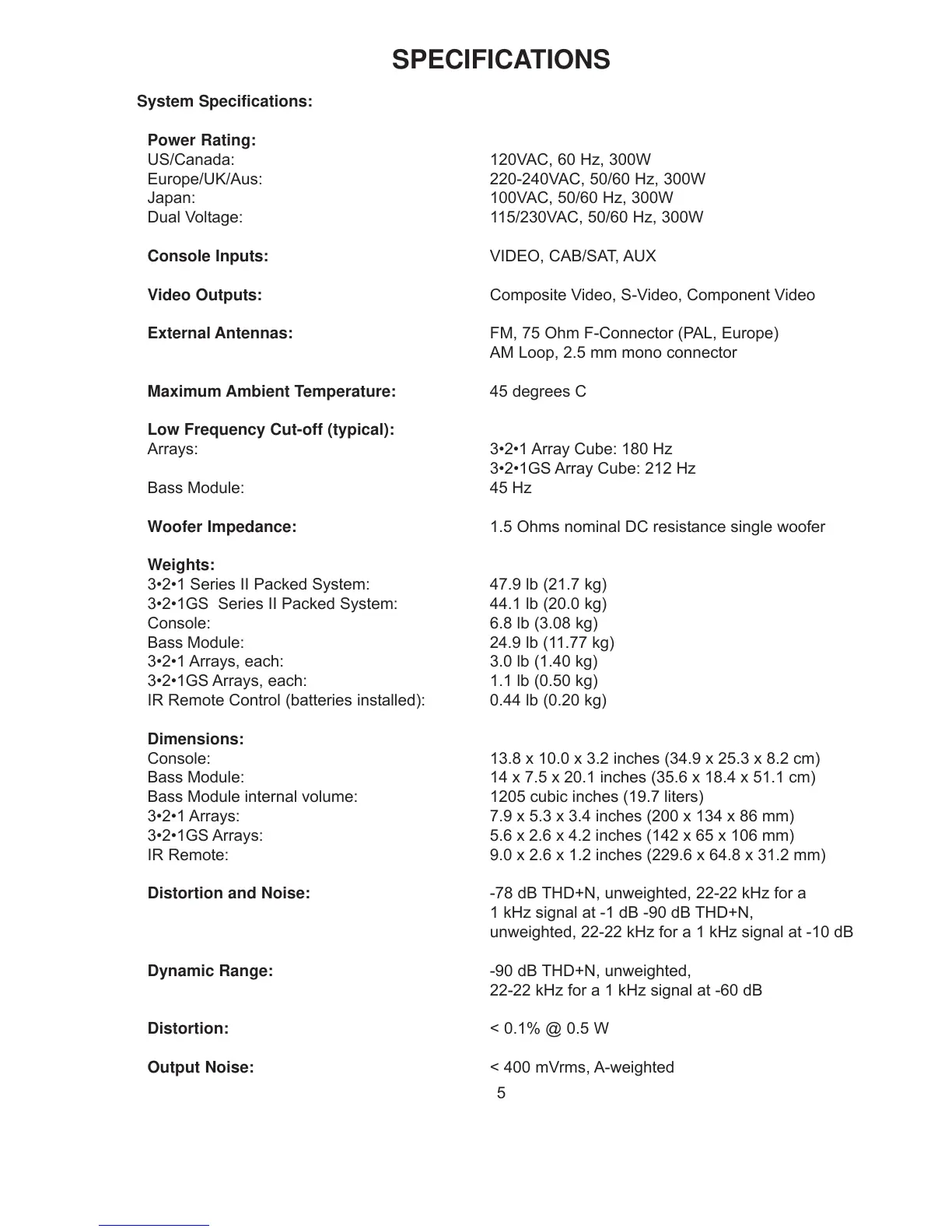

SPECIFICATIONS
System Specifications:
Power Rating:
US/Canada: 120VAC, 60 Hz, 300W
Europe/UK/Aus: 220-240VAC, 50/60 Hz, 300W
Japan: 100VAC, 50/60 Hz, 300W
Dual Voltage: 115/230VAC, 50/60 Hz, 300W
Console Inputs: VIDEO, CAB/SAT, AUX
Video Outputs: Composite Video, S-Video, Component Video
External Antennas: FM, 75 Ohm F-Connector (PAL, Europe)
AM Loop, 2.5 mm mono connector
Maximum Ambient Temperature: 45 degrees C
Low Frequency Cut-off (typical):
Arrays: 3•2•1 Array Cube: 180 Hz
3•2•1GS Array Cube: 212 Hz
Bass Module: 45 Hz
Woofer Impedance: 1.5 Ohms nominal DC resistance single woofer
Weights:
3•2•1 Series II Packed System: 47.9 lb (21.7 kg)
3•2•1GS Series II Packed System: 44.1 lb (20.0 kg)
Console: 6.8 lb (3.08 kg)
Bass Module: 24.9 lb (11.77 kg)
3•2•1 Arrays, each: 3.0 lb (1.40 kg)
3•2•1GS Arrays, each: 1.1 lb (0.50 kg)
IR Remote Control (batteries installed): 0.44 lb (0.20 kg)
Dimensions:
Console: 13.8 x 10.0 x 3.2 inches (34.9 x 25.3 x 8.2 cm)
Bass Module: 14 x 7.5 x 20.1 inches (35.6 x 18.4 x 51.1 cm)
Bass Module internal volume: 1205 cubic inches (19.7 liters)
3•2•1 Arrays: 7.9 x 5.3 x 3.4 inches (200 x 134 x 86 mm)
3•2•1GS Arrays: 5.6 x 2.6 x 4.2 inches (142 x 65 x 106 mm)
IR Remote: 9.0 x 2.6 x 1.2 inches (229.6 x 64.8 x 31.2 mm)
Distortion and Noise: -78 dB THD+N, unweighted, 22-22 kHz for a
1 kHz signal at -1 dB -90 dB THD+N,
unweighted, 22-22 kHz for a 1 kHz signal at -10 dB
Dynamic Range: -90 dB THD+N, unweighted,
22-22 kHz for a 1 kHz signal at -60 dB
Distortion: < 0.1% @ 0.5 W
Output Noise: < 400 mVrms, A-weighted
