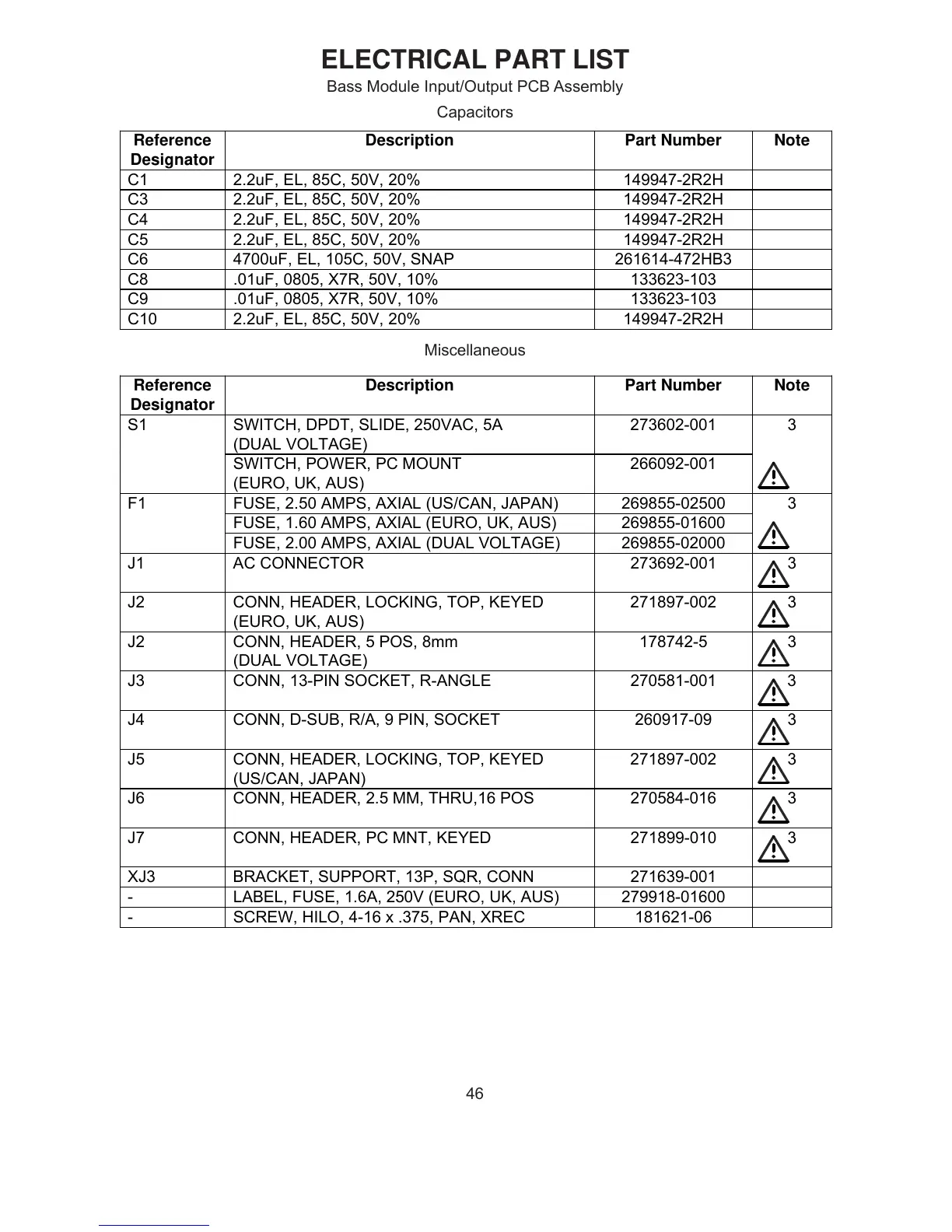

ELECTRICAL PART LIST
Bass Module Input/Output PCB Assembly
Capacitors
Miscellaneous
Reference
Designator
Description Part Number Note
S1 SWITCH, DPDT, SLIDE, 250VAC, 5A
(DUAL VOLTAGE)
273602-001 3
SWITCH, POWER, PC MOUNT
(EURO, UK, AUS)
266092-001
F1 FUSE, 2.50 AMPS, AXIAL (US/CAN, JAPAN) 269855-02500 3
FUSE, 1.60 AMPS, AXIAL (EURO, UK, AUS) 269855-01600
FUSE, 2.00 AMPS, AXIAL (DUAL VOLTAGE) 269855-02000
J1 AC CONNECTOR 273692-001 3
J2 CONN, HEADER, LOCKING, TOP, KEYED
(EURO, UK, AUS)
271897-002 3
J2 CONN, HEADER, 5 POS, 8mm
(DUAL VOLTAGE)
178742-5 3
J3 CONN, 13-PIN SOCKET, R-ANGLE 270581-001 3
J4 CONN, D-SUB, R/A, 9 PIN, SOCKET 260917-09 3
J5 CONN, HEADER, LOCKING, TOP, KEYED
(US/CAN, JAPAN)
271897-002 3
J6 CONN, HEADER, 2.5 MM, THRU,16 POS 270584-016 3
J7 CONN, HEADER, PC MNT, KEYED 271899-010 3
XJ3 BRACKET, SUPPORT, 13P, SQR, CONN 271639-001
- LABEL, FUSE, 1.6A, 250V (EURO, UK, AUS) 279918-01600
- SCREW, HILO, 4-16 x .375, PAN, XREC 181621-06
Reference
Designator
Description Part Number Note
C1 2.2uF, EL, 85C, 50V, 20% 149947-2R2H
C3 2.2uF, EL, 85C, 50V, 20% 149947-2R2H
C4 2.2uF, EL, 85C, 50V, 20% 149947-2R2H
C5 2.2uF, EL, 85C, 50V, 20% 149947-2R2H
C6 4700uF, EL, 105C, 50V, SNAP 261614-472HB3
C8 .01uF, 0805, X7R, 50V, 10% 133623-103
C9 .01uF, 0805, X7R, 50V, 10% 133623-103
C10 2.2uF, EL, 85C, 50V, 20% 149947-2R2H
