36
Resistors (continued)

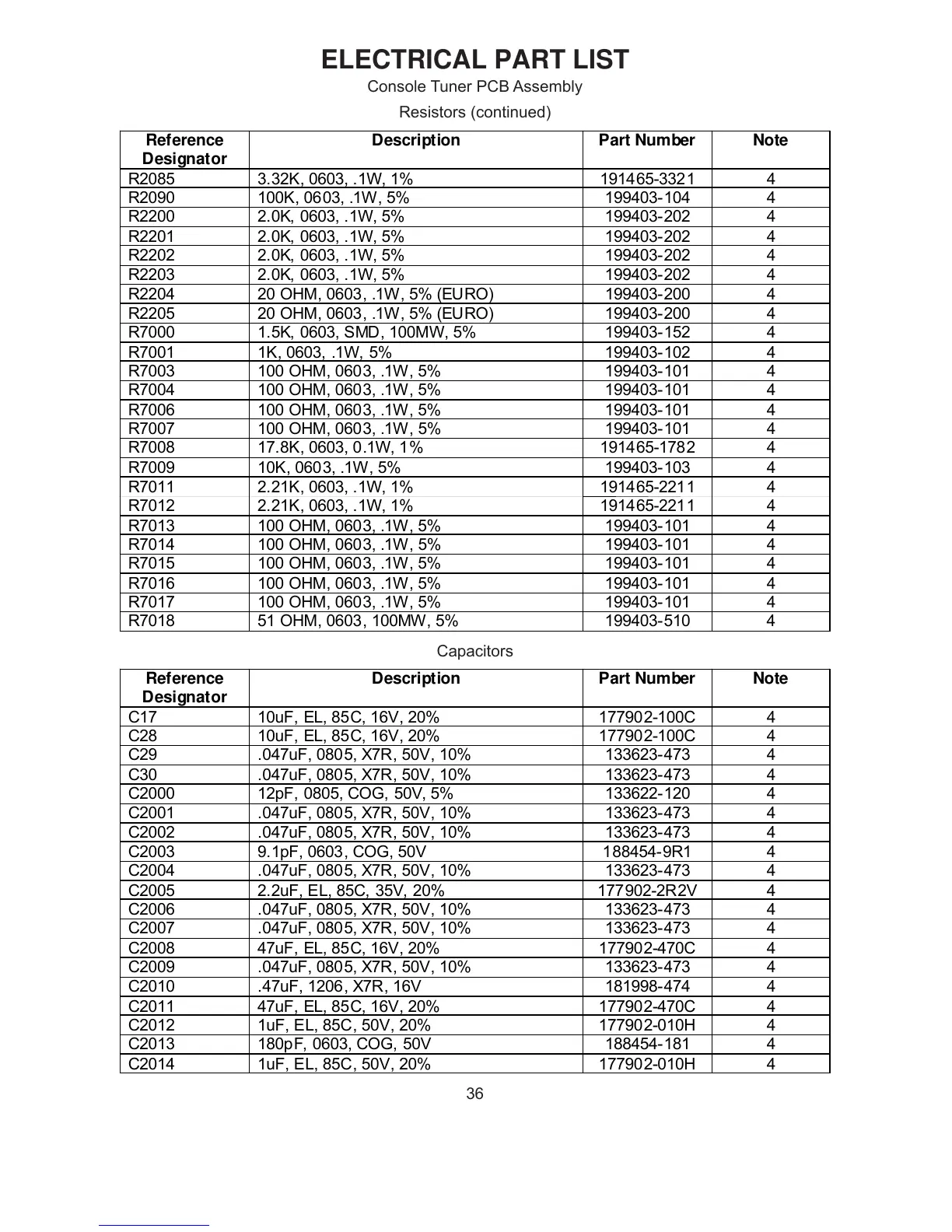

ELECTRICAL PART LIST
Console Tuner PCB Assembly
Capacitors
Reference
Designator
Description Part Numbe
r
Note
R2085 3.32K, 0603, .1W, 1% 191465-3321 4
R2090 100K, 0603, .1W, 5% 199403-104 4
R2200 2.0K, 0603, .1W, 5% 199403-202 4
R2201 2.0K, 0603, .1W, 5% 199403-202 4
R2202 2.0K, 0603, .1W, 5% 199403-202 4
R2203 2.0K, 0603, .1W, 5% 199403-202 4
R2204 20 OHM, 0603, .1W, 5%
(
EURO
)
199403-200 4
R2205 20 OHM, 0603, .1W, 5% (EURO) 199403-200 4
R7000 1.5K, 0603, SMD, 100MW, 5% 199403-152 4
R7001 1K, 0603, .1W, 5% 199403-102 4
R7003 100 OHM, 0603, .1W, 5% 199403-101 4
R7004 100 OHM, 0603, .1W, 5% 199403-101 4
R7006 100 OHM, 0603, .1W, 5% 199403-101 4
R7007 100 OHM, 0603, .1W, 5% 199403-101 4
R7008 17.8K, 0603, 0.1W, 1% 191465-1782 4
R7009 10K, 0603, .1W, 5% 199403-103 4
R7011 2.21K, 0603, .1W, 1% 191465-2211 4
R7012 2.21K, 0603, .1W, 1% 191465-2211 4
R7013 100 OHM, 0603, .1W, 5% 199403-101 4
R7014 100 OHM, 0603, .1W, 5% 199403-101 4
R7015 100 OHM, 0603, .1W, 5% 199403-101 4
R7016 100 OHM, 0603, .1W, 5% 199403-101 4
R7017 100 OHM, 0603, .1W, 5% 199403-101 4
R7018 51 OHM, 0603, 100MW, 5% 199403-510 4
Reference
Designator
Description Part Numbe
r
Note
C17 10uF, EL, 85C, 16V, 20% 177902-100C 4
C28 10uF, EL, 85C, 16V, 20% 177902-100C 4
C29 .047uF, 0805, X7R, 50V, 10% 133623-473 4
C30 .047uF, 0805, X7R, 50V, 10% 133623-473 4
C2000 12pF, 0805, COG, 50V, 5% 133622-120 4
C2001 .047uF, 0805, X7R, 50V, 10% 133623-473 4
C2002 .047uF, 0805, X7R, 50V, 10% 133623-473 4
C2003 9.1pF, 0603, COG, 50V 188454-9R1 4
C2004 .047uF, 0805, X7R, 50V, 10% 133623-473 4
C2005 2.2uF, EL, 85C, 35V, 20% 177902-2R2V 4
C2006 .047uF, 0805, X7R, 50V, 10% 133623-473 4
C2007 .047uF, 0805, X7R, 50V, 10% 133623-473 4
C2008 47uF, EL, 85C, 16V, 20% 177902-470C 4
C2009 .047uF, 0805, X7R, 50V, 10% 133623-473 4
C2010 .47uF, 1206, X7R, 16V 181998-474 4
C2011 47uF, EL, 85C, 16V, 20% 177902-470C 4
C2012 1uF, EL, 85C, 50V, 20% 177902-010H 4
C2013 180pF, 0603, COG, 50V 188454-181 4
C2014 1uF, EL, 85C, 50V, 20% 177902-010H 4
