Bose 3-2-1GS Series II - Main Part List - Bass Module (Before 4;27;09)

17

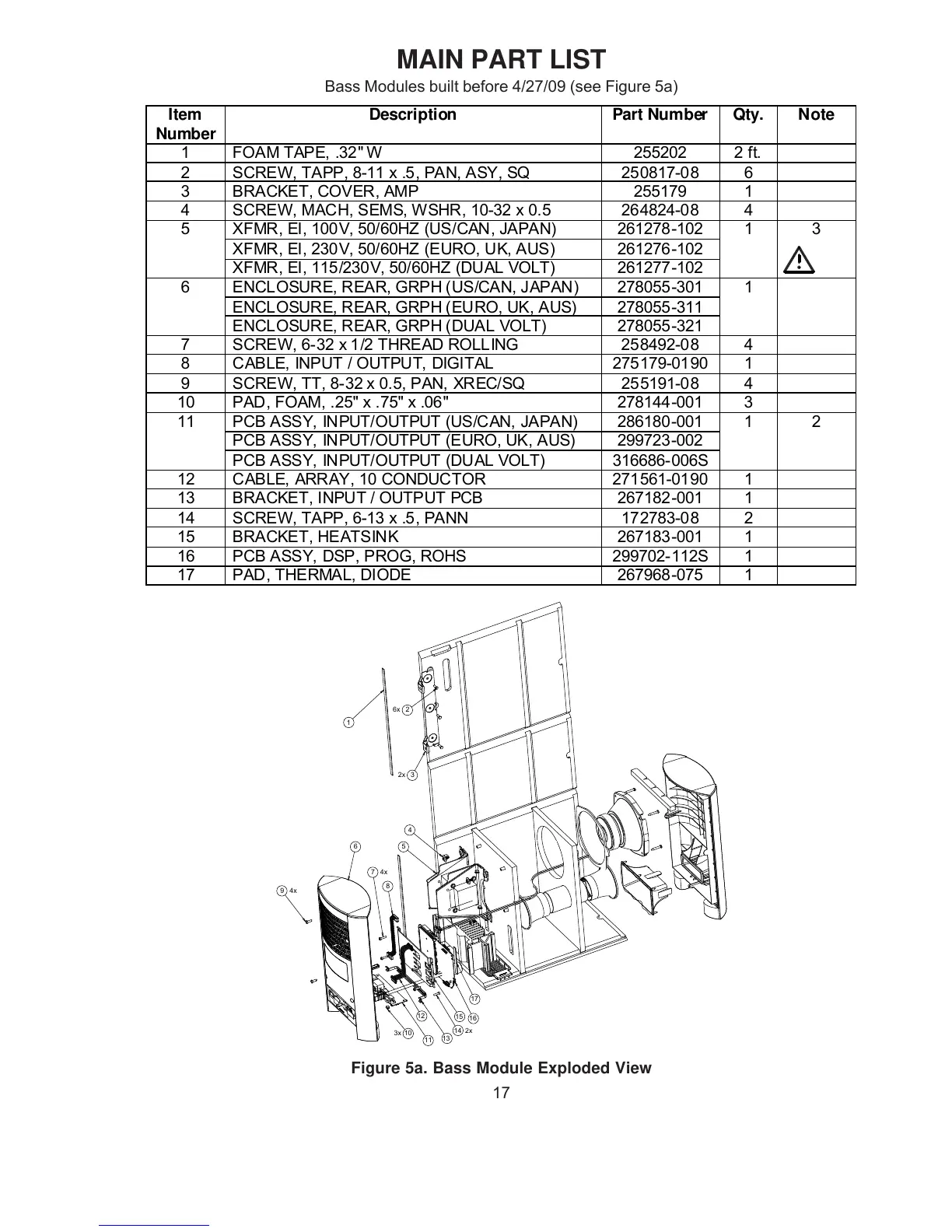

Figure 5a. Bass Module Exploded View
MAIN PART LIST
Bass Modules built before 4/27/09 (see Figure 5a)
1
26x
32x
4
5
6
7
8
94x
4x
103x
11
12
13
14
15
16
17
2x
Item
Number
Description Part Number Qty. Note
1 FOAM TAPE, .32" W 255202 2 ft.
2 SCREW, TAPP, 8-11 x .5, PAN, ASY, SQ 250817-08 6
3 BRACKET, COVER, AMP 255179 1
4 SCREW, MACH, SEMS, WSHR, 10-32 x 0.5 264824-08 4
5 XFMR, EI, 100V, 50/60HZ (US/CAN, JAPAN) 261278-102 1 3
XFMR, EI, 230V, 50/60HZ (EURO, UK, AUS) 261276-102
XFMR, EI, 115/230V, 50/60HZ (DUAL VOLT) 261277-102
6 ENCLOSURE, REAR, GRPH (US/CAN, JAPAN) 278055-301 1
ENCLOSURE, REAR, GRPH
(
EURO, UK, AUS
)
278055-311
ENCLOSURE, REAR, GRPH (DUAL VOLT) 278055-321
7 SCREW, 6-32 x 1/2 THREAD ROLLING 258492-08 4
8 CABLE, INPUT / OUTPUT, DIGITAL 275179-0190 1
9 SCREW, TT, 8-32 x 0.5, PAN, XREC/SQ 255191-08 4
10 PAD, FOAM, .25" x .75" x .06" 278144-001 3
11 PCB ASSY, INPUT/OUTPUT (US/CAN, JAPAN) 286180-001 1 2
PCB ASSY, INPUT/OUTPUT (EURO, UK, AUS) 299723-002
PCB ASSY, INPUT/OUTPUT (DUAL VOLT) 316686-006S
12 CABLE, ARRAY, 10 CONDUCTOR 271561-0190 1
13 BRACKET, INPUT / OUTPUT PCB 267182-001 1
14 SCREW, TAPP, 6-13 x .5, PANN 172783-08 2
15 BRACKET, HEATSINK 267183-001 1
16 PCB ASSY, DSP, PROG, ROHS 299702-112S 1
17 PAD, THERMAL, DIODE 267968-075 1
