20
MAIN PART LIST
3•2•1 GS Array Assembly (see Figure 7)
1
2
3
44x
58x
1

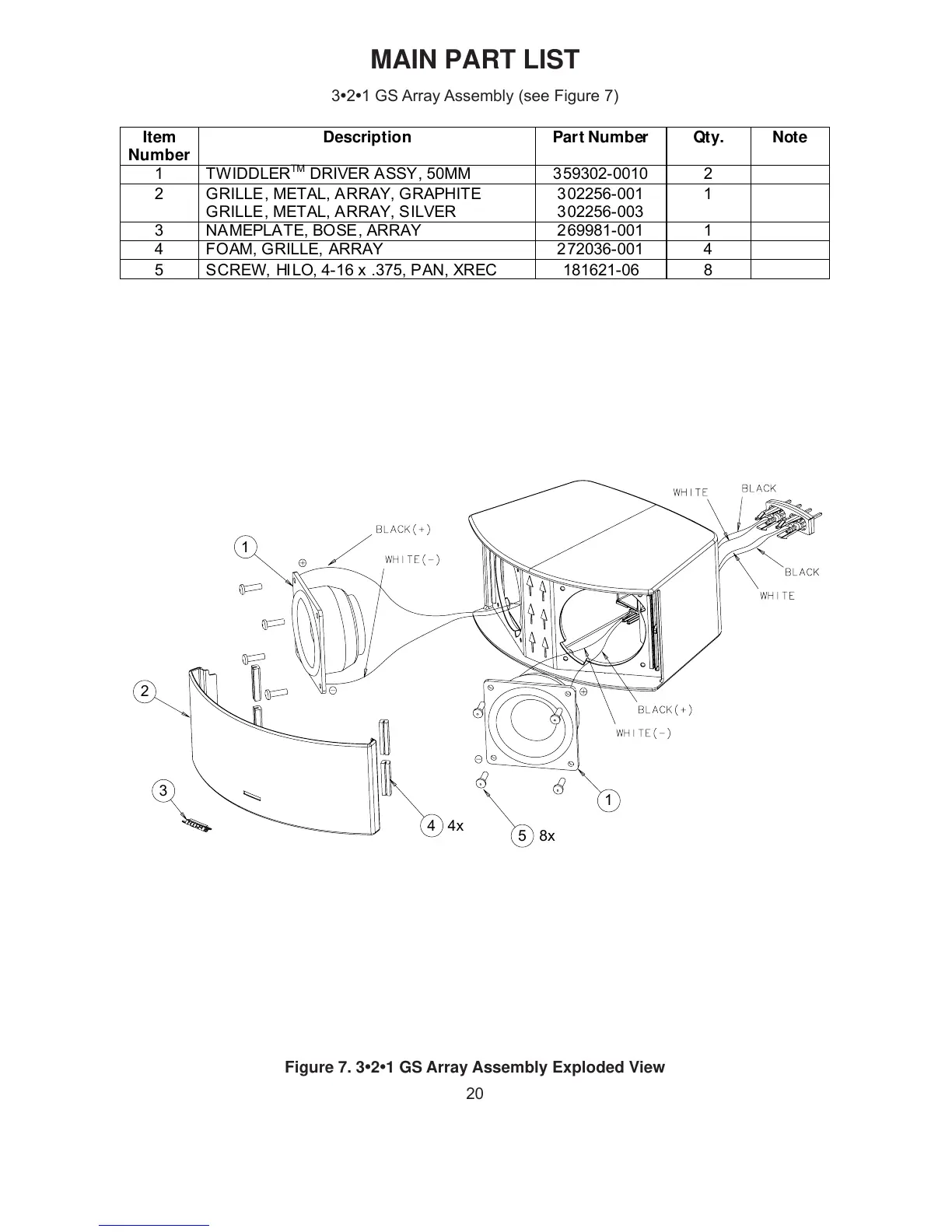

Figure 7. 3•2•1 GS Array Assembly Exploded View
Item
Number
Description Part Number Qty. Note
1 TWIDDLER
TM
DRIVER ASSY, 50MM 359302-0010 2
2 GRILLE, METAL, ARRAY, GRAPHITE
GRILLE, METAL, ARRAY, SILVER
302256-001
302256-003
1
3 NAMEPLATE, BOSE, ARRAY 269981-001 1
4 FOAM, GRILLE, ARRAY 272036-001 4
5 SCREW, HILO, 4-16 x .375, PAN, XREC 181621-06 8
