Bose 3-2-1GS Series II - Console Main PCB Assembly

22

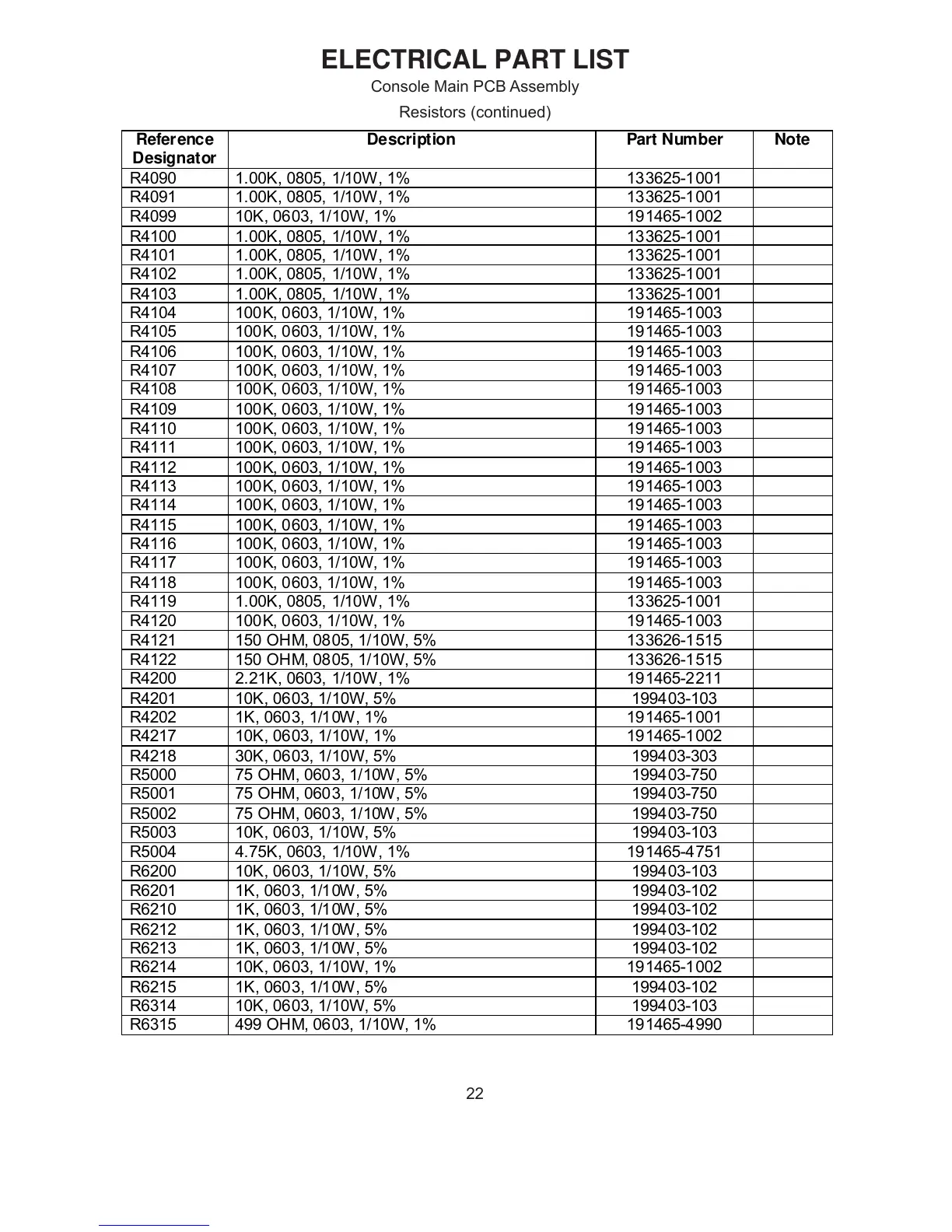

ELECTRICAL PART LIST
Resistors (continued)
Console Main PCB Assembly
Reference
Designator
Description Part Numbe
r
Note
R4090 1.00K, 0805, 1/10W, 1% 133625-1001
R4091 1.00K, 0805, 1/10W, 1% 133625-1001
R4099 10K, 0603, 1/10W, 1% 191465-1002
R4100 1.00K, 0805, 1/10W, 1% 133625-1001
R4101 1.00K, 0805, 1/10W, 1% 133625-1001
R4102 1.00K, 0805, 1/10W, 1% 133625-1001
R4103 1.00K, 0805, 1/10W, 1% 133625-1001
R4104 100K, 0603, 1/10W, 1% 191465-1003
R4105 100K, 0603, 1/10W, 1% 191465-1003
R4106 100K, 0603, 1/10W, 1% 191465-1003
R4107 100K, 0603, 1/10W, 1% 191465-1003
R4108 100K, 0603, 1/10W, 1% 191465-1003
R4109 100K, 0603, 1/10W, 1% 191465-1003
R4110 100K, 0603, 1/10W, 1% 191465-1003
R4111 100K, 0603, 1/10W, 1% 191465-1003
R4112 100K, 0603, 1/10W, 1% 191465-1003
R4113 100K, 0603, 1/10W, 1% 191465-1003
R4114 100K, 0603, 1/10W, 1% 191465-1003
R4115 100K, 0603, 1/10W, 1% 191465-1003
R4116 100K, 0603, 1/10W, 1% 191465-1003
R4117 100K, 0603, 1/10W, 1% 191465-1003
R4118 100K, 0603, 1/10W, 1% 191465-1003
R4119 1.00K, 0805, 1/10W, 1% 133625-1001
R4120 100K, 0603, 1/10W, 1% 191465-1003
R4121 150 OHM, 0805, 1/10W, 5% 133626-1515
R4122 150 OHM, 0805, 1/10W, 5% 133626-1515
R4200 2.21K, 0603, 1/10W, 1% 191465-2211
R4201 10K, 0603, 1/10W, 5% 199403-103
R4202 1K, 0603, 1/10W, 1% 191465-1001
R4217 10K, 0603, 1/10W, 1% 191465-1002
R4218 30K, 0603, 1/10W, 5% 199403-303
R5000 75 OHM, 0603, 1/10W, 5% 199403-750
R5001 75 OHM, 0603, 1/10W, 5% 199403-750
R5002 75 OHM, 0603, 1/10W, 5% 199403-750
R5003 10K, 0603, 1/10W, 5% 199403-103
R5004 4.75K, 0603, 1/10W, 1% 191465-4751
R6200 10K, 0603, 1/10W, 5% 199403-103
R6201 1K, 0603, 1/10W, 5% 199403-102
R6210 1K, 0603, 1/10W, 5% 199403-102
R6212 1K, 0603, 1/10W, 5% 199403-102
R6213 1K, 0603, 1/10W, 5% 199403-102
R6214 10K, 0603, 1/10W, 1% 191465-1002
R6215 1K, 0603, 1/10W, 5% 199403-102
R6314 10K, 0603, 1/10W, 5% 199403-103
R6315 499 OHM, 0603, 1/10W, 1% 191465-4990
