19
MAIN PART LIST
Standard 3•2•1 Array Assembly (see Figure 6)

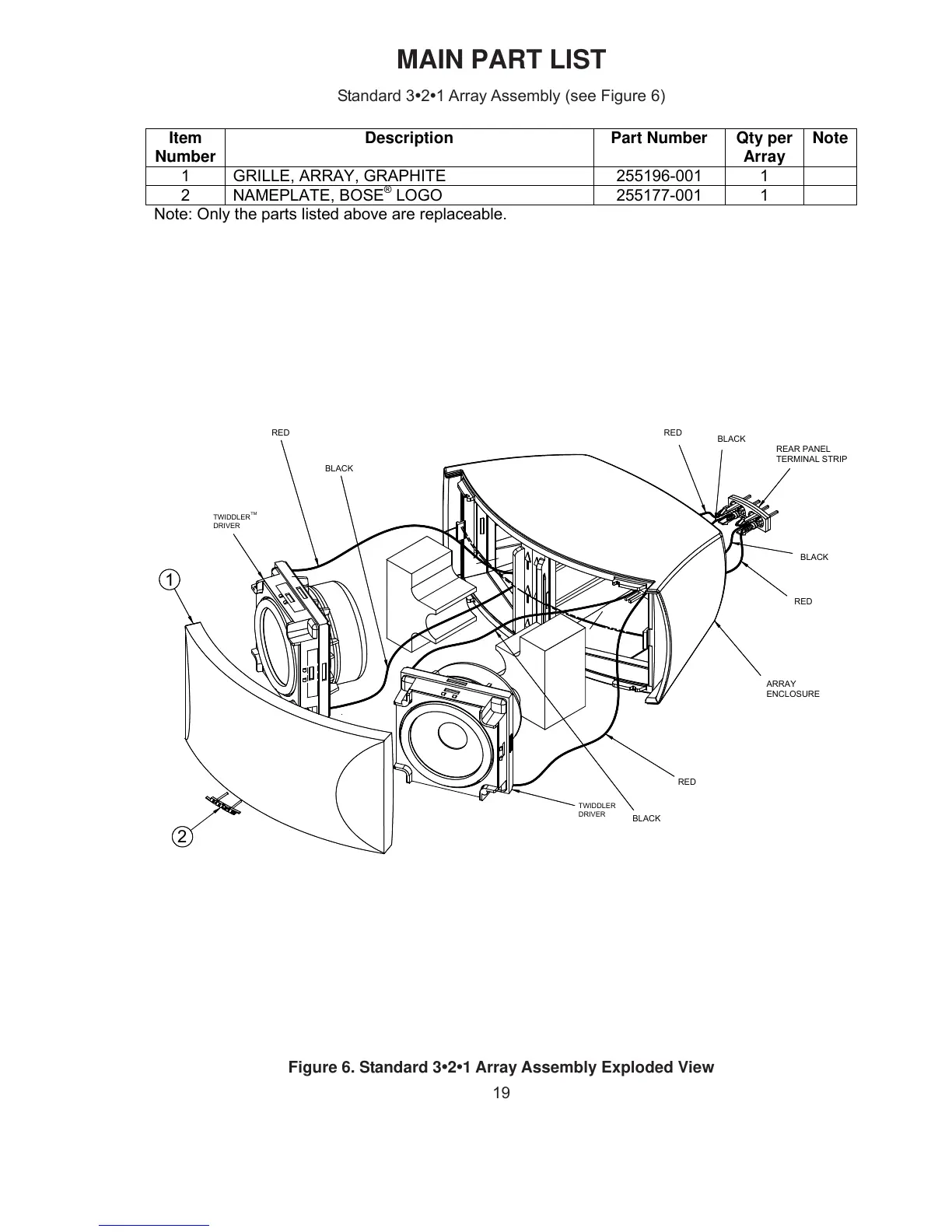

Figure 6. Standard 3
•2•1 Array Assembly Exploded View
RED
BLACK
RED
BLACK
1
2
TWIDDLER
DRIVER
TWIDDLER
DRIVER
TM
ARRAY
ENCLOSURE
RED
BLACK
RED
BLACK
REAR PANEL
TERMINAL STRIP
Item
Number
Description Part Number Qty per
Array
Note
1 GRILLE, ARRAY, GRAPHITE 255196-001 1
2 NAMEPLATE, BOSE
®
LOGO 255177-001 1
Note: Only the parts listed above are replaceable.
