39

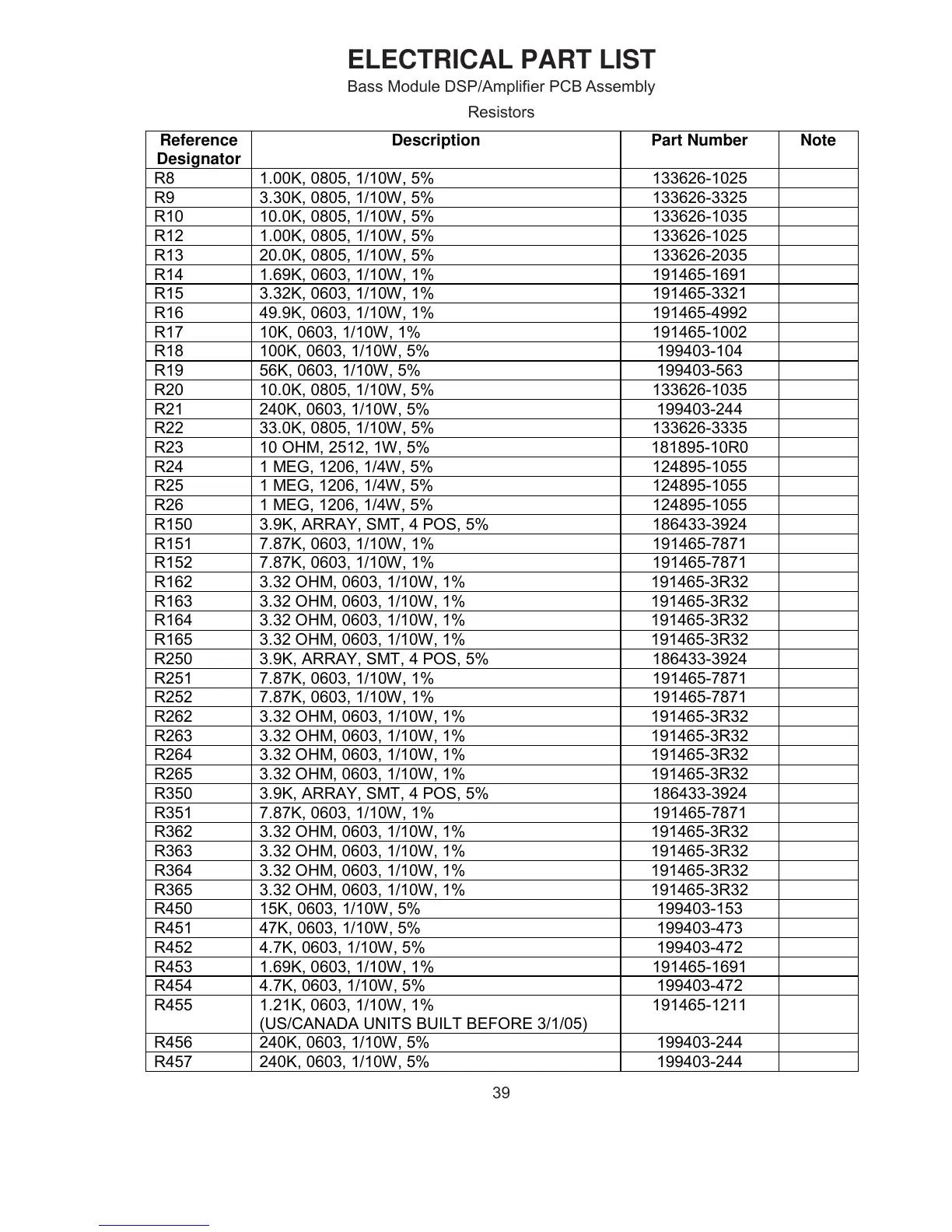

ELECTRICAL PART LIST
Bass Module DSP/Amplifier PCB Assembly
Resistors
Reference
Designator
Description Part Number Note
R8 1.00K, 0805, 1/10W, 5% 133626-1025
R9 3.30K, 0805, 1/10W, 5% 133626-3325
R10 10.0K, 0805, 1/10W, 5% 133626-1035
R12 1.00K, 0805, 1/10W, 5% 133626-1025
R13 20.0K, 0805, 1/10W, 5% 133626-2035
R14 1.69K, 0603, 1/10W, 1% 191465-1691
R15 3.32K, 0603, 1/10W, 1% 191465-3321
R16 49.9K, 0603, 1/10W, 1% 191465-4992
R17 10K, 0603, 1/10W, 1% 191465-1002
R18 100K, 0603, 1/10W, 5% 199403-104
R19 56K, 0603, 1/10W, 5% 199403-563
R20 10.0K, 0805, 1/10W, 5% 133626-1035
R21 240K, 0603, 1/10W, 5% 199403-244
R22 33.0K, 0805, 1/10W, 5% 133626-3335
R23 10 OHM, 2512, 1W, 5% 181895-10R0
R24 1 MEG, 1206, 1/4W, 5% 124895-1055
R25 1 MEG, 1206, 1/4W, 5% 124895-1055
R26 1 MEG, 1206, 1/4W, 5% 124895-1055
R150 3.9K, ARRAY, SMT, 4 POS, 5% 186433-3924
R151 7.87K, 0603, 1/10W, 1% 191465-7871
R152 7.87K, 0603, 1/10W, 1% 191465-7871
R162 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R163 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R164 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R165 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R250 3.9K, ARRAY, SMT, 4 POS, 5% 186433-3924
R251 7.87K, 0603, 1/10W, 1% 191465-7871
R252 7.87K, 0603, 1/10W, 1% 191465-7871
R262 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R263 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R264 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R265 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R350 3.9K, ARRAY, SMT, 4 POS, 5% 186433-3924
R351 7.87K, 0603, 1/10W, 1% 191465-7871
R362 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R363 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R364 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R365 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R450 15K, 0603, 1/10W, 5% 199403-153
R451 47K, 0603, 1/10W, 5% 199403-473
R452 4.7K, 0603, 1/10W, 5% 199403-472
R453 1.69K, 0603, 1/10W, 1% 191465-1691
R454 4.7K, 0603, 1/10W, 5% 199403-472
R455 1.21K, 0603, 1/10W, 1%
(US/CANADA UNITS BUILT BEFORE 3/1/05)
191465-1211
R456 240K, 0603, 1/10W, 5% 199403-244
R457 240K, 0603, 1/10W, 5% 199403-244
