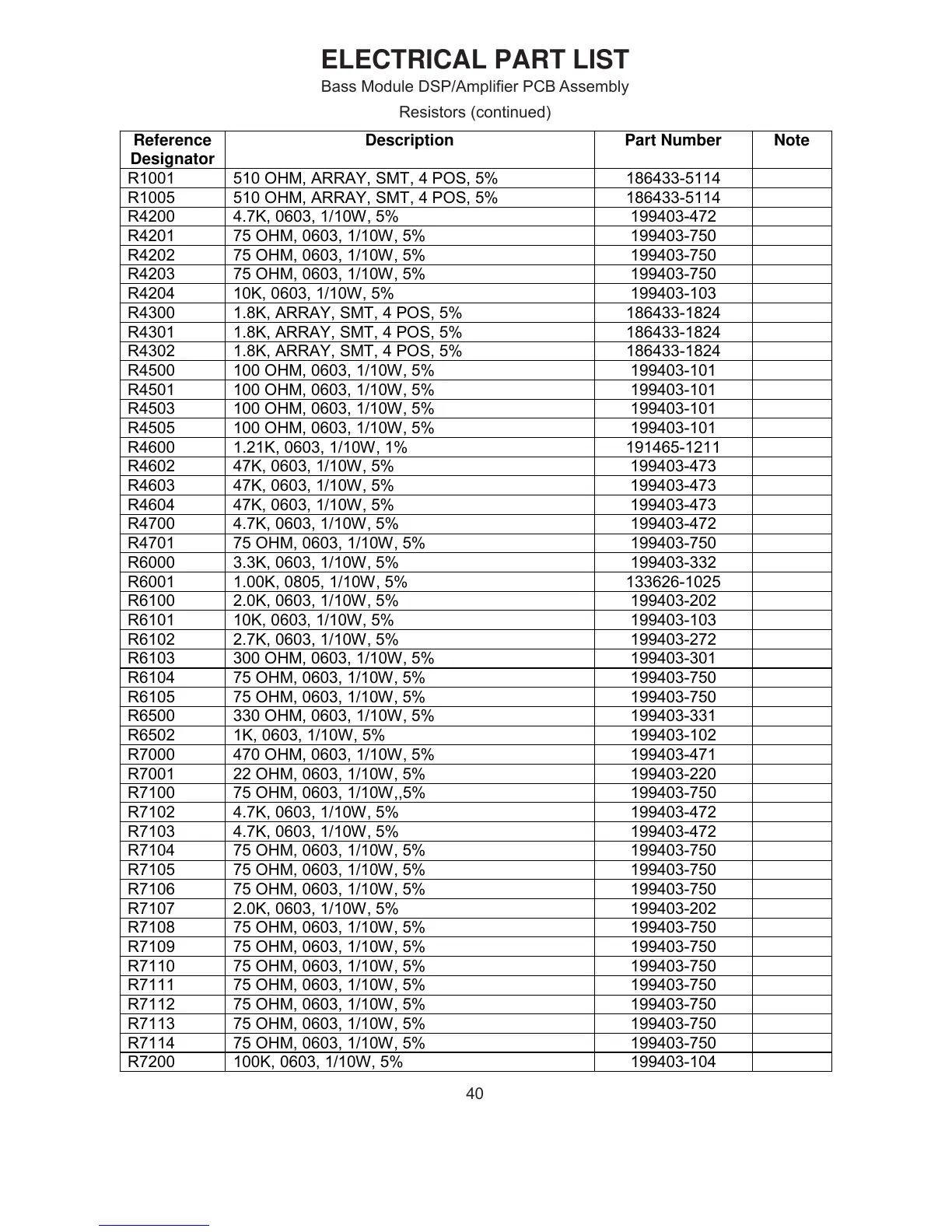

ELECTRICAL PART LIST
Bass Module DSP/Amplifier PCB Assembly
Resistors (continued)
Reference
Designator
Description Part Number Note
R1001 510 OHM, ARRAY, SMT, 4 POS, 5% 186433-5114
R1005 510 OHM, ARRAY, SMT, 4 POS, 5% 186433-5114
R4200 4.7K, 0603, 1/10W, 5% 199403-472
R4201 75 OHM, 0603, 1/10W, 5% 199403-750
R4202 75 OHM, 0603, 1/10W, 5% 199403-750
R4203 75 OHM, 0603, 1/10W, 5% 199403-750
R4204 10K, 0603, 1/10W, 5% 199403-103
R4300 1.8K, ARRAY, SMT, 4 POS, 5% 186433-1824
R4301 1.8K, ARRAY, SMT, 4 POS, 5% 186433-1824
R4302 1.8K, ARRAY, SMT, 4 POS, 5% 186433-1824
R4500 100 OHM, 0603, 1/10W, 5% 199403-101
R4501 100 OHM, 0603, 1/10W, 5% 199403-101
R4503 100 OHM, 0603, 1/10W, 5% 199403-101
R4505 100 OHM, 0603, 1/10W, 5% 199403-101
R4600 1.21K, 0603, 1/10W, 1% 191465-1211
R4602 47K, 0603, 1/10W, 5% 199403-473
R4603 47K, 0603, 1/10W, 5% 199403-473
R4604 47K, 0603, 1/10W, 5% 199403-473
R4700 4.7K, 0603, 1/10W, 5% 199403-472
R4701 75 OHM, 0603, 1/10W, 5% 199403-750
R6000 3.3K, 0603, 1/10W, 5% 199403-332
R6001 1.00K, 0805, 1/10W, 5% 133626-1025
R6100 2.0K, 0603, 1/10W, 5% 199403-202
R6101 10K, 0603, 1/10W, 5% 199403-103
R6102 2.7K, 0603, 1/10W, 5% 199403-272
R6103 300 OHM, 0603, 1/10W, 5% 199403-301
R6104 75 OHM, 0603, 1/10W, 5% 199403-750
R6105 75 OHM, 0603, 1/10W, 5% 199403-750
R6500 330 OHM, 0603, 1/10W, 5% 199403-331
R6502 1K, 0603, 1/10W, 5% 199403-102
R7000 470 OHM, 0603, 1/10W, 5% 199403-471
R7001 22 OHM, 0603, 1/10W, 5% 199403-220
R7100 75 OHM, 0603, 1/10W,,5% 199403-750
R7102 4.7K, 0603, 1/10W, 5% 199403-472
R7103 4.7K, 0603, 1/10W, 5% 199403-472
R7104 75 OHM, 0603, 1/10W, 5% 199403-750
R7105 75 OHM, 0603, 1/10W, 5% 199403-750
R7106 75 OHM, 0603, 1/10W, 5% 199403-750
R7107 2.0K, 0603, 1/10W, 5% 199403-202
R7108 75 OHM, 0603, 1/10W, 5% 199403-750
R7109 75 OHM, 0603, 1/10W, 5% 199403-750
R7110 75 OHM, 0603, 1/10W, 5% 199403-750
R7111 75 OHM, 0603, 1/10W, 5% 199403-750
R7112 75 OHM, 0603, 1/10W, 5% 199403-750
R7113 75 OHM, 0603, 1/10W, 5% 199403-750
R7114 75 OHM, 0603, 1/10W, 5% 199403-750
R7200 100K, 0603, 1/10W, 5% 199403-104
