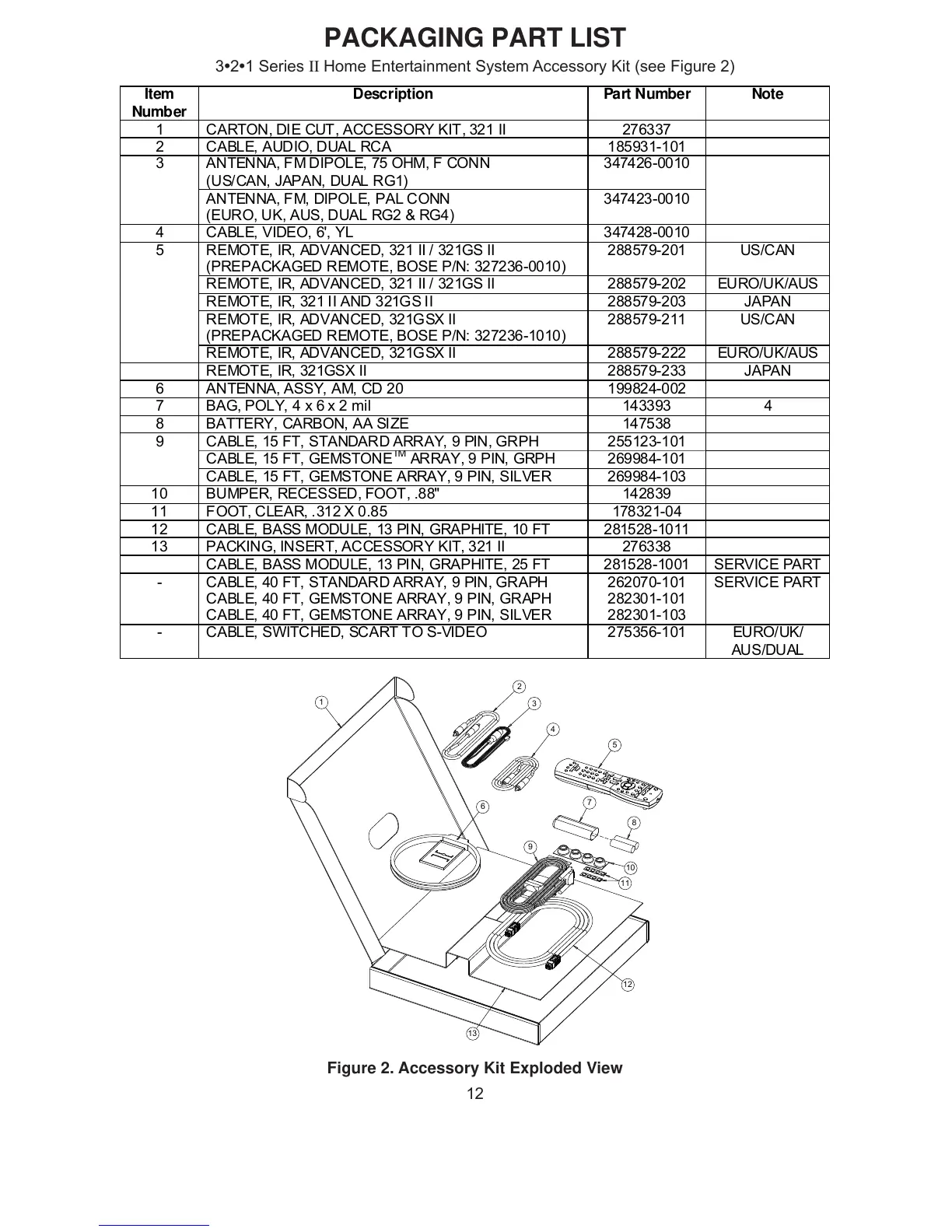

Figure 2. Accessory Kit Exploded View
PACKAGING PART LIST
3•2•1 Series II Home Entertainment System Accessory Kit (see Figure 2)
1
2
3
4
5
6
7
8
9
10
11
12
13
Item
Number
Description Part Numbe
r
Note
1 CARTON, DIE CUT , ACCESSORY KIT, 321 II 276337
2
CABL E, AUDIO, D UAL RCA 185 931-101
3
A
NTENNA, FM DIPOLE, 75 OHM, F CONN
(
US/CAN, JAPAN, DUAL RG1
)
347426-0010
ANTENNA, FM, DIPOLE, PAL CONN
(EURO, UK, AUS, DUAL RG2 & RG4)
347423-0010
4 CABLE, VIDEO, 6', YL 347428-0010
5 REMOTE, IR, ADVANCED, 321 II / 321GS II
(PREPACKAGED REMOTE, BOSE P/N: 327236-0010)
288579-201 US/CAN
REMOTE, IR, ADVANCED, 321 II / 321GS II 288579-202 EURO/UK/AUS
REMOTE, IR, 321 II AND 321GS II 288579-203 JAPAN
REMOTE, IR, ADVANCED, 321GSX II
(PREPACKAGED REMOTE, BOSE P/N: 327236-1010)
288579-211 US/CAN
REMOTE, IR, ADVANCED, 321GSX II 288579-222 EURO/UK/AUS
REMOTE, IR, 321GSX II 288579-233 JAPAN
6
A
NTENNA, ASSY, AM, CD 20 199824-002
7 BAG, POLY, 4 x 6 x 2 mil 143393 4
8 BATTERY, CARBON, AA SIZE 147538
9 CABLE, 15 FT, STANDAR D ARR AY, 9 PIN, GR PH 25512 3-1 01
CABLE, 15 FT, GEMSTONE
TM
ARRAY, 9 PIN, GRPH 269984-101
CABLE, 15 FT, GEMSTONE ARRAY, 9 PIN, SILVER 269984-103
10 BUMPER, RECESSED, FOOT, .88" 142839
11 FOOT, CLEAR, .312 X 0.8
5
178321-04
1
2
CABLE, BASS MODULE, 13 PIN, GRAPHITE, 10 FT 281528-1011
13 PACKING, INSERT, ACCESSORY KIT, 321 II 276338
CABL E, BASS MODU LE, 13 PI N, GRAPHITE, 25 FT 281528 -10 01 SERVIC E PART
- CABL E, 40 FT, STANDAR D ARRAY, 9 PIN , GR APH
CABLE, 40 FT, GEMSTONE ARRAY, 9 PIN, GRAPH
CABLE, 40 FT, GEMSTONE ARRAY, 9 PIN, SILVER
262070-101
282301-101
282301-103
SERVIC E PART
- CABL E, SWITCHED, SC ART T O S-VIDEO 27535 6-1 01 EU RO/ UK/
A
US/DUAL
