15

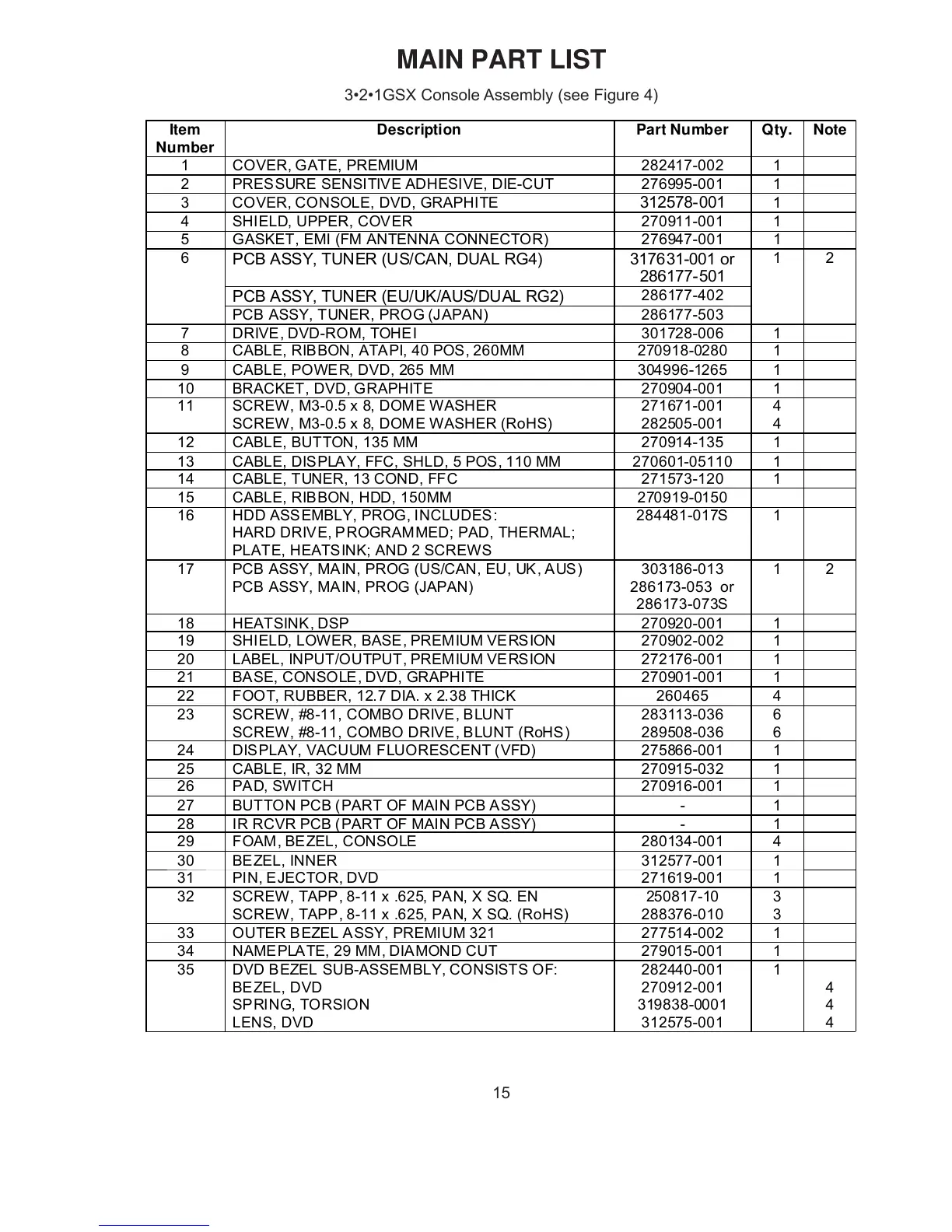

MAIN PART LIST
3•2•1GSX Console Assembly (see Figure 4)
Item
Number
Description Part Number Qty. Note
1 COVER, GATE, PREMIUM 282417-002 1
2 PRESSURE SENSITIVE ADHESIVE, DIE-CUT 276995-001 1
3 COVER, CONSOLE, DVD, GRAPHITE 312578-001 1
4 SHIELD, UPPER, COVER 270911-001 1
5 GASKET, EMI (FM ANTENNA CONNECTOR) 276947-001 1
6
PCB ASSY, TUNER (US/CAN, DUAL RG4) 317631-001 or
286177-501
1 2
PCB ASSY, TUNER (EU/UK/AUS/DUAL RG2)
286177-402
PCB ASSY, TUNER, PROG (JAPAN) 286177-503
7 DRIVE, DVD-ROM, TOHEI 301728-006 1
8 CABLE, RIBBON, ATAPI, 40 POS, 260MM 270918-0280 1
9 CABLE, POWER, DVD, 265 MM 304996-1265 1
10 BRACKET, DVD, GRAPHITE 270904-001 1
11 SCREW, M3-0.5 x 8, DOME WASHER 271671-001 4
SCREW, M3-0.5 x 8, DOME WASHER (RoHS) 282505-001 4
12 CABLE, BUTTON, 135 MM 270914-135 1
13 CABLE, DISPLAY, FFC, SHLD, 5 POS, 110 MM 270601-05110 1
14 CABLE, TUNER, 13 COND, FFC 271573-120 1
15 CABLE, RIBBON, HDD, 150MM 270919-0150
16 HDD ASSEMBLY, PROG, INCLUDES:
HARD DRIVE, PROGRAMMED; PAD, THERMAL;
PLATE, HEATSINK; AND 2 SCREWS
284481-017S 1
17 PCB ASSY, MAIN, PROG (US/CAN, EU, UK, AUS) 303186-013 1 2
PCB ASSY, MAIN, PROG (JAPAN) 286173-053 or
286173-073S
18 HEATSINK, DSP 270920-001 1
19 SHIELD, LOWER, BASE, PREMIUM VERSION 270902-002 1
20 LABEL, INPUT/OUTPUT, PREMIUM VERSION 272176-001 1
21 BASE, CONSOLE, DVD, GRAPHITE 270901-001 1
22 FOOT, RUBBER, 12.7 DIA. x 2.38 THICK 260465 4
23 SCREW, #8-11, COMBO DRIVE, BLUNT 283113-036 6
SCREW, #8-11, COMBO DRIVE, BLUNT
- 1
29 FOAM, BEZEL, CONSOLE 280134-001 4
30 BEZEL, INNER 312577-001 1
31 PIN, EJECTOR, DVD 271619-001 1
32 SCREW, TAPP, 8-11 x .625, PAN, X SQ. EN 250817-10 3
SCREW, TAPP, 8-11 x .625, PAN, X SQ. (RoHS) 288376-010 3
33 OUTER BEZEL ASSY, PREMIUM 321 277514-002 1
34 NAMEPLATE, 29 MM, DIAMOND CUT 279015-001 1
35 DVD BEZEL SUB-ASSEMBLY, CONSISTS OF:
BEZEL, DVD
SPRING, TORSION
LENS, DVD
282440-001
270912-001
319838-0001
312575-001
1
4
4
4
To Next Page
