Bose 3-2-1GS Series II User Manual

38

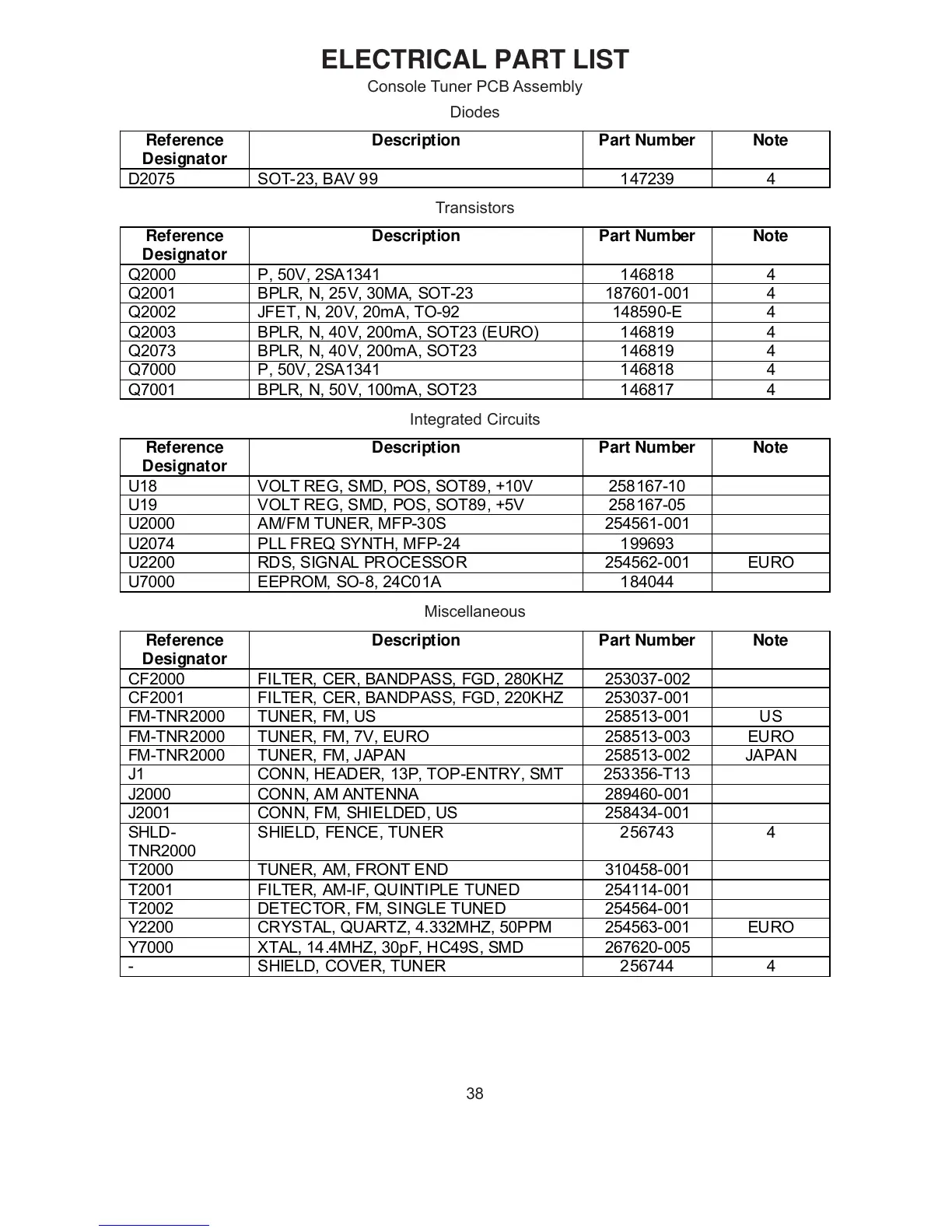

ELECTRICAL PART LIST
Console Tuner PCB Assembly
Transistors
Integrated Circuits
Miscellaneous
Diodes
Reference
Designator
Description Part Numbe
r
Note
D2075 SOT-23, BAV 99 147239 4
Reference
Designator
Description Part Numbe
r
Note
Q2000 P, 50V, 2SA1341 146818 4
Q2001 BPLR, N, 25V, 30MA, SOT-23 187601-001 4
Q2002 JFET, N, 20V, 20mA, TO-92 148590-E 4
Q2003 BPLR, N, 40V, 200mA, SOT23
(
EURO
)
146819 4
Q2073 BPLR, N, 40V, 200mA, SOT23 146819 4
Q7000 P, 50V, 2SA1341 146818 4
Q7001 BPLR, N, 50V, 100mA, SOT23 146817 4
Reference
Designator
Description Part Numbe
r
Note
U18 VOLT REG, SMD, POS, SOT89, +10V 258167-10
U19 VOLT REG, SMD, POS, SOT89, +5V 258167-05
U2000 AM/FM TUNER, MFP-30S 254561-001
U2074 PLL FREQ SYNTH, MFP-24 199693
U2200 RDS, SIGNAL PROCESSOR 254562-001 EURO
U7000 EEPROM, SO-8, 24C01A 184044
Reference
Designator
Description Part Numbe
r
Note
CF2000 FILTER, CER, BANDPASS, FGD, 280KHZ 253037-002
CF2001 FILTER, CER, BANDPASS, FGD, 220KHZ 253037-001
FM-TNR2000 TUNER, FM, US 258513-001 US
FM-TNR2000 TUNER, FM, 7V, EURO 258513-003 EURO
FM-TNR2000 TUNER, FM, JAPAN 258513-002 JAPAN
J1 CONN, HEADER, 13P, TOP-ENTRY, SMT 253356-T13
J2000 CONN, AM ANTENNA 289460-001
J2001 CONN, FM, SHIELDED, US 258434-001
SHLD-
TNR2000
SHIELD, FENCE, TUNER 256743 4
T2000 TUNER, AM, FRONT END 310458-001
T2001 FILTER, AM-IF, QUINTIPLE TUNED 254114-001
T2002 DETECTOR, FM, SINGLE TUNED 254564-001
Y2200 CRYSTAL, QUARTZ, 4.332MHZ, 50PPM 254563-001 EURO
Y7000 XTAL, 14.4MHZ, 30
p
F, HC49S, SMD 267620-005
- SHIELD, COVER, TUNER 256744 4
