Bose 3-2-1GS Series II User Manual

18

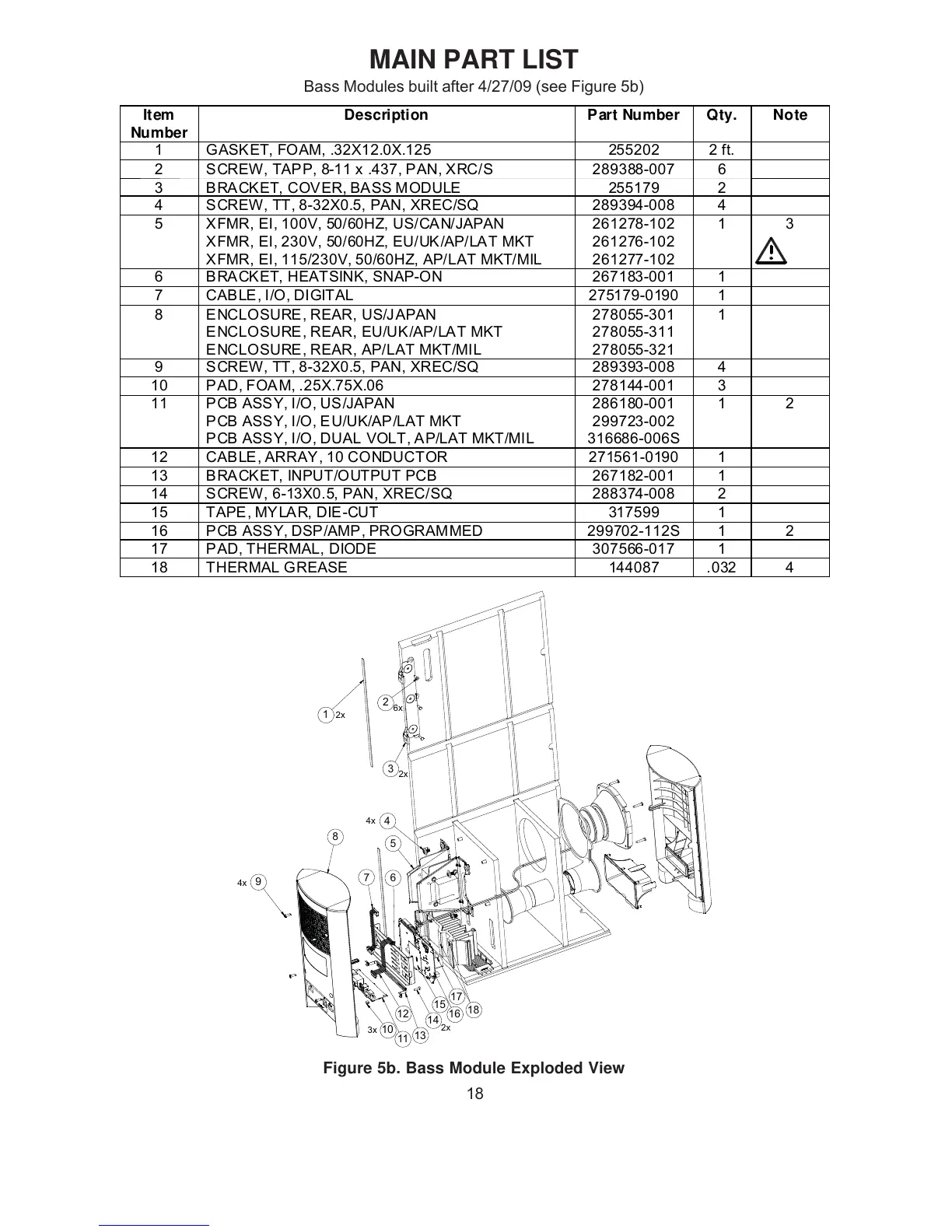

Figure 5b. Bass Module Exploded View
MAIN PART LIST
Bass Modules built after 4/27/09 (see Figure 5b)
18
17
16
15
14
2x
13
12
11
10
3x
9
4x
8
7
6
5
4
4x
3
2x
2
6x
1
2x
Item
Number
Description Part Number Qt
y
. Note
1 GASKET, FOAM, .32X12.0X.125 255202 2 ft.
2 SCREW, TAPP, 8-11 x .437, PAN, XRC/S 289388-007 6
3 BRACKET, COVER, BASS MODULE 25517
9
2
4 SCREW, TT, 8-32X0.5, PAN, XREC/SQ 289394-008 4
5 XFMR, EI, 100V, 50/60HZ, US/CAN/JAPAN 261278-102 1 3
XFMR, EI, 230V, 50/60HZ, EU/UK/AP/LAT MKT 261276-102
XFMR, EI, 115/230V, 50/60HZ, AP/LAT MKT/MIL 261277-102
6 BRACKET, HEATSINK, SNAP-ON 267183-001 1
7 CABLE, I/O, DIGITAL 275179-0190 1
8 ENCLOSURE, REAR, US/JAPAN 278055-301 1
ENCLOSURE, REAR, EU/UK/AP/LAT MKT 278055-311
ENCLOSURE, REAR, AP/LAT MKT/MIL 278055-321
9 SCREW, TT, 8-32X0.5, PAN, XREC/SQ 289393-008 4
10 PAD, FOAM, .25X.75X.06 278144-001 3
11 PCB ASSY, I/O, US/JAPAN 286180-001 1 2
PCB ASSY, I/O, EU/UK/AP/LAT MKT 299723-002
PCB ASSY, I/O, DUAL VOLT, AP/LAT MKT/MIL 316686-006S
12 CABLE, ARRAY, 10 CONDUCTOR 271561-0190 1
13 BRACKET, INPUT/OUTPUT PCB 267182-001 1
14 SCREW, 6-13X0.5, PAN, XREC/SQ 288374-008 2
15 TAPE, MYLAR, DIE-CUT 317599 1
1
6
PCB ASSY, DSP/AMP, PROGRAMMED 299702-112S 1 2
17 PAD, THERMAL, DIODE 307566-017 1
18 THERMAL GREASE 144087 .032 4
