Bose 3-2-1GS Series II User Manual

23

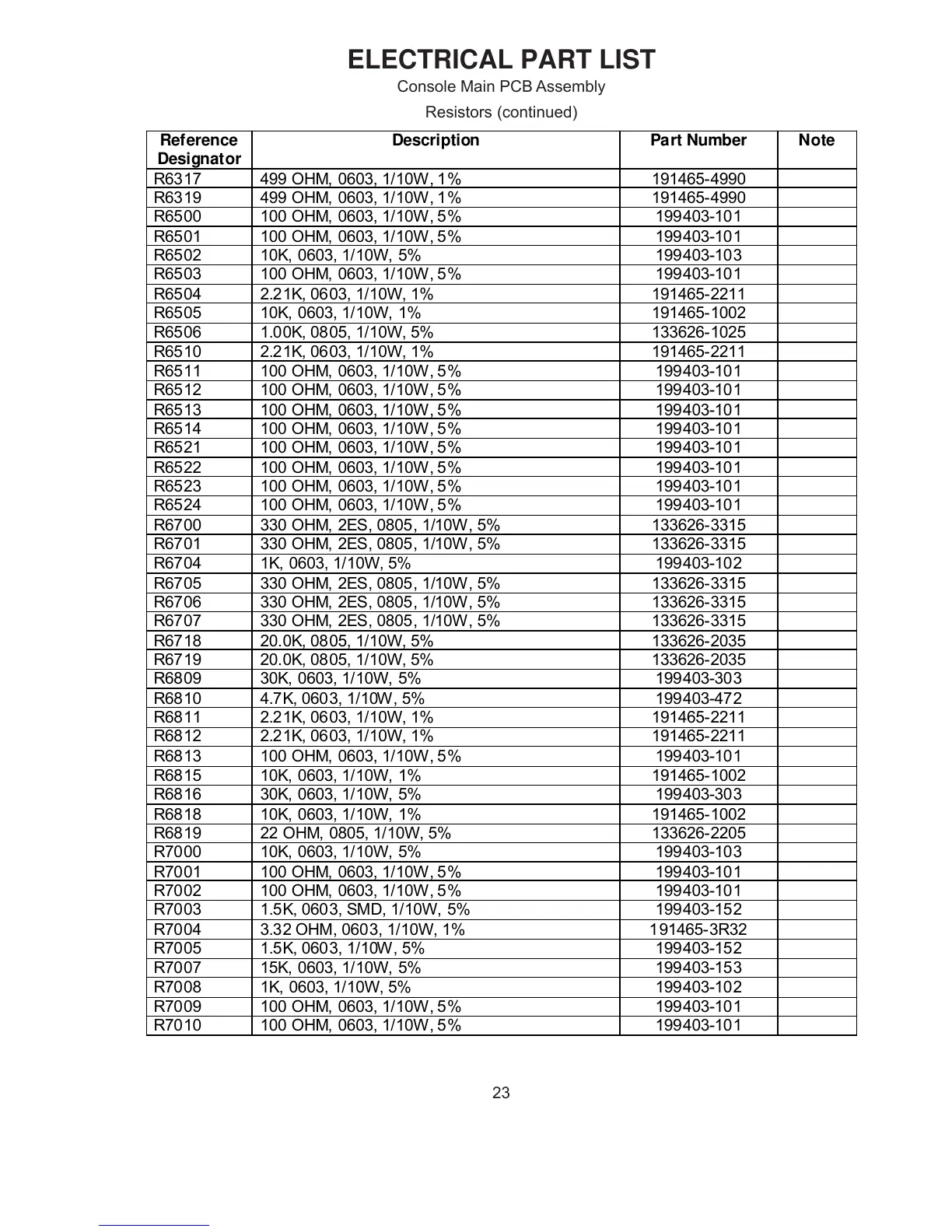

ELECTRICAL PART LIST
Console Main PCB Assembly
Resistors (continued)
Reference
Designator
Description Part Numbe
r
Note
R6317 499 OHM, 0603, 1/10W, 1% 191465-4990
R6319 499 OHM, 0603, 1/10W, 1% 191465-4990
R6500 100 OHM, 0603, 1/10W, 5% 199403-101
R6501 100 OHM, 0603, 1/10W, 5% 199403-101
R6502 10K, 0603, 1/10W, 5% 199403-103
R6503 100 OHM, 0603, 1/10W, 5% 199403-101
R6504 2.21K, 0603, 1/10W, 1% 191465-2211
R6505 10K, 0603, 1/10W, 1% 191465-1002
R6506 1.00K, 0805, 1/10W, 5% 133626-1025
R6510 2.21K, 0603, 1/10W, 1% 191465-2211
R6511 100 OHM, 0603, 1/10W, 5% 199403-101
R6512 100 OHM, 0603, 1/10W, 5% 199403-101
R6513 100 OHM, 0603, 1/10W, 5% 199403-101
R6514 100 OHM, 0603, 1/10W, 5% 199403-101
R6521 100 OHM, 0603, 1/10W, 5% 199403-101
R6522 100 OHM, 0603, 1/10W, 5% 199403-101
R6523 100 OHM, 0603, 1/10W, 5% 199403-101
R6524 100 OHM, 0603, 1/10W, 5% 199403-101
R6700 330 OHM, 2ES, 0805, 1/10W, 5% 133626-3315
R6701 330 OHM, 2ES, 0805, 1/10W, 5% 133626-3315
R6704 1K, 0603, 1/10W, 5% 199403-102
R6705 330 OHM, 2ES, 0805, 1/10W, 5% 133626-3315
R6706 330 OHM, 2ES, 0805, 1/10W, 5% 133626-3315
R6707 330 OHM, 2ES, 0805, 1/10W, 5% 133626-3315
R6718 20.0K, 0805, 1/10W, 5% 133626-2035
R6719 20.0K, 0805, 1/10W, 5% 133626-2035
R6809 30K, 0603, 1/10W, 5% 199403-303
R6810 4.7K, 0603, 1/10W, 5% 199403-472
R6811 2.21K, 0603, 1/10W, 1% 191465-2211
R6812 2.21K, 0603, 1/10W, 1% 191465-2211
R6813 100 OHM, 0603, 1/10W, 5% 199403-101
R6815 10K, 0603, 1/10W, 1% 191465-1002
R6816 30K, 0603, 1/10W, 5% 199403-303
R6818 10K, 0603, 1/10W, 1% 191465-1002
R6819 22 OHM, 0805, 1/10W, 5% 133626-2205
R7000 10K, 0603, 1/10W, 5% 199403-103
R7001 100 OHM, 0603, 1/10W, 5% 199403-101
R7002 100 OHM, 0603, 1/10W, 5% 199403-101
R7003 1.5K, 0603, SMD, 1/10W, 5% 199403-152
R7004 3.32 OHM, 0603, 1/10W, 1% 191465-3R32
R7005 1.5K, 0603, 1/10W, 5% 199403-152
R7007 15K, 0603, 1/10W, 5% 199403-153
R7008 1K, 0603, 1/10W, 5% 199403-102
R7009 100 OHM, 0603, 1/10W, 5% 199403-101
R7010 100 OHM, 0603, 1/10W, 5% 199403-101
