Bose 3-2-1GS Series II User Manual

24

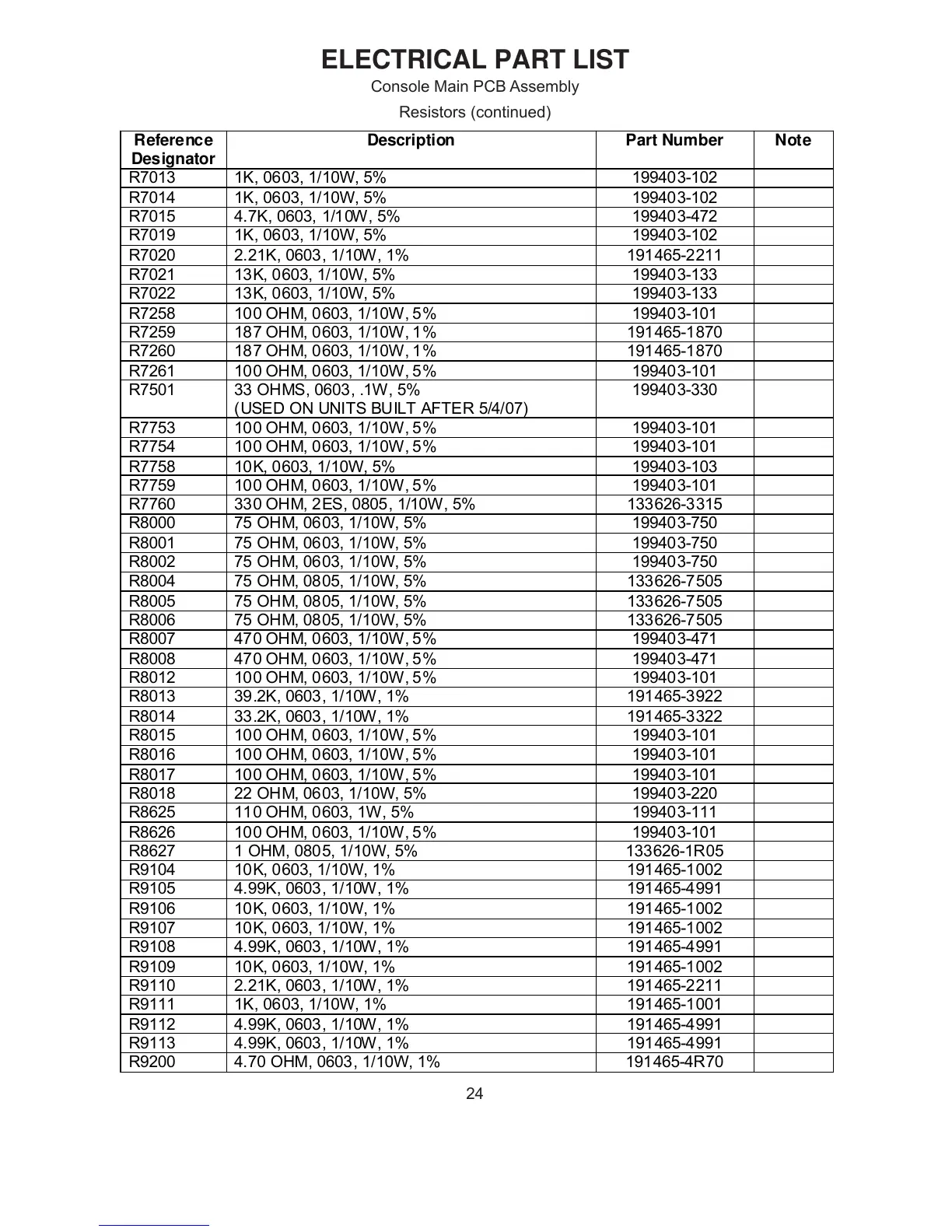

ELECTRICAL PART LIST
Console Main PCB Assembly
Resistors (continued)
Reference
Designator
Description Part Numbe
r
Note
R7013 1K, 0603, 1/10W, 5% 199403-102
R7014 1K, 0603, 1/10W, 5% 199403-102
R7015 4.7K, 0603, 1/10W, 5% 199403-472
R7019 1K, 0603, 1/10W, 5% 199403-102
R7020 2.21K, 0603, 1/10W, 1% 191465-2211
R7021 13K, 0603, 1/10W, 5% 199403-133
R7022 13K, 0603, 1/10W, 5% 199403-133
R7258 100 OHM, 0603, 1/10W, 5% 199403-101
R7259 187 OHM, 0603, 1/10W, 1% 191465-1870
R7260 187 OHM, 0603, 1/10W, 1% 191465-1870
R7261 100 OHM, 0603, 1/10W, 5% 199403-101
R7501 33 OHMS, 0603, .1W, 5%
(
USED ON UNITS BUILT AFTE
R
5/4/07
)
199403-330
R7753 100 OHM, 0603, 1/10W, 5% 199403-101
R7754 100 OHM, 0603, 1/10W, 5% 199403-101
R7758 10K, 0603, 1/10W, 5% 199403-103
R7759 100 OHM, 0603, 1/10W, 5% 199403-101
R7760 330 OHM, 2ES, 0805, 1/10W, 5% 133626-3315
R8000 75 OHM, 0603, 1/10W, 5% 199403-750
R8001 75 OHM, 0603, 1/10W, 5% 199403-750
R8002 75 OHM, 0603, 1/10W, 5% 199403-750
R8004 75 OHM, 0805, 1/10W, 5% 133626-7505
R8005 75 OHM, 0805, 1/10W, 5% 133626-7505
R8006 75 OHM, 0805, 1/10W, 5% 133626-7505
R8007 470 OHM, 0603, 1/10W, 5% 199403-471
R8008 470 OHM, 0603, 1/10W, 5% 199403-471
R8012 100 OHM, 0603, 1/10W, 5% 199403-101
R8013 39.2K, 0603, 1/10W, 1% 191465-3922
R8014 33.2K, 0603, 1/10W, 1% 191465-3322
R8015 100 OHM, 0603, 1/10W, 5% 199403-101
R8016 100 OHM, 0603, 1/10W, 5% 199403-101
R8017 100 OHM, 0603, 1/10W, 5% 199403-101
R8018 22 OHM, 0603, 1/10W, 5% 199403-220
R8625 110 OHM, 0603, 1W, 5% 199403-111
R8626 100 OHM, 0603, 1/10W, 5% 199403-101
R8627 1 OHM, 0805, 1/10W, 5% 133626-1R05
R9104 10K, 0603, 1/10W, 1% 191465-1002
R9105 4.99K, 0603, 1/10W, 1% 191465-4991
R9106 10K, 0603, 1/10W, 1% 191465-1002
R9107 10K, 0603, 1/10W, 1% 191465-1002
R9108 4.99K, 0603, 1/10W, 1% 191465-4991
R9109 10K, 0603, 1/10W, 1% 191465-1002
R9110 2.21K, 0603, 1/10W, 1% 191465-2211
R9111 1K, 0603, 1/10W, 1% 191465-1001
R9112 4.99K, 0603, 1/10W, 1% 191465-4991
R9113 4.99K, 0603, 1/10W, 1% 191465-4991
R9200 4.70 OHM, 0603, 1/10W, 1% 191465-4R70
