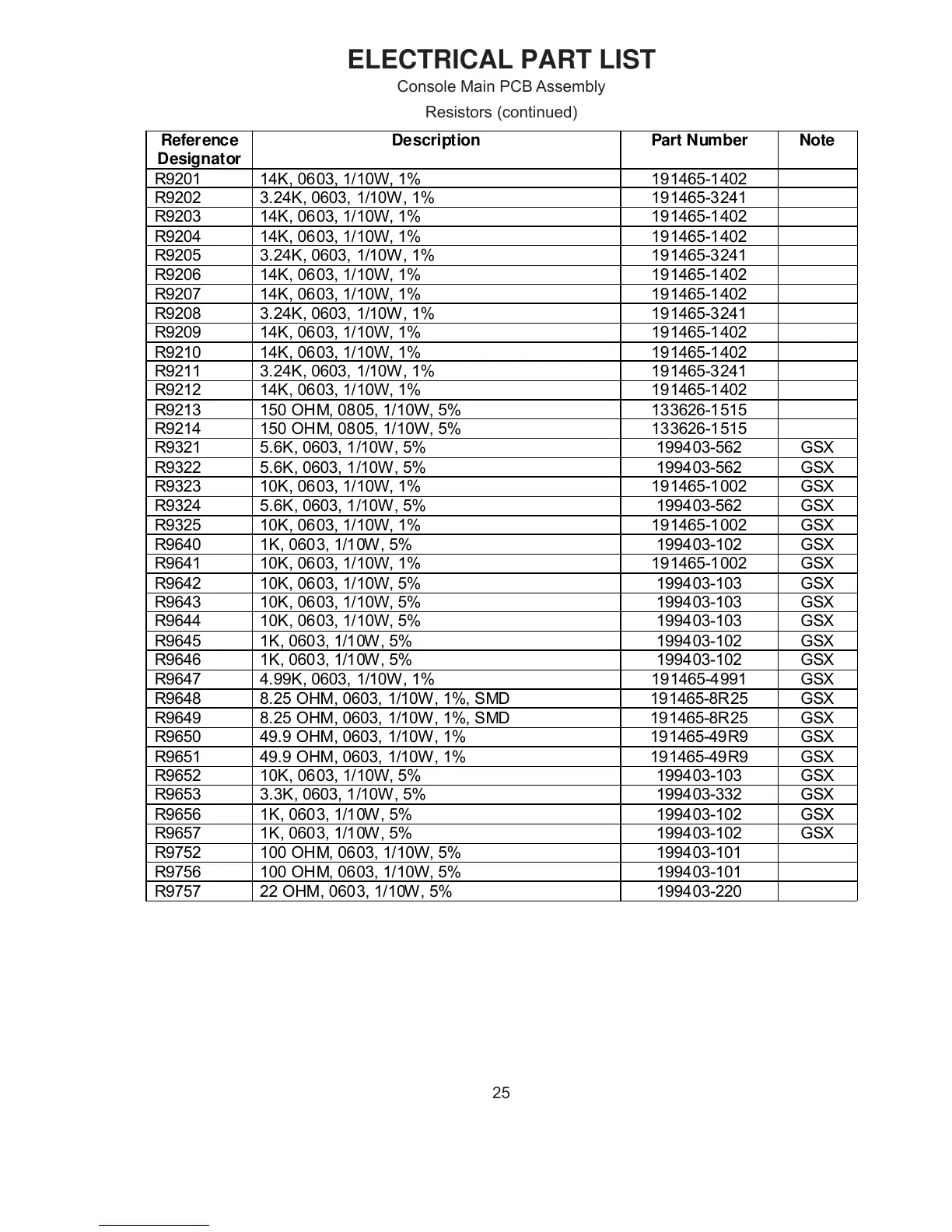

ELECTRICAL PART LIST
Console Main PCB Assembly
Resistors (continued)
Reference
Designator
Description Part Numbe
r
Note
R9201 14K, 0603, 1/10W, 1% 191465-1402
R9202 3.24K, 0603, 1/10W, 1% 191465-3241
R9203 14K, 0603, 1/10W, 1% 191465-1402
R9204 14K, 0603, 1/10W, 1% 191465-1402
R9205 3.24K, 0603, 1/10W, 1% 191465-3241
R9206 14K, 0603, 1/10W, 1% 191465-1402
R9207 14K, 0603, 1/10W, 1% 191465-1402
R9208 3.24K, 0603, 1/10W, 1% 191465-3241
R9209 14K, 0603, 1/10W, 1% 191465-1402
R9210 14K, 0603, 1/10W, 1% 191465-1402
R9211 3.24K, 0603, 1/10W, 1% 191465-3241
R9212 14K, 0603, 1/10W, 1% 191465-1402
R9213 150 OHM, 0805, 1/10W, 5% 133626-1515
R9214 150 OHM, 0805, 1/10W, 5% 133626-1515
R9321 5.6K, 0603, 1/10W, 5% 199403-562 GSX
R9322 5.6K, 0603, 1/10W, 5% 199403-562 GSX
R9323 10K, 0603, 1/10W, 1% 191465-1002 GSX
R9324 5.6K, 0603, 1/10W, 5% 199403-562 GSX
R9325 10K, 0603, 1/10W, 1% 191465-1002 GSX
R9640 1K, 0603, 1/10W, 5% 199403-102 GSX
R9641 10K, 0603, 1/10W, 1% 191465-1002 GSX
R9642 10K, 0603, 1/10W, 5% 199403-103 GSX
R9643 10K, 0603, 1/10W, 5% 199403-103 GSX
R9644 10K, 0603, 1/10W, 5% 199403-103 GSX
R9645 1K, 0603, 1/10W, 5% 199403-102 GSX
R9646 1K, 0603, 1/10W, 5% 199403-102 GSX
R9647 4.99K, 0603, 1/10W, 1% 191465-4991 GSX
R9648 8.25 OHM, 0603, 1/10W, 1%, SMD 191465-8R25 GSX
R9649 8.25 OHM, 0603, 1/10W, 1%, SMD 191465-8R25 GSX
R9650 49.9 OHM, 0603, 1/10W, 1% 191465-49R9 GSX
R9651 49.9 OHM, 0603, 1/10W, 1% 191465-49R9 GSX
R9652 10K, 0603, 1/10W, 5% 199403-103 GSX
R9653 3.3K, 0603, 1/10W, 5% 199403-332 GSX
R9656 1K, 0603, 1/10W, 5% 199403-102 GSX
R9657 1K, 0603, 1/10W, 5% 199403-102 GSX
R9752 100 OHM, 0603, 1/10W, 5% 199403-101
R9756 100 OHM, 0603, 1/10W, 5% 199403-101
R9757 22 OHM, 0603, 1/10W, 5% 199403-220
