Bose 3-2-1GS Series II User Manual

26

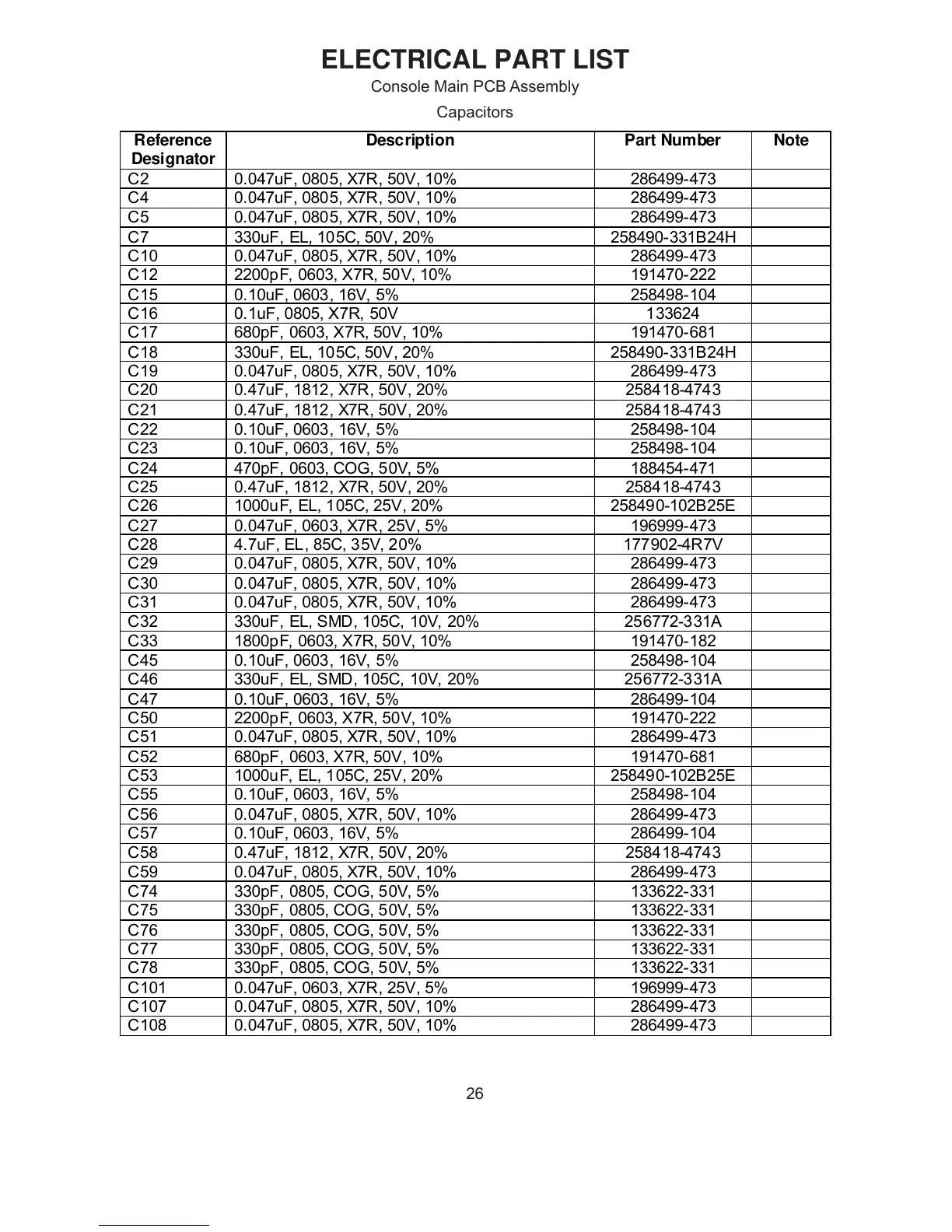

ELECTRICAL PART LIST
Console Main PCB Assembly
Capacitors
Reference
Designator
Description Part Numbe
r
Note
C2 0.047uF, 0805, X7R, 50V, 10% 286499-473
C4 0.047uF, 0805, X7R, 50V, 10% 286499-473
C5 0.047uF, 0805, X7R, 50V, 10% 286499-473
C7 330uF, EL, 105C, 50V, 20% 258490-331B24H
C10 0.047uF, 0805, X7R, 50V, 10% 286499-473
C12 2200pF, 0603, X7R, 50V, 10% 191470-222
C15 0.10uF, 0603, 16V, 5% 258498-104
C16 0.1uF, 0805, X7R, 50V 133624
C17 680pF, 0603, X7R, 50V, 10% 191470-681
C18 330uF, EL, 105C, 50V, 20% 258490-331B24H
C19 0.047uF, 0805, X7R, 50V, 10% 286499-473
C20 0.47uF, 1812, X7R, 50V, 20% 258418-4743
C21 0.47uF, 1812, X7R, 50V, 20% 258418-4743
C22 0.10uF, 0603, 16V, 5% 258498-104
C23 0.10uF, 0603, 16V, 5% 258498-104
C24 470
p
F, 0603, COG, 50V, 5% 188454-471
C25 0.47uF, 1812, X7R, 50V, 20% 258418-4743
C26 1000uF, EL, 105C, 25V, 20% 258490-102B25E
C27 0.047uF, 0603, X7R, 25V, 5% 196999-473
C28 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C29 0.047uF, 0805, X7R, 50V, 10% 286499-473
C30 0.047uF, 0805, X7R, 50V, 10% 286499-473
C31 0.047uF, 0805, X7R, 50V, 10% 286499-473
C32 330uF, EL, SMD, 105C, 10V, 20% 256772-331A
C33 1800
p
F, 0603, X7R, 50V, 10% 191470-182
C45 0.10uF, 0603, 16V, 5% 258498-104
C46 330uF, EL, SMD, 105C, 10V, 20% 256772-331A
C47 0.10uF, 0603, 16V, 5% 286499-104
C50 2200pF, 0603, X7R, 50V, 10% 191470-222
C51 0.047uF, 0805, X7R, 50V, 10% 286499-473
C52 680pF, 0603, X7R, 50V, 10% 191470-681
C53 1000uF, EL, 105C, 25V, 20% 258490-102B25E
C55 0.10uF, 0603, 16V, 5% 258498-104
C56 0.047uF, 0805, X7R, 50V, 10% 286499-473
C57 0.10uF, 0603, 16V, 5% 286499-104
C58 0.47uF, 1812, X7R, 50V, 20% 258418-4743
C59 0.047uF, 0805, X7R, 50V, 10% 286499-473
C74 330pF, 0805, COG, 50V, 5% 133622-331
C75 330pF, 0805, COG, 50V, 5% 133622-331
C76 330pF, 0805, COG, 50V, 5% 133622-331
C77 330pF, 0805, COG, 50V, 5% 133622-331
C78 330pF, 0805, COG, 50V, 5% 133622-331
C101 0.047uF, 0603, X7R, 25V, 5% 196999-473
C107 0.047uF, 0805, X7R, 50V, 10% 286499-473
C108 0.047uF, 0805, X7R, 50V, 10% 286499-473
