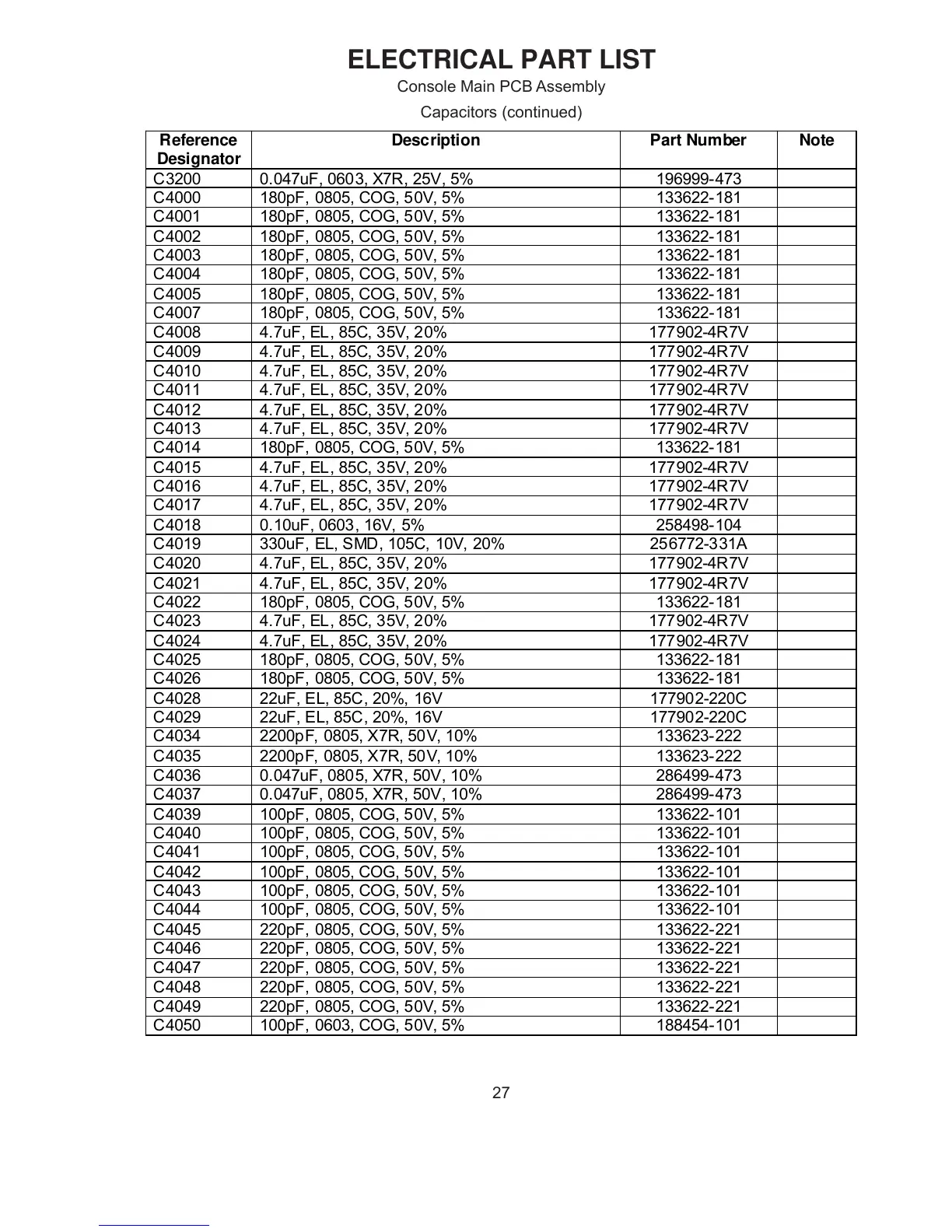

ELECTRICAL PART LIST
Capacitors (continued)
Console Main PCB Assembly
Reference
Designator
Description Part Numbe
r
Note
C3200 0.047uF, 0603, X7R, 25V, 5% 196999-473
C4000 180pF, 0805, COG, 50V, 5% 133622-181
C4001 180pF, 0805, COG, 50V, 5% 133622-181
C4002 180
p
F, 0805, COG, 50V, 5% 133622-181
C4003 180pF, 0805, COG, 50V, 5% 133622-181
C4004 180pF, 0805, COG, 50V, 5% 133622-181
C4005 180
p
F, 0805, COG, 50V, 5% 133622-181
C4007 180pF, 0805, COG, 50V, 5% 133622-181
C4008 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4009 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4010 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4011 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4012 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4013 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4014 180pF, 0805, COG, 50V, 5% 133622-181
C4015 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4016 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4017 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4018 0.10uF, 0603, 16V, 5% 258498-104
C4019 330uF, EL, SMD, 105C, 10V, 20% 256772-331A
C4020 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4021 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4022 180pF, 0805, COG, 50V, 5% 133622-181
C4023 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4024 4.7uF, EL, 85C, 35V, 20% 177902-4R7V
C4025 180pF, 0805, COG, 50V, 5% 133622-181
C4026 180pF, 0805, COG, 50V, 5% 133622-181
C4028 22uF, EL, 85C, 20%, 16V 177902-220C
C4029 22uF, EL, 85C, 20%, 16V 177902-220C
C4034 2200pF, 0805, X7R, 50V, 10% 133623-222
C4035 2200pF, 0805, X7R, 50V, 10% 133623-222
C4036 0.047uF, 0805, X7R, 50V, 10% 286499-473
C4037 0.047uF, 0805, X7R, 50V, 10% 286499-473
C4039 100pF, 0805, COG, 50V, 5% 133622-101
C4040 100pF, 0805, COG, 50V, 5% 133622-101
C4041 100pF, 0805, COG, 50V, 5% 133622-101
C4042 100
p
F, 0805, COG, 50V, 5% 133622-101
C4043 100pF, 0805, COG, 50V, 5% 133622-101
C4044 100pF, 0805, COG, 50V, 5% 133622-101
C4045 220pF, 0805, COG, 50V, 5% 133622-221
C4046 220pF, 0805, COG, 50V, 5% 133622-221
C4047 220pF, 0805, COG, 50V, 5% 133622-221
C4048 220pF, 0805, COG, 50V, 5% 133622-221
C4049 220pF, 0805, COG, 50V, 5% 133622-221
C4050 100pF, 0603, COG, 50V, 5% 188454-101
