Bose 3-2-1GS Series II User Manual

28

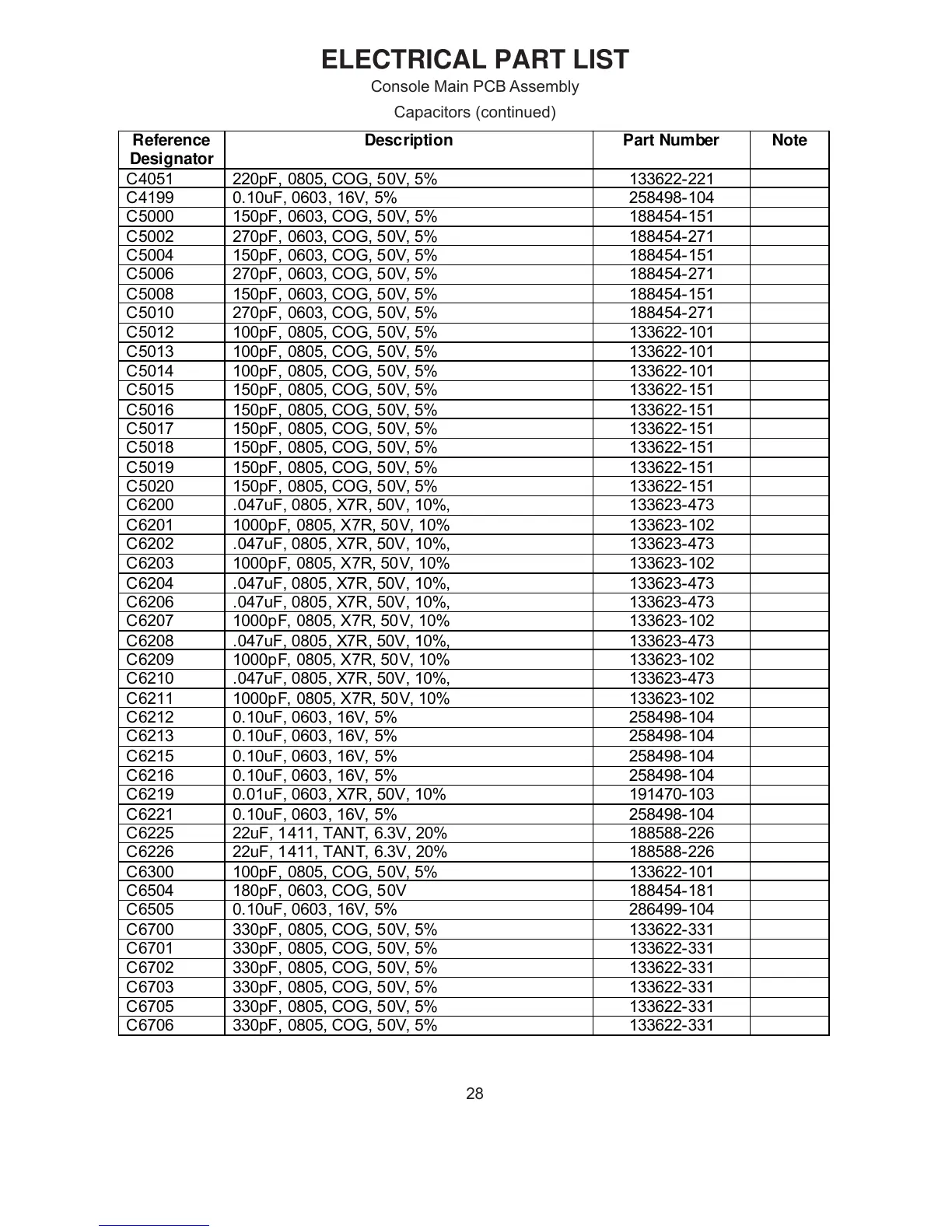

ELECTRICAL PART LIST
Capacitors (continued)
Console Main PCB Assembly
Reference
Designator
Description Part Numbe
r
Note
C4051 220
p
F, 0805, COG, 50V, 5% 133622-221
C4199 0.10uF, 0603, 16V, 5% 258498-104
C5000 150pF, 0603, COG, 50V, 5% 188454-151
C5002 270
p
F, 0603, COG, 50V, 5% 188454-271
C5004 150pF, 0603, COG, 50V, 5% 188454-151
C5006 270pF, 0603, COG, 50V, 5% 188454-271
C5008 150
p
F, 0603, COG, 50V, 5% 188454-151
C5010 270pF, 0603, COG, 50V, 5% 188454-271
C5012 100pF, 0805, COG, 50V, 5% 133622-101
C5013 100
p
F, 0805, COG, 50V, 5% 133622-101
C5014 100pF, 0805, COG, 50V, 5% 133622-101
C5015 150pF, 0805, COG, 50V, 5% 133622-151
C5016 150
p
F, 0805, COG, 50V, 5% 133622-151
C5017 150pF, 0805, COG, 50V, 5% 133622-151
C5018 150pF, 0805, COG, 50V, 5% 133622-151
C5019 150
p
F, 0805, COG, 50V, 5% 133622-151
C5020 150pF, 0805, COG, 50V, 5% 133622-151
C6200 .047uF, 0805, X7R, 50V, 10%, 133623-473
C6201 1000
pF
, 0805, X7R, 50V, 10% 133623-102
C6202 .047uF, 0805, X7R, 50V, 10%, 133623-473
C6203 1000pF, 0805, X7R, 50V, 10% 133623-102
C6204 .047uF, 0805, X7R, 50V, 10%, 133623-473
C6206 .047uF, 0805, X7R, 50V, 10%, 133623-473
C6207 1000pF, 0805, X7R, 50V, 10% 133623-102
C6208 .047uF, 0805, X7R, 50V, 10%, 133623-473
C6209 1000pF, 0805, X7R, 50V, 10% 133623-102
C6210 .047uF, 0805, X7R, 50V, 10%, 133623-473
C6211 1000
pF
, 0805, X7R, 50V, 10% 133623-102
C6212 0.10uF, 0603, 16V, 5% 258498-104
C6213 0.10uF, 0603, 16V, 5% 258498-104
C6215 0.10uF, 0603, 16V, 5% 258498-104
C6216 0.10uF, 0603, 16V, 5% 258498-104
C6219 0.01uF, 0603, X7R, 50V, 10% 191470-103
C6221 0.10uF, 0603, 16V, 5% 258498-104
C6225 22uF, 1411, TANT, 6.3V, 20% 188588-226
C6226 22uF, 1411, TANT, 6.3V, 20% 188588-226
C6300 100
p
F, 0805, COG, 50V, 5% 133622-101
C6504 180pF, 0603, COG, 50V 188454-181
C6505 0.10uF, 0603, 16V, 5% 286499-104
C6700 330pF, 0805, COG, 50V, 5% 133622-331
C6701 330pF, 0805, COG, 50V, 5% 133622-331
C6702 330pF, 0805, COG, 50V, 5% 133622-331
C6703 330pF, 0805, COG, 50V, 5% 133622-331
C6705 330pF, 0805, COG, 50V, 5% 133622-331
C6706 330pF, 0805, COG, 50V, 5% 133622-331
