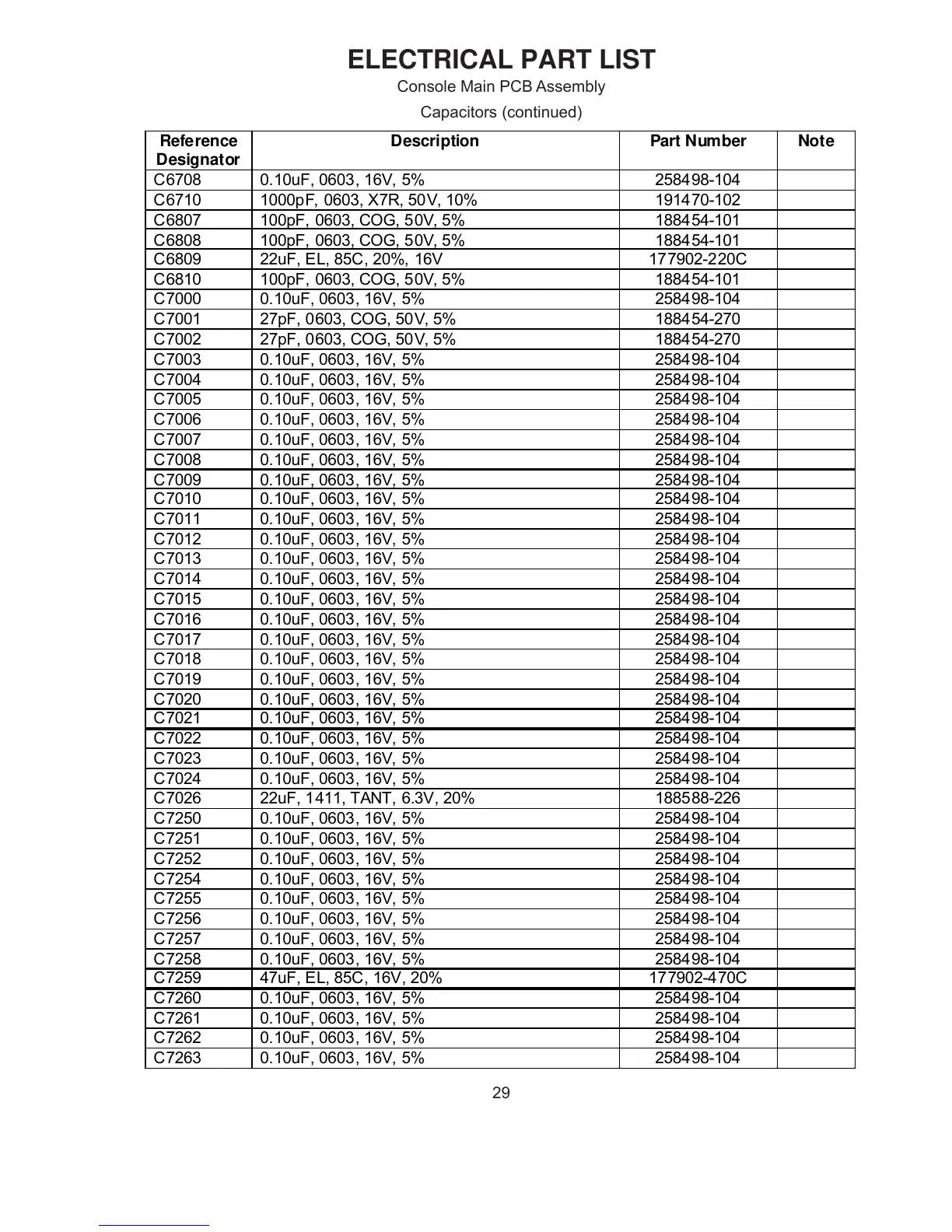

ELECTRICAL PART LIST
Capacitors (continued)
Console Main PCB Assembly
Reference
Designator
Description Part Number Note
C6708 0.10uF, 0603, 16V, 5% 258498-104
C6710 1000pF, 0603, X7R, 50V, 10% 191470-102
C6807 100
p
F, 0603, COG, 50V, 5% 188454-101
C6808 100
p
F, 0603, COG, 50V, 5% 188454-101
C6809 22uF, EL, 85C, 20%, 16V 177902-220C
C6810 100pF, 0603, COG, 50V, 5% 188454-101
C7000 0.10uF, 0603, 16V, 5% 258498-104
C7001 27pF, 0603, COG, 50V, 5% 188454-270
C7002 27pF, 0603, COG, 50V, 5% 188454-270
C7003 0.10uF, 0603, 16V, 5% 258498-104
C7004 0.10uF, 0603, 16V, 5% 258498-104
C7005 0.10uF, 0603, 16V, 5% 258498-104
C7006 0.10uF, 0603, 16V, 5% 258498-104
C7007 0.10uF, 0603, 16V, 5% 258498-104
C7008 0.10uF, 0603, 16V, 5% 258498-104
C7009 0.10uF, 0603, 16V, 5% 258498-104
C7010 0.10uF, 0603, 16V, 5% 258498-104
C7011 0.10uF, 0603, 16V, 5% 258498-104
C7012 0.10uF, 0603, 16V, 5% 258498-104
C7013 0.10uF, 0603, 16V, 5% 258498-104
C7014 0.10uF, 0603, 16V, 5% 258498-104
C7015 0.10uF, 0603, 16V, 5% 258498-104
C7016 0.10uF, 0603, 16V, 5% 258498-104
C7017 0.10uF, 0603, 16V, 5% 258498-104
C7018 0.10uF, 0603, 16V, 5% 258498-104
C7019 0.10uF, 0603, 16V, 5% 258498-104
C7020 0.10uF, 0603, 16V, 5% 258498-104
C7021 0.10uF, 0603, 16V, 5% 258498-104
C7022 0.10uF, 0603, 16V, 5% 258498-104
C7023 0.10uF, 0603, 16V, 5% 258498-104
C7024 0.10uF, 0603, 16V, 5% 258498-104
C7026 22uF, 1411, TANT, 6.3V, 20% 188588-226
C7250 0.10uF, 0603, 16V, 5% 258498-104
C7251 0.10uF, 0603, 16V, 5% 258498-104
C7252 0.10uF, 0603, 16V, 5% 258498-104
C7254 0.10uF, 0603, 16V, 5% 258498-104
C7255 0.10uF, 0603, 16V, 5% 258498-104
C7256 0.10uF, 0603, 16V, 5% 258498-104
C7257 0.10uF, 0603, 16V, 5% 258498-104
C7258 0.10uF, 0603, 16V, 5% 258498-104
C7259 47uF, EL, 85C, 16V, 20% 177902-470C
C7260 0.10uF, 0603, 16V, 5% 258498-104
C7261 0.10uF, 0603, 16V, 5% 258498-104
C7262 0.10uF, 0603, 16V, 5% 258498-104
C7263 0.10uF, 0603, 16V, 5% 258498-104
