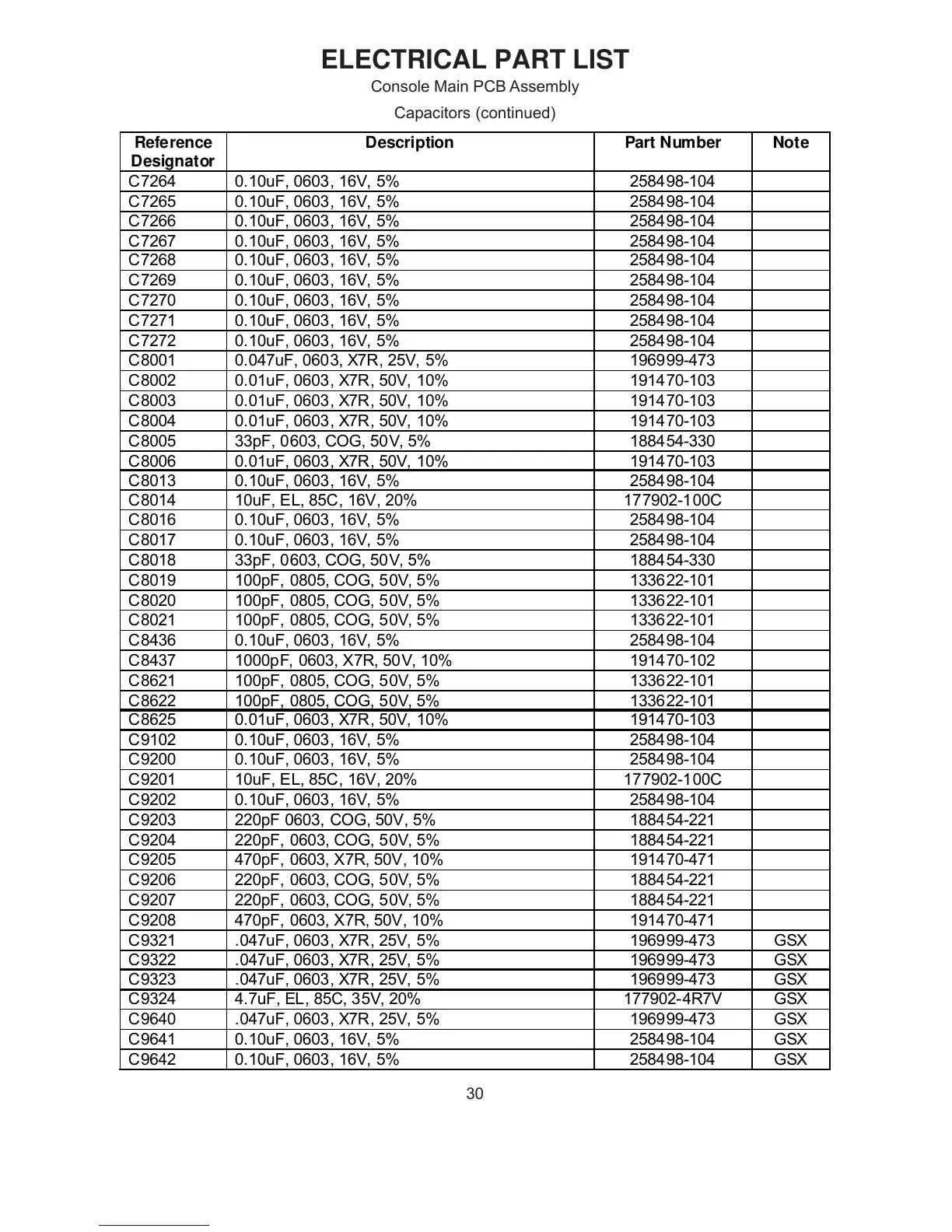

ELECTRICAL PART LIST
Capacitors (continued)
Console Main PCB Assembly
Reference
Designator
Description Part Number Note
C7264 0.10uF, 0603, 16V, 5% 258498-104
C7265 0.10uF, 0603, 16V, 5% 258498-104
C7266 0.10uF, 0603, 16V, 5% 258498-104
C7267 0.10uF, 0603, 16V, 5% 258498-104
C7268 0.10uF, 0603, 16V, 5% 258498-104
C7269 0.10uF, 0603, 16V, 5% 258498-104
C7270 0.10uF, 0603, 16V, 5% 258498-104
C7271 0.10uF, 0603, 16V, 5% 258498-104
C7272 0.10uF, 0603, 16V, 5% 258498-104
C8001 0.047uF, 0603, X7R, 25V, 5% 196999-473
C8002 0.01uF, 0603, X7R, 50V, 10% 191470-103
C8003 0.01uF, 0603, X7R, 50V, 10% 191470-103
C8004 0.01uF, 0603, X7R, 50V, 10% 191470-103
C8005 33pF, 0603, COG, 50V, 5% 188454-330
C8006 0.01uF, 0603, X7R, 50V, 10% 191470-103
C8013 0.10uF, 0603, 16V, 5% 258498-104
C8014 10uF, EL, 85C, 16V, 20% 177902-100C
C8016 0.10uF, 0603, 16V, 5% 258498-104
C8017 0.10uF, 0603, 16V, 5% 258498-104
C8018 33pF, 0603, COG, 50V, 5% 188454-330
C8019 100pF, 0805, COG, 50V, 5% 133622-101
C8020 100pF, 0805, COG, 50V, 5% 133622-101
C8021 100pF, 0805, COG, 50V, 5% 133622-101
C8436 0.10uF, 0603, 16V, 5% 258498-104
C8437 1000pF, 0603, X7R, 50V, 10% 191470-102
C8621 100pF, 0805, COG, 50V, 5% 133622-101
C8622 100
p
F, 0805, COG, 50V, 5% 133622-101
C8625 0.01uF, 0603, X7R, 50V, 10% 191470-103
C9102 0.10uF, 0603, 16V, 5% 258498-104
C9200 0.10uF, 0603, 16V, 5% 258498-104
C9201 10uF, EL, 85C, 16V, 20% 177902-100C
C9202 0.10uF, 0603, 16V, 5% 258498-104
C9203 220pF 0603, COG, 50V, 5% 188454-221
C9204 220pF, 0603, COG, 50V, 5% 188454-221
C9205 470pF, 0603, X7R, 50V, 10% 191470-471
C9206 220pF, 0603, COG, 50V, 5% 188454-221
C9207 220pF, 0603, COG, 50V, 5% 188454-221
C9208 470pF, 0603, X7R, 50V, 10% 191470-471
C9321 .047uF, 0603, X7R, 25V, 5% 196999-473 GSX
C9322 .047uF, 0603, X7R, 25V, 5% 196999-473 GSX
C9323 .047uF, 0603, X7R, 25V, 5% 196999-473 GSX
C9324 4.7uF, EL, 85C, 35V, 20% 177902-4R7V GSX
C9640 .047uF, 0603, X7R, 25V, 5% 196999-473 GSX
C9641 0.10uF, 0603, 16V, 5% 258498-104 GSX
C9642 0.10uF, 0603, 16V, 5% 258498-104 GSX
