31
Inductors

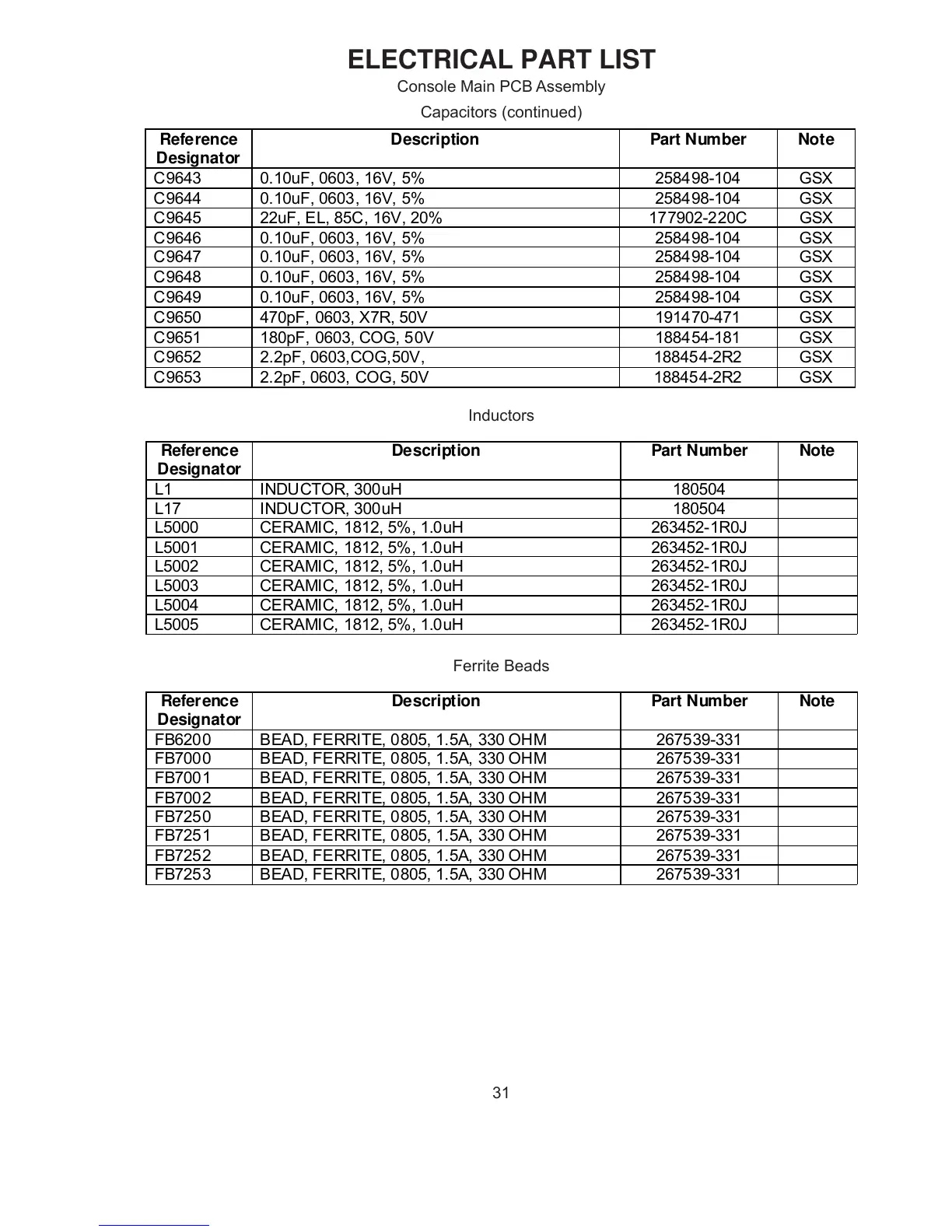

ELECTRICAL PART LIST
Console Main PCB Assembly
Ferrite Beads
Capacitors (continued)
Reference
Designator
Description Part Number Note
C9643 0.10uF, 0603, 16V, 5% 258498-104 GSX
C9644 0.10uF, 0603, 16V, 5% 258498-104 GSX
C9645 22uF, EL, 85C, 16V, 20% 177902-220C GSX
C9646 0.10uF, 0603, 16V, 5% 258498-104 GSX
C9647 0.10uF, 0603, 16V, 5% 258498-104 GSX
C9648 0.10uF, 0603, 16V, 5% 258498-104 GSX
C9649 0.10uF, 0603, 16V, 5% 258498-104 GSX
C9650 470pF, 0603, X7R, 50V 191470-471 GSX
C9651 180pF, 0603, COG, 50V 188454-181 GSX
C9652 2.2pF, 0603,COG,50V, 188454-2R2 GSX
C9653 2.2pF, 0603, COG, 50V 188454-2R2 GSX
Reference
Designator
Description Part Number Note
L1 INDUCTOR, 300uH 180504
L17 INDUCTOR, 300uH 180504
L5000 CERAMIC, 1812, 5%, 1.0uH 263452-1R0J
L5001 CERAMIC, 1812, 5%, 1.0uH 263452-1R0J
L5002 CERAMIC, 1812, 5%, 1.0uH 263452-1R0J
L5003 CERAMIC, 1812, 5%, 1.0uH 263452-1R0J
L5004 CERAMIC, 1812, 5%, 1.0uH 263452-1R0J
L5005 CERAMIC, 1812, 5%, 1.0uH 263452-1R0J
Reference
Designator
Description Part Number Note
FB6200 BEAD, FERRITE, 0805, 1.5A, 330 OHM 267539-331
FB7000 BEAD, FERRITE, 0805, 1.5A, 330 OHM 267539-331
FB7001 BEAD, FERRITE, 0805, 1.5A, 330 OHM 267539-331
FB7002 BEAD, FERRITE, 0805, 1.5A, 330 OHM 267539-331
FB7250 BEAD, FERRITE, 0805, 1.5A, 330 OHM 267539-331
FB7251 BEAD, FERRITE, 0805, 1.5A, 330 OHM 267539-331
FB7252 BEAD, FERRITE, 0805, 1.5A, 330 OHM 267539-331
FB7253 BEAD, FERRITE, 0805, 1.5A, 330 OHM 267539-331
