Bose 3-2-1GS Series II User Manual

32

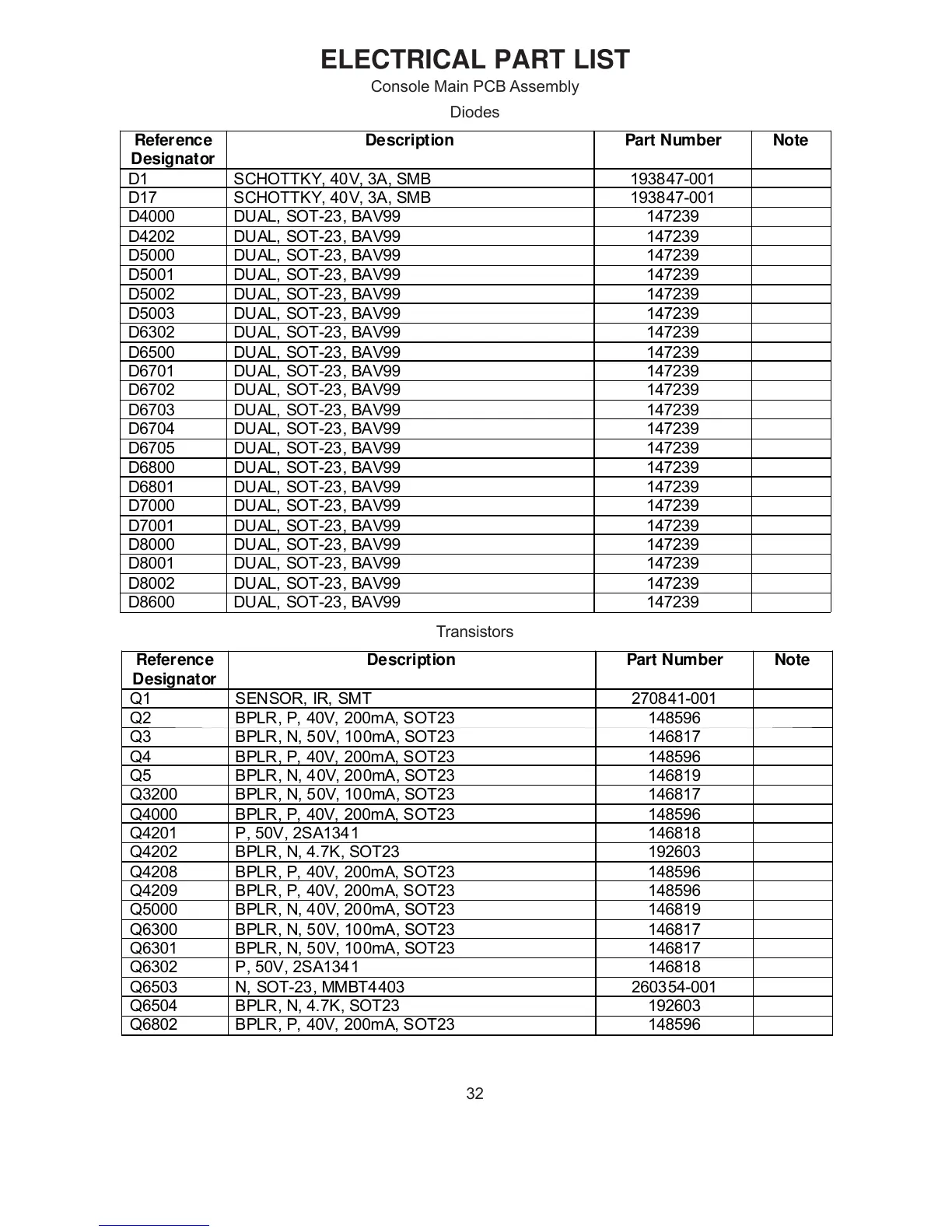

ELECTRICAL PART LIST
Transistors
Console Main PCB Assembly
Diodes
Reference
Designator
Description Part Numbe
r
Note
D1 SCHOTTKY, 40V, 3A, SMB 193847-001
D17 SCHOTTKY, 40V, 3A, SMB 193847-001
D4000 DUAL, SOT-23, BAV99 147239
D4202 DUAL, SOT-23, BAV99 147239
D5000 DUAL, SOT-23, BAV99 147239
D5001 DUAL, SOT-23, BAV99 147239
D5002 DUAL, SOT-23, BAV99 147239
D5003 DUAL, SOT-23, BAV99 147239
D6302 DUAL, SOT-23, BAV99 147239
D6500 DUAL, SOT-23, BAV99 147239
D6701 DUAL, SOT-23, BAV99 147239
D6702 DUAL, SOT-23, BAV99 147239
D6703 DUAL, SOT-23, BAV99 147239
D6704 DUAL, SOT-23, BAV99 147239
D6705 DUAL, SOT-23, BAV99 147239
D6800 DUAL, SOT-23, BAV99 147239
D6801 DUAL, SOT-23, BAV99 147239
D7000 DUAL, SOT-23, BAV99 147239
D7001 DUAL, SOT-23, BAV99 147239
D8000 DUAL, SOT-23, BAV99 147239
D8001 DUAL, SOT-23, BAV99 147239
D8002 DUAL, SOT-23, BAV99 147239
D8600 DUAL, SOT-23, BAV99 147239
Reference
Designator
Description Part Numbe
r
Note
Q1 SENSOR, IR, SMT 270841-001
Q2 BPLR, P, 40V, 200mA, SOT23 148596
Q3 BPLR, N, 50V, 100mA, SOT23 146817
Q4 BPLR, P, 40V, 200mA, SOT23 148596
Q5 BPLR, N, 40V, 200mA, SOT23 146819
Q3200 BPLR, N, 50V, 100mA, SOT23 146817
Q4000 BPLR, P, 40V, 200mA, SOT23 148596
Q4201 P, 50V, 2SA1341 146818
Q4202 BPLR, N, 4.7K, SOT23 192603
Q4208 BPLR, P, 40V, 200mA, SOT23 148596
Q4209 BPLR, P, 40V, 200mA, SOT23 148596
Q5000 BPLR, N, 40V, 200mA, SOT23 146819
Q6300 BPLR, N, 50V, 100mA, SOT23 146817
Q6301 BPLR, N, 50V, 100mA, SOT23 146817
Q6302 P, 50V, 2SA1341 146818
Q6503 N, SOT-23, MMBT4403 260354-001
Q6504 BPLR, N, 4.7K, SOT23 192603
Q6802 BPLR, P, 40V, 200mA, SOT23 148596
