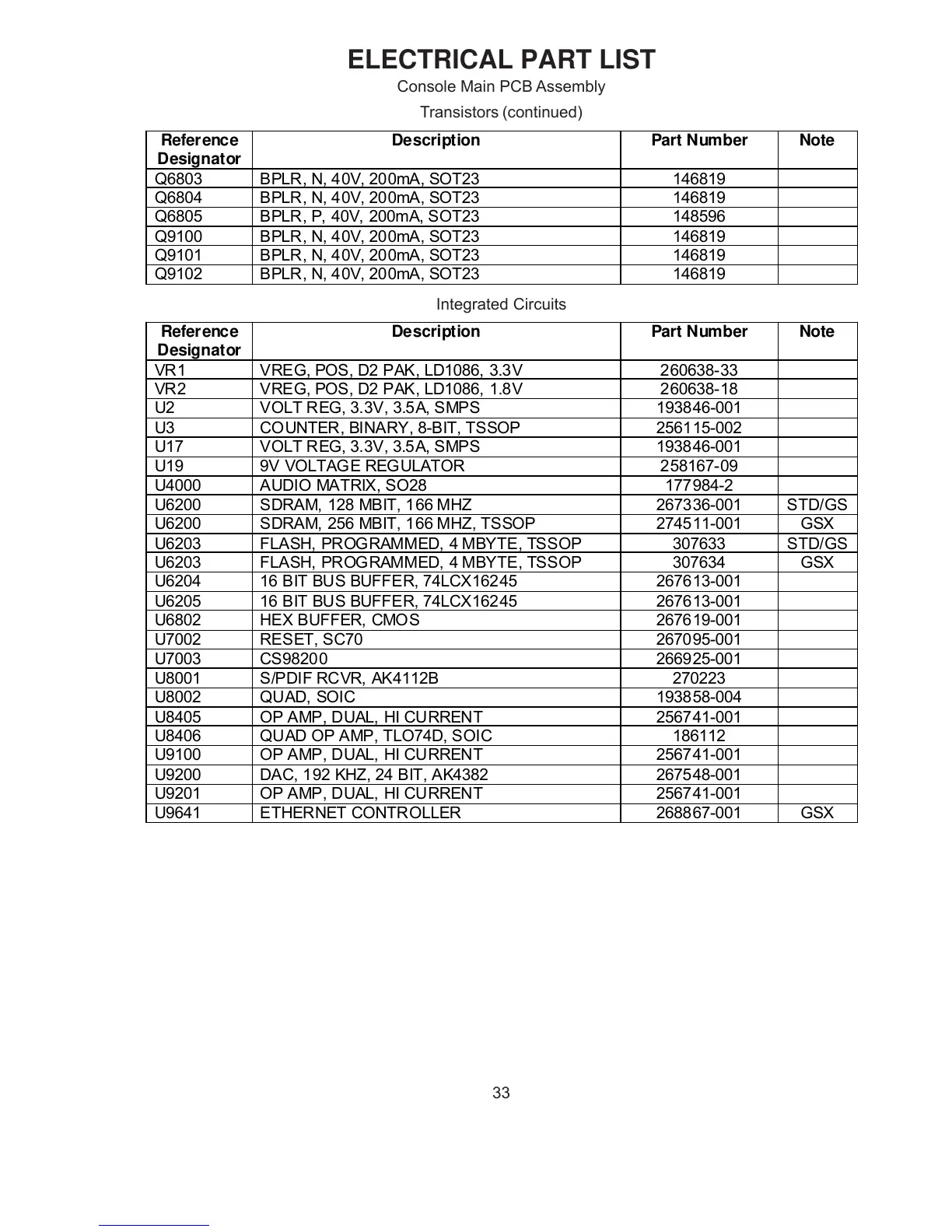

ELECTRICAL PART LIST
Console Main PCB Assembly
Integrated Circuits
Transistors (continued)
Reference
Designator
Description Part Numbe
r
Note
Q6803 BPLR, N, 40V, 200mA, SOT23 146819
Q6804 BPLR, N, 40V, 200mA, SOT23 146819
Q6805 BPLR, P, 40V, 200mA, SOT23 148596
Q9100 BPLR, N, 40V, 200mA, SOT23 146819
Q9101 BPLR, N, 40V, 200mA, SOT23 146819
Q9102 BPLR, N, 40V, 200mA, SOT23 146819
Reference
Designator
Description Part Numbe
r
Note
VR1 VREG, POS, D2 PAK, LD1086, 3.3V 260638-33
VR2 VREG, POS, D2 PAK, LD1086, 1.8V 260638-18
U2 VOLT REG, 3.3V, 3.5A, SMPS 193846-001
U3 COUNTER, BINARY, 8-BIT, TSSO
P
256115-002
U17 VOLT REG, 3.3V, 3.5A, SMPS 193846-001
U19 9V VOLTAGE REGULATOR 258167-09
U4000 AUDIO MATRIX, SO28 177984-2
U6200 SDRAM, 128 MBIT, 166 MHZ 267336-001 STD/GS
U6200 SDRAM, 256 MBIT, 166 MHZ, TSSOP 274511-001 GSX
U6203 FLASH, PROGRAMMED, 4 MBYTE, TSSO
P
307633 STD/GS
U6203 FLASH, PROGRAMMED, 4 MBYTE, TSSOP 307634 GSX
U6204 16 BIT BUS BUFFER, 74LCX16245 267613-001
U6205 16 BIT BUS BUFFER, 74LCX16245 267613-001
U6802 HEX BUFFER, CMOS 267619-001
U7002 RESET, SC70 267095-001
U7003 CS98200 266925-001
U8001 S/PDIF RCVR, AK4112B 270223
U8002 QUAD, SOIC 193858-004
U8405 OP AMP, DUAL, HI CURRENT 256741-001
U8406 QUAD OP AMP, TLO74D, SOIC 186112
U9100 OP AMP, DUAL, HI CURRENT 256741-001
U9200 DAC, 192 KHZ, 24 BIT, AK4382 267548-001
U9201 OP AMP, DUAL, HI CURRENT 256741-001
U9641 ETHERNET CONTROLLER 268867-001 GSX
