Bose 3-2-1GS Series II User Manual

34
Miscellaneous

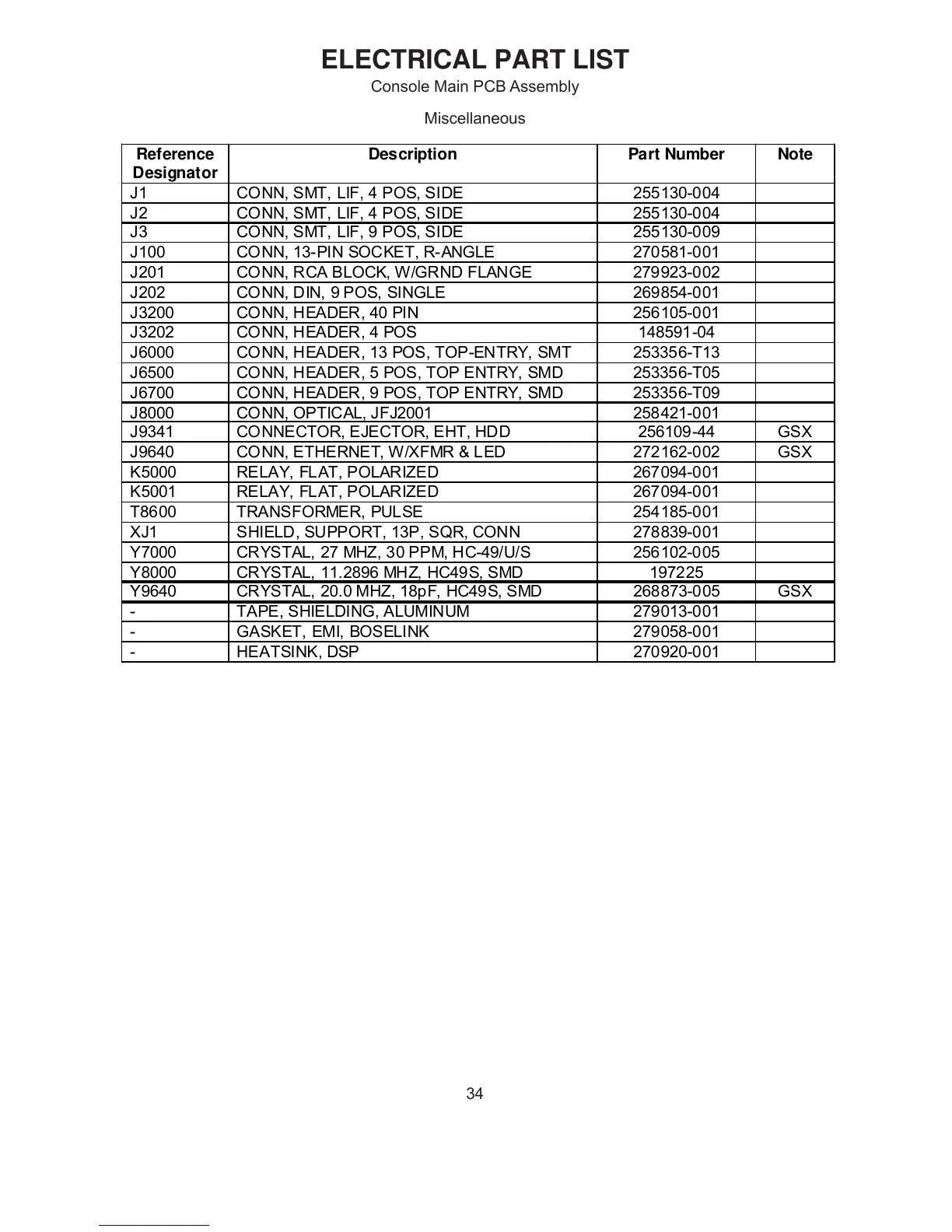

ELECTRICAL PART LIST
Console Main PCB Assembly
Reference
Designator
Description Part Number Note
J1 CONN, SMT, LIF, 4 POS, SIDE 255130-004
J2 CONN, SMT, LIF, 4 POS, SIDE 255130-004
J3 CONN, SMT, LIF, 9 POS, SIDE 255130-009
J100 CONN, 13-PIN SOCKET, R-ANGLE 270581-001
J201 CONN, RCA BLOCK, W/GRND FLANGE 279923-002
J202 CONN, DIN, 9 POS, SINGLE 269854-001
J3200 CONN, HEADER, 40 PIN 256105-001
J3202 CONN, HEADER, 4 POS 148591-04
J6000 CONN, HEADER, 13 POS, TOP-ENTRY, SMT 253356-T13
J6500 CONN, HEADER, 5 POS, TOP ENTRY, SMD 253356-T05
J6700 CONN, HEADER, 9 POS, TOP ENTRY, SMD 253356-T09
J8000 CONN, OPTICAL, JFJ2001 258421-001
J9341 CONNECTOR, EJECTOR, EHT, HDD 256109-44 GSX
J9640 CONN, ETHERNET, W/XFMR & LED 272162-002 GSX
K5000 RELAY, FLAT, POLARIZED 267094-001
K5001 RELAY, FLAT, POLARIZED 267094-001
T8600 TRANSFORMER, PULSE 254185-001
XJ1 SHIELD, SUPPORT, 13P, SQR, CONN 278839-001
Y7000 CRYSTAL, 27 MHZ, 30 PPM, HC-49/U/S 256102-005
Y8000 CRYSTAL, 11.2896 MHZ, HC49S, SMD 197225
Y9640 CRYSTAL, 20.0 MHZ, 18pF, HC49S, SMD 268873-005 GSX
- TAPE, SHIELDING, ALUMINUM 279013-001
- GASKET, EMI, BOSELINK 279058-001
- HEATSINK, DSP 270920-001
