Bose 3-2-1GS Series II User Manual

45

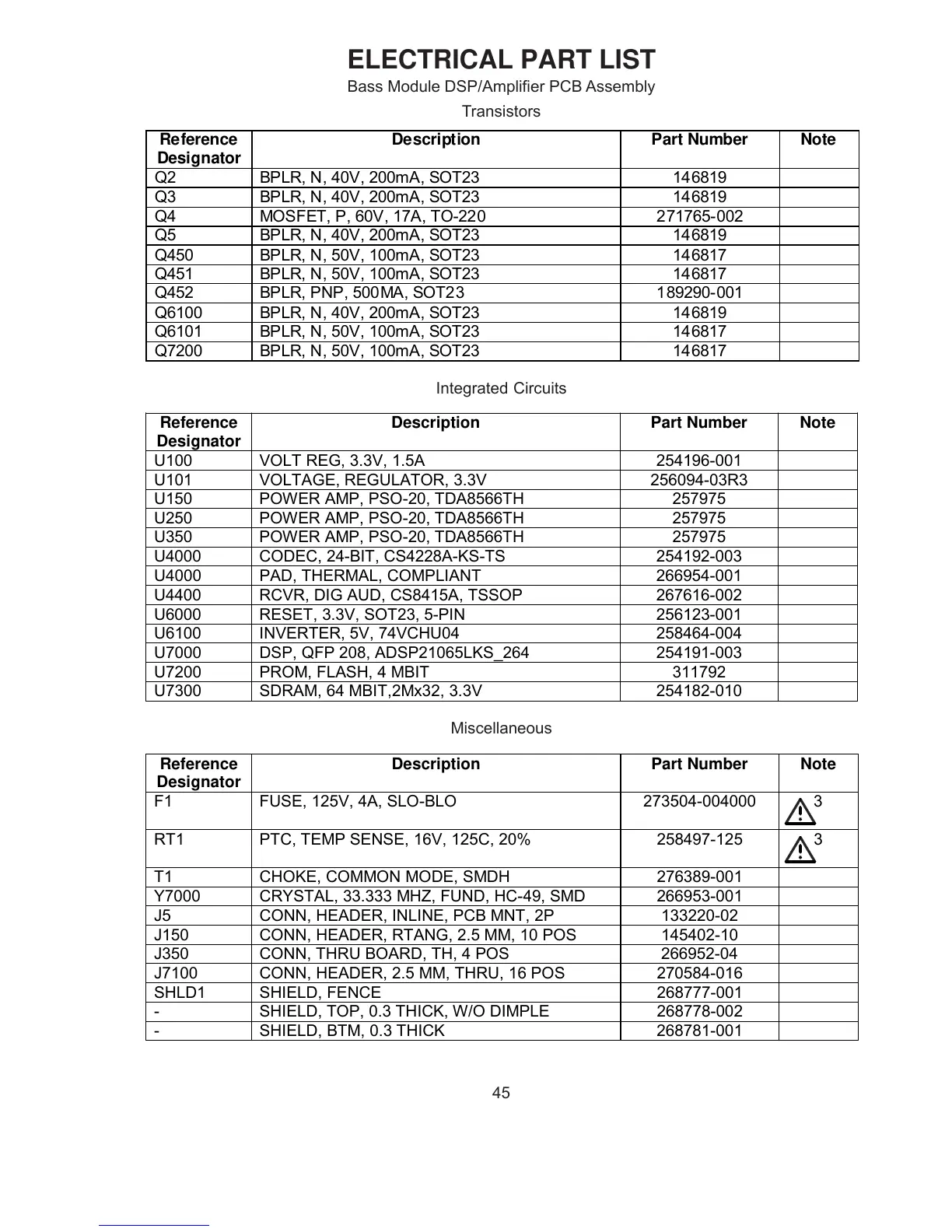

ELECTRICAL PART LIST
Bass Module DSP/Amplifier PCB Assembly
Transistors
Integrated Circuits
Miscellaneous
Reference
Designator
Description Part Numbe
r
Note
Q2 BPLR, N, 40V, 200mA, SOT23 146819
Q3 BPLR, N, 40V, 200mA, SOT23 146819
Q4 MOSFET, P, 60V, 17A, TO-220 271765-002
Q5 BPLR, N, 40V, 200mA, SOT23 146819
Q450 BPLR, N, 50V, 100mA, SOT23 146817
Q451 BPLR, N, 50V, 100mA, SOT23 146817
Q452 BPLR, PNP, 500MA, SOT23 189290-001
Q6100 BPLR, N, 40V, 200mA, SOT23 146819
Q6101 BPLR, N, 50V, 100mA, SOT23 146817
Q7200 BPLR, N, 50V, 100mA, SOT23 146817
Reference
Designator
Description Part Number Note
F1 FUSE, 125V, 4A, SLO-BLO 273504-004000 3
RT1 PTC, TEMP SENSE, 16V, 125C, 20% 258497-125 3
T1 CHOKE, COMMON MODE, SMDH 276389-001
Y7000 CRYSTAL, 33.333 MHZ, FUND, HC-49, SMD 266953-001
J5 CONN, HEADER, INLINE, PCB MNT, 2P 133220-02
J150 CONN, HEADER, RTANG, 2.5 MM, 10 POS 145402-10
J350 CONN, THRU BOARD, TH, 4 POS 266952-04
J7100 CONN, HEADER, 2.5 MM, THRU, 16 POS 270584-016
SHLD1 SHIELD, FENCE 268777-001
- SHIELD, TOP, 0.3 THICK, W/O DIMPLE 268778-002
- SHIELD, BTM, 0.3 THICK 268781-001
Reference
Designator
Description Part Number Note
U100 VOLT REG, 3.3V, 1.5A 254196-001
U101 VOLTAGE, REGULATOR, 3.3V 256094-03R3
U150 POWER AMP, PSO-20, TDA8566TH 257975
U250 POWER AMP, PSO-20, TDA8566TH 257975
U350 POWER AMP, PSO-20, TDA8566TH 257975
U4000 CODEC, 24-BIT, CS4228A-KS-TS 254192-003
U4000 PAD, THERMAL, COMPLIANT 266954-001
U4400 RCVR, DIG AUD, CS8415A, TSSOP 267616-002
U6000 RESET, 3.3V, SOT23, 5-PIN 256123-001
U6100 INVERTER, 5V, 74VCHU04 258464-004
U7000 DSP, QFP 208, ADSP21065LKS_264 254191-003
U7200 PROM, FLASH, 4 MBIT 311792
U7300 SDRAM, 64 MBIT,2Mx32, 3.3V 254182-010
