Bose 3-2-1GS Series II User Manual

44

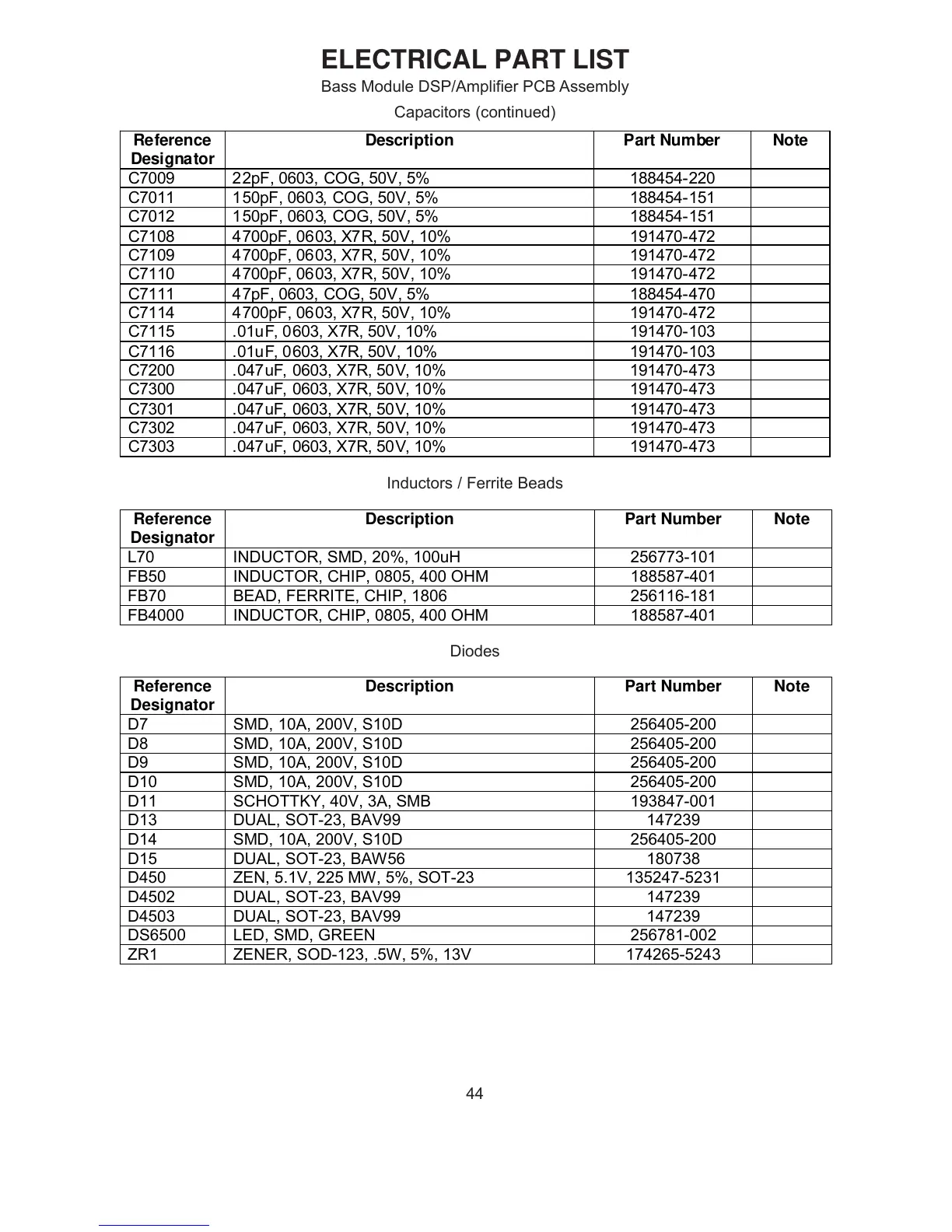

ELECTRICAL PART LIST
Bass Module DSP/Amplifier PCB Assembly
Capacitors (continued)
Inductors / Ferrite Beads
Diodes
Reference
Designator
Description Part Number Note
L70 INDUCTOR, SMD, 20%, 100uH 256773-101
FB50 INDUCTOR, CHIP, 0805, 400 OHM 188587-401
FB70 BEAD, FERRITE, CHIP, 1806 256116-181
FB4000 INDUCTOR, CHIP, 0805, 400 OHM 188587-401
Reference
Designator
Description Part Number Note
D7 SMD, 10A, 200V, S10D 256405-200
D8 SMD, 10A, 200V, S10D 256405-200
D9 SMD, 10A, 200V, S10D 256405-200
D10 SMD, 10A, 200V, S10D 256405-200
D11 SCHOTTKY, 40V, 3A, SMB 193847-001
D13 DUAL, SOT-23, BAV99 147239
D14 SMD, 10A, 200V, S10D 256405-200
D15 DUAL, SOT-23, BAW56 180738
D450 ZEN, 5.1V, 225 MW, 5%, SOT-23 135247-5231
D4502 DUAL, SOT-23, BAV99 147239
D4503 DUAL, SOT-23, BAV99 147239
DS6500 LED, SMD, GREEN 256781-002
ZR1 ZENER, SOD-123, .5W, 5%, 13V 174265-5243
Reference
Designator
Descriptio
n
Part Numbe
r
Note
C7009 22
p
F, 0603, COG, 50V, 5% 188454-220
C7011 150pF, 0603, COG, 50V, 5% 188454-151
C7012 150pF, 0603, COG, 50V, 5% 188454-151
C7108 4700
p
F, 0603, X7R, 50V, 10% 191470-472
C7109 4700pF, 0603, X7R, 50V, 10% 191470-472
C7110 4700pF, 0603, X7R, 50V, 10% 191470-472
C7111 47
p
F, 0603, COG, 50V, 5% 188454-470
C7114 4700pF, 0603, X7R, 50V, 10% 191470-472
C7115 .01uF, 0603, X7R, 50V, 10% 191470-103
C7116 .01uF, 0603, X7R, 50V, 10% 191470-103
C7200 .047uF, 0603, X7R, 50V, 10% 191470-473
C7300 .047uF, 0603, X7R, 50V, 10% 191470-473
C7301 .047uF, 0603, X7R, 50V, 10% 191470-473
C7302 .047uF, 0603, X7R, 50V, 10% 191470-473
C7303 .047uF, 0603, X7R, 50V, 10% 191470-473
